VEVOR SL-1930 Manual

VEVOR SL-1930 Manual

Battery pressing tool
Hide thumbs

Advertisement

Quick Links

Download this manual
Technical Support and E-Warranty Certificate www.vevor.com/support
BATTERY PRESSING TOOL
MODEL: SL-1930
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SL-1930 and is the answer not in the manual?

Questions and answers

Related Manuals for VEVOR SL-1930

Summary of Contents for VEVOR SL-1930

  • Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support BATTERY PRESSING TOOL MODEL: SL-1930 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
  • Page 2 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

  • Page 3: Important Safety Information

    SAVE THIS MANUAL Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the month and year of purchase. Keep this manual and the receipt in a safe and dry place for future reference.

  • Page 4: Work Area Safety

    1. Work area safety a. Keep work area clean and clear. Cluttered or dark areas invite accidents. b. This tool is not insulated; please do not use it on live conductor. c. Please do not use or store the tool under high temperature, or one surrounding filling with corrosive fluid.

  • Page 5: Personal Safety

    j. Do not disassemble the battery and charger. If any problems please contact with manufacture or agent. 3. Personal safety a. Stay alert, watch what you are doing and use common sense when operating the tool. Do not use the tool while you are tired or still under the influence of drugs, alcohol or medication.

  • Page 6: Understand Your Tool

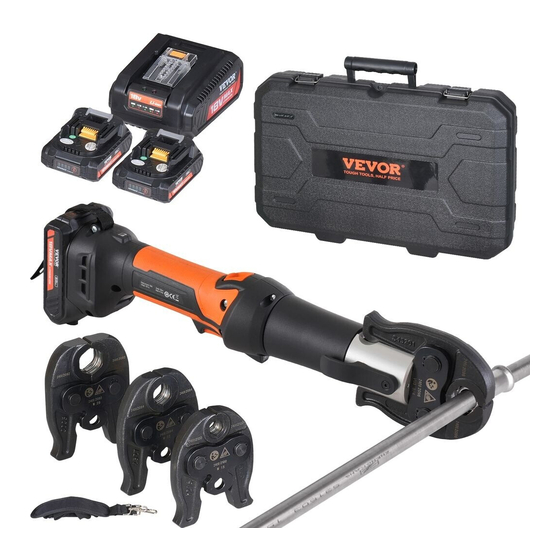

    UNDERSTAND YOUR TOOL SL-1930 is a tool for pressing Stainless steel pipe, Copper pipe, XPAP, PEX pipe with fittings. It is powered by Li-ion, actuated by motor and controlled by MCU. With a high pressure hydraulic system, it is a perfect tool to be used in plumbing and heating installations.

  • Page 7: Specification

    1. Specification Rated pressure: 19kN Stroke 30mm Stainless steel pipe:12-35mm (1/2”-1”) Copper pipe:12-35mm (1/2”-1”) Pex pipe. XPAP:16-40mm Pressing range: Please carefully check the required pipe fitting size and matching mold clamp on the promotional website when applying for purchase Oil capacity: 35ml Hydraulic oil: Shell Tellus S2V HV15...

  • Page 8: Description Of Components

    2. Description of components: Parts No. Description Function For pressing, interchangeable jaw Serial NO. For record Security icon For warning Pin handle For fixing pressing jaw Sheath For preventing finger or other parts injuries LED indicator For illumination Trigger For starting operation For manual retracting the piston in case of an incorrect Retract button operation.

  • Page 9: Function Description

    3. Function description Micro computer control system-automatically detects the pressure when in working with double safety protect. OLED display - Dot matrix OLED display, which shows working times, battery power, working pressure (if equipped with pressure sensor), maintenance reminding and fault code. Auto reset- Release the pressure automatically, retract the piston to the starting position when reached the max output.
  • Page 10 Table 1 Signal Instruction and Meaning: Series Instruction OLED screen What it means (red) ¤¤ Self-checking to ¤¤ Self-checking (2Hz) assure everything is (2Hz) (green) ¤ Enter the working Light (5min) state, the battery is Timeout 5 (white) full minutes off Showing “Low battery”...
  • Page 11 Tool doesn’t release Hydraulic pressure ◎◎◎ system ¤¤¤¤¤ automatically when ◎◎ Malfunction (5s) working over 2mins, reload battery Motor surface High temperature is too ◎◎◎ ¤¤¤¤ temperature high, waiting for ◎ warning (2Hz) cooling to restart the tool Auto-protection Dangerous when press the start ◎◎◎...
  • Page 12 The detail of the charging information, please refer the manual (MANUAL FOR CHARGER) 1) When use the factory original battery, must charge by the original charger. 4.0Ah / 5.0Ah battery charging current shouldn’t exceed 5A.2.0Ah battery charging current shouldn’t exceed 3.0Ah.The battery will be smoking, burnt, even explode if charge with a non-compliant charger.
  • Page 13 quarter. 4) Do not connect the two poles of the battery with a wire, which is likely to cause electric spark, combustion or even explosion. 5) Do not use the damaged battery or charge it, or it will increase the risk of electric shock.
  • Page 14 Tool LED illuminator: After clicking the start button, the LED illuminator lights on, After the tool is released, the button will automatically turn off after a delay of 20 seconds. Press the start button before installing the battery. When the battery is installed, release the start button and the LED light is off.
  • Page 15 2.2 Operation - 14 -...
  • Page 16 Warning: 1) This tool is a high-pressure, high-strength, heavy-duty appliance. Please follow the instructions and precautions strictly to operate carefully! 2) Before operating, you must check the tool for any damage, aging, missing parts, stuck components, and any other unfavorable factors that threaten safety.
  • Page 17 7) Do not disassemble and assemble tools at will, otherwise tool damage or even personal injury may occur. 8) Do not put your fingers and any part of the human body into the moving parts of the jaws during use, and avoid pointing the tool head at yourself or others. 9) The pressure of the tool should be checked and calibrated regularly.
  • Page 18 CAUTION: 1) The operation staff must have participated in professional training, and the construction engineering company must have the corresponding construction qualification recognized by the state. 2) Pressing tool and pressing jaw are only for the corresponding piping system and fittings. Use of other ways or modified standard accessories for other applications may damage tools and accessories, and may even result in personal injury.
  • Page 19 CAUTION: Improper operation can lead to leaks at the joint 1) Please ensure that the press fitting specifications are the same as the jaw. 2) It should be confirmed that the jaw has been completely closed after the pressing is completed. 3) When pressing, make sure that the jaw along with the pressing tool is properly positioned on the flange of the fitting.
  • Page 20 3.3. Jaw cleaning and maintenance 1) Clean the residue accumulated in the pressing jaws in time. Cleaning the residue can be done with a scouring pad or a steel wool, but it can't be cleaned with something harder (such as sandpaper, filet, etc.), which will accelerate the wear on the edge of the cavity.

  • Page 21: Maintenance And Servicing

    MAINTENANCE AND SERVICING Damaged equipment may cause serious personal injury. Do not use damaged equipment. If abnormal noise or vibration occurs, have the problem corrected before further using. 1. Please note that routine maintenance and inspections can extend the life of your tools.
  • Page 22 LIMITED 2 YEARS WARRANTY We make every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of two years from the date of shipment (90 days if used by a professional contractor or if used as rental equipment).
  • Page 23 Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN. Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730 YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX E-CrossStu GmbH...
  • Page 24 Technical Support and E-Warranty Certificate www.vevor.com/support...
