Summary of Contents for Pulse fitness Dual Multi-Pulley

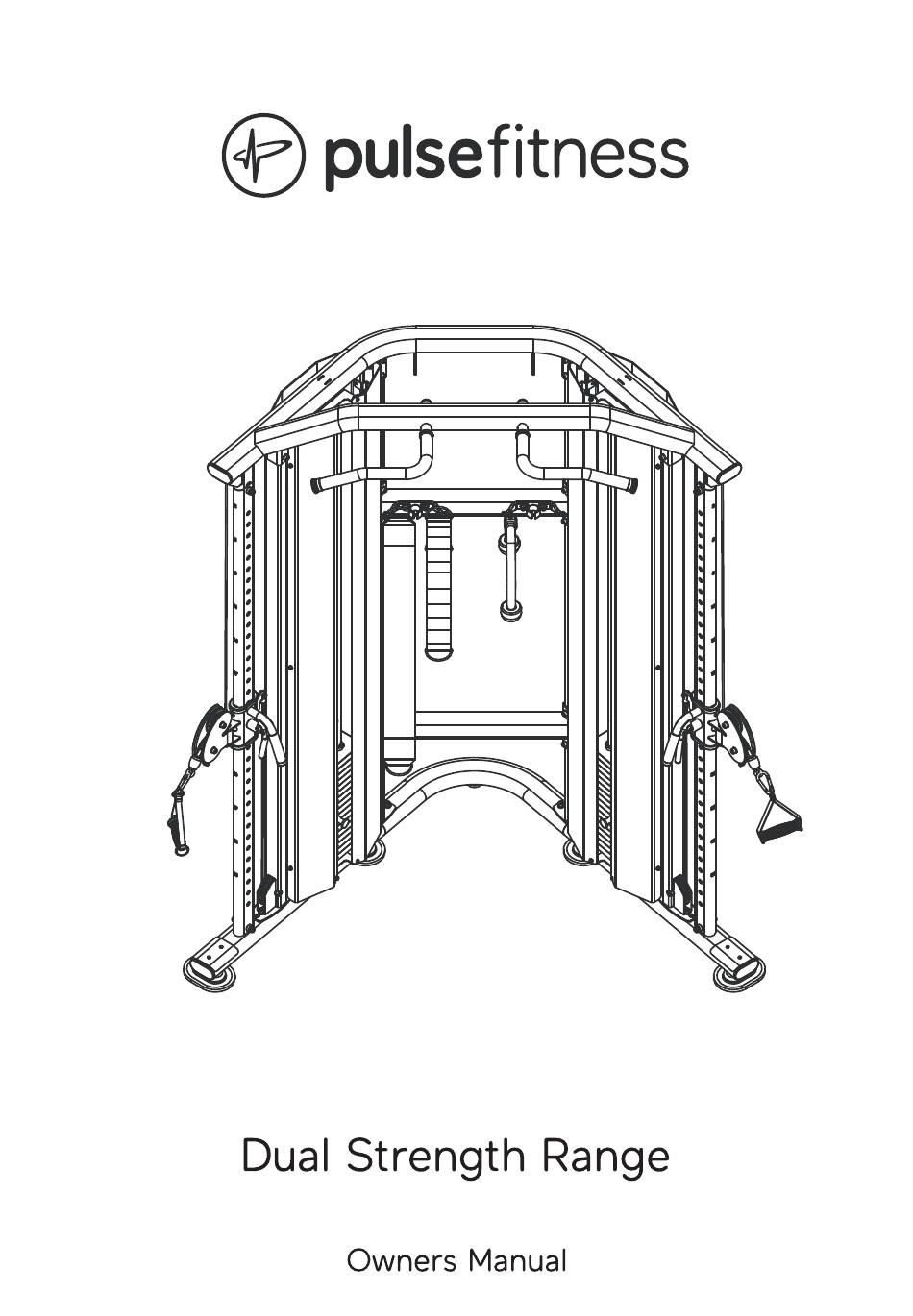

- Page 1 Dual Multi-Pulley 348H...
- Page 5 back shield up frame adjusting tube turning frame front shield floor bend frame...
- Page 8 Step Description Specifications 2 oor frame fl floor bend frame...
- Page 9 Step Description Specifications up frame floor frame front frame back frame up connecting frame down connecting frame left carriage right carriage crash pad socket cap screw M10*30 socket cap screw M10*60 socket cap screw M10*75 socket cap screw M10*80 spring washer flat washer Φ20*Φ10.5*2 big washer...
- Page 10 Step Description Specifications Guide rod fixing frame guide rod down fixed plate on shield crash pad selective pins pulley sets 10LB weight plates 10LB weight plates socket cap screw M8*40 socket cap screw M8*45 flat washer Φ16*Φ8.4*1.6 nylon nut...
- Page 11 Step Description Specifications pulley hanger hexagon nut...
- Page 12 Step Description Specifications up fixed plate on shield pulley sets pulley sets socket cap screw M10*45 socket cap screw M10*50 flat washer Φ20*Φ10.5*2 nylon nut...
- Page 13 Step Description Specifications back shield front shield socket cap screw M6*12 flat washer Φ12*Φ6.4*1.6...
- Page 15 Description Specifications up frame floor frame floor bend frame front frame back frame up connecting frame down connecting frame left carriage right carriage Guide rod fixing frame turning frame pulley hanger selective adjusting frame adjusting tube guide rod back shield front shield up fixed plate on shield down fixed plate on shield...
- Page 16 Description Specifications Hollow pipe sleeves sleeves sets crash pad rubber feet plastic ring round Pipe plug link set selective pins pulley sets 10LB weight plates 10LB weight plates select bar with 17 holes elastic cylindrical pin φ10*45 Roller link head antifriction bearing φ32*φ12*10 Countersunk head blind rivet...
- Page 17 Description Specifications nylon nut nylon nut hexagon nut reed nut M6*27.2*15 reed nut M6*Φ20.8*10...
- Page 21 Weight stack label instructions 1 Wipe front surface of weight stack 2 Peel off back sheet adhesive side from label and make sure that the label remains attached to the application tape 3 Aline the center hole ofl abel with the weight stack center hole 4 Line up the first label to hole on top plate 5 Make sure label is straight and slowly press into place...
- Page 22 9 1 . 13 6 9 1 . 18 1 . 22 7 . 13 6 27 2 31 8 36 3 18 1 . 40 8 45 4 49 9 22 7 . 54 4 27 2 63 5 72 6 .
- Page 24 All information, descriptions and illustrations are given solely as a guide. Actual product specifications may differ due to manufacturing requirements. Pulse Fitness reserve the right to make changes to its products and services, where it considers necessary. Copyright 2025 Pulse Fitness. All rights reserved. Pulse Fitness is part of the Pulse Global company.
