Pulse fitness 206D-AAA Owner's Manual

Free standing ski trainer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Product may vary from image
Free Standing Ski Trainer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 206D-AAA and is the answer not in the manual?

Questions and answers

Related Manuals for Pulse fitness 206D-AAA

Summary of Contents for Pulse fitness 206D-AAA

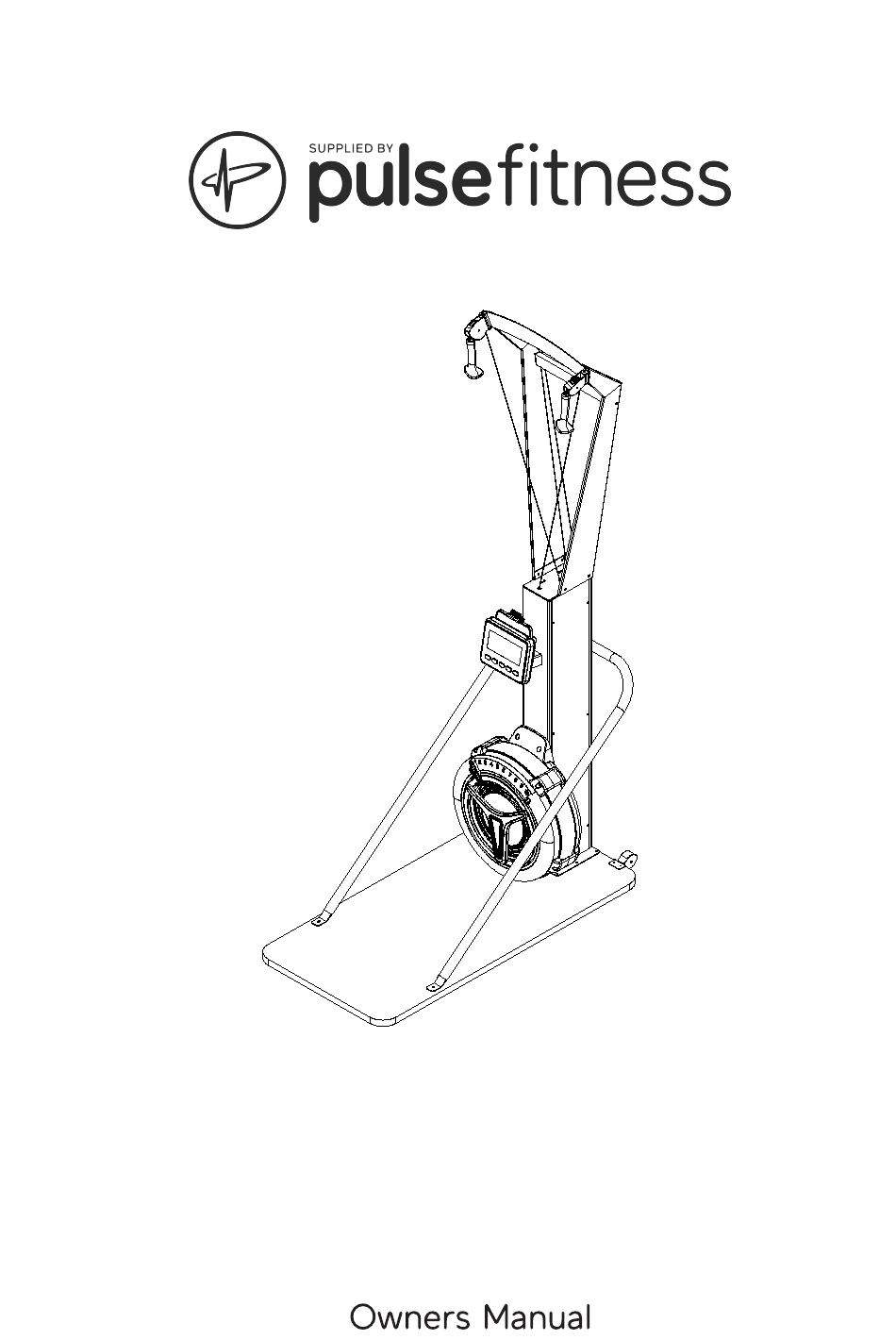

  • Page 1 Product may vary from image Free Standing Ski Trainer...
  • Page 2 Important Safety Information CAUTION Read these instructions carefully before operating equipment in conjunction with individual machine instructions. Seek professional medical advice before using fitness equipment. Heart rate monitoring systems may be inaccurate. Over exercise may result in serious injury or death. If you - feel faint, dizzy or exhausted stop exercising immediately.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Safety Instructions .…………………………..2 Operational Instructions ………..………….20 Before You Begin ……………… ………..…..3 Maintenance ……………………………..…...21 Hardware Identification Chart ………………4 Storage ………………………………..……….22 Assembly Instructions ……………………….7 Product Parts Drawing .………….………….23 Computer Instructions ……………..………14 Part List …………………………………..……24 SAFETY INSTRUCTIONS 1. To reduce the risk of serious injury, read the following Safety Instructions before using the SKI TRAINER.

  • Page 4: Before You Begin

    BEFORE YOU BEGIN Thank you for choosing the SKI TRAINER. The SKI TRAINER provides a convenient and We take great pride in producing this quality simple method to begin your journey of getting product and hope it will provide many hours of your body in shape and achieving a happier and quality exercise to make you feel better，look healthier lifestyle.

  • Page 5: Hardware Identification Chart

    HARDWARE IDENTIFICATION CHART This chart is provided to help identify the hardware used in the assembly process. Place the washers or the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to check the length of the bolts and screws. NOTICE: The length of all bolts and screws, except those with flat heads, is measured from below the head to the end of the bolt or screw.
  • Page 6 Wrench 13-15 Below chart include the EXTRA fasteners for Free Standing Style assembly: Drawing of Parts Part No. Description Button Head Cap Screw, M8 x 50mm Arc Washer M8 Socket Head Cap Screw, M8 x 30mm Flat Washer M8 Allen Wrench 5mm Below chart include the EXTRA fasteners for Wall Mounted Style assembly: Part Drawing of Parts...
  • Page 7 Hex Socket Head Cap Screw, M8X35 Flat Washer M8 Flat Washer, Φ22xΦ9x2.0mm First, take out the Top Bracket (4) and Main Body (1) from Carton (A1). Then take out all the parts in the carton and remove packing materials. Put all the packing materials back in the carton.

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS STEP 1 Attach the Left and Right Upper Arms (2/3) to Main Body (1) by using: 4 PCs of Socket Head Cap Screw, M8x12mm (86) and Flat Washer M8 (71). NOTE: DO NOT fully tighten bolts at this step. STEP 2 Attach the Arm Connection Bracket (5) to Left and Right Upper Arms (2/3) by using: 2 PCs of Socket Head Cap Screw, M8x15mm (87) and Flat Washer M8 (71).
  • Page 9 ASSEMBLY INSTRUCTIONS STEP 3 Attach the Top Bracket (4) to Left and Right Upper Arms (2/3) by using: 4 PCs of Socket Head Cap Screw, M8x12mm (86) and Flat Washer M8 (71). #89 Allen Wrench 6mm #86 M8X12mm 4PCS #71 M8 4PCS...
  • Page 10 ASSEMBLY INSTRUCTIONS STEP 4 Make the assembly stand up. Tighten the Left and Right Upper Arms (2/3) to Main Body (1) by using: 2 PCs of Socket Head Cap Screw, M8x12mm (86) and Flat Washer M8 (71). NOTE: Fully tighten bolts at end of this step. STEP 5 Remove the clicker from the Drive Cord (52).
  • Page 11 ASSEMBLY INSTRUCTIONS STEP 6 Attach the Console Monitor (14) to the console mounting bracket on Main Body (1) by using: 1 PC of Button Head Cap Screw, M8x75mm (82), Flat Washer M8 (71), and Nylon Nut M8 (72). STEP 7 Connect Sensor Cable (17) into the back of the Console Monitor (14a).
  • Page 12 ASSEMBLY INSTRUCTIONS STEP 8 Attach the Main Body (1) to Wooden Base (18) by using: 4 PCs of Socket Head Cap Screw, M8x30mm (83) and Flat Washer M8 (71). #83 M8X30mm 4PCS #71 M8 4PCS #89 Allen Wrench 6mm...
  • Page 13 ASSEMBLY INSTRUCTIONS STEP 9 Attach the U-bar Bracket (6) to Main Body (1) using: 2 PCs of Button Head Cap Screw, M8x50mm (84), Arc washer M8 (85), and 1 PC of U-bar Bracket Cushion (42). #84 M8X50mm 2PCS #85 M8 2PCS #90 Allen Wrench 5mm...
  • Page 14 ASSEMBLY INSTRUCTIONS STEP 10 Attach the U-bar Bracket (6) to Wooden Base (18) by using: 2 PCs of Socket Head Cap Screw, M8x30mm (83) and Flat Washer M8 (71). Tighten all screws on the U-bar Bracket (6). #83 M8X30mm 2PCS #71 M8 2PCS #89 Allen Wrench 6mm...

  • Page 15: Computer Instructions

    COMPUTER INSTRUCTIONS Front View Back View Smartphone Holder Ba�eries Cover Sensor Cable Plugin Operates on 2 size C Your SKI TRAINER u�lizes an air fan system to create resistance for your workout. We recommend that you use this computer console to vary your workout from session to session and note your progress toward your fitness goals.
  • Page 16 COMPUTER INSTRUCTIONS Func�on Bu�ons BACK BUTTON: - When selec�ng the programs, press the bu�on to return to the previous program. - When you finish a running program, press the bu�on to jump into the IDEL mode. SELECT BUTTON: - In IDLE mode, press and release SELECT to cycle through each program op�on.
  • Page 17 COMPUTER INSTRUCTIONS Console Display BLUETOOTH PULSE STROKE RATE - Display the current stroke per minute - Display Bluetooth icon at the upper - Display the heart rate from 40 to 220 during exercise. side of monitor screen when beats per minute during exercise. To monitor is connected to an app.
  • Page 18 COMPUTER INSTRUCTIONS PROGRAMS The console monitor has 8 programs. Press SELECT to change workout programs according to the following sequence. Quick Start Program > Distance Countdown > Time Countdown > Calories Countdown > Game > 20/10 Interval > 10/20 Interval > 10/10 Customize Interval 1.
  • Page 19 COMPUTER INSTRUCTIONS PROGRAMS The console monitor has 8 programs. Press SELECT to change workout programs according to the following sequence. Quick Start Program > Distance Countdown > Time Countdown > Calories Countdown > Game > 20/10 Interval > 10/20 Interval > 10/10 Customize Interval 5.
  • Page 20 COMPUTER INSTRUCTIONS Please make sure the console is ac�vated in order BLUETOOTH CONNECTION to proceed Bluetooth connec�on with your smart- phone or tablet devices. AVAILABLE APPS Kinomap D-fit ENTER SELECT FTMS PROTOCOL BACK STOP The icon will be displayed at the top right of console screen when it’s connected to an app.

  • Page 21: Operational Instructions

    OPERATIONAL INSTRUCTIONS LOAD ADJUSTMENT There is a Damper (31) built into the Upper Fan Shroud (32). Move the Indicator in the Damper (31) to point to the numbers on the Upper Fan Shroud (32) to adjust the load. There are settings from 1 to 10.

  • Page 22: Maintenance

    MAINTENANCE The safety and integrity designed into the SKI TRAINER can only be maintained when the SKI TRAINER is regularly examined for damage and wear. Special attention should be given to the following: 1. Pull on the Handle (44) and verify that the System provides tension smooth and stable. 2.

  • Page 23: Storage

    STORAGE 1. To store the SKI TRAINER, simply keep it in a clean dry place. 2. To avoid damage to the electronics, remove the batteries from the Console Monitor (14) before storing the SKI TRAINER for one year or more. 3.

  • Page 24: Product Parts Drawing

    PRODUCT PARTS DRAWING...

  • Page 25: Part List

    PARTS LIST Parts No. Description Main Body Left Upper Arm Right Upper Arm Top Bracket Arm Connection Bracket U-bar Bracket Transport Wheel Cover Body Cover (Left/Right) Perforated Steel Mesh Console Pulley Spacer Console Monitor Generator Sensor Cable Wooden Base Fan Axle Bearing 6001RS One Way Bearing HF1212,12t Magnet...
  • Page 26 Upper Fan Shroud Bottom Fan Shroud Steel Plate Bushing 6001 Cable Plug Damper Cap Pulley Cover Pulley Holder Body Upper Cover U-bar Bracket Cushion Generator Base Handle Handle Plug Short Spacer Long Spacer Cord Pulley Spacer Transport Wheel Wooden Base Cushion Bungee Cord (Grey) Drive Cord (White) Socket Head Cap Screw, M5x92mm...
  • Page 27 Cushion Nut M8 Phillips Flat Head Self-Tapping Screw, ST4.2x16mm Socket Head Cap Screw, M8x40mm Phillips Pan Head Self-Tapping Screw, ST4.2x25mm Flat Washer M8 Nylon Nut M8 Button Head Cap Screw, M6x35mm Phillips Truss Head Screw, M6x20mm Nylon Nut M6 Phillips Pan Head Self-Drilling Screw, ST4.2x13mm Phillips Pan Head Self-Tapping Screw, ST3.0x20mm Phillips Truss Head Screw, M5x8mm Hex Nut M8...
  • Page 28 Bungee Cord (for Cell Phone Bracket) Long EVA Glue (for Console Monitor) Short EVA Glue (for Cell Phone Bracket) Socket Head Cap Screw, M6x16mm Spring Washer M6 Fan Decorative Cover Phillips Pan Head Self-Tapping Screw, ST4.2x10mm...
  • Page 29 WARNING. Failure to carry out maintenance on the equipment in this manual could result in serious injury and void your warranty. Please ensure all publications supplied with equipment are read and understood. Replacement of defected components should be carried out IMMEDIATELY and/or keep the defective equipment out of use until repaired.
  • Page 30 All information, descriptions and illustrations are given solely as a guide. Actual product specifications may differ due to manufacturing requirements. Pulse Fitness reserve the right to make changes to its products and services, where it considers necessary. Copyright 2023 Pulse Fitness. All rights reserved. Pulse Fitness is part of the Pulse Global company.
