Levoit LPF-R432-WEU User Manual

EN • English
User Manual
Table of Contents
Package Contents
Specifications
Safety Information
Getting to Know Your Fan
Controls & Display
Remote Control
Getting Started
Using Your Pedestal Fan
Care & Maintenance
Troubleshooting
Warranty Information
Customer Support
Specifications
Model
Power Supply
Timer
Max Speed
Noise Level
Dimensions
Weight
Item
Maximum fan flow rate
Fan power input
Service value
Standby power consumption
Seasonal electricity consumption
Fan sound power level
Maximum air velocity
Measurement standard for service value
Contact details for obtaining more infor-
mation
Note：
•
61dB(A)Lw (sound power level) ≈ 47dB(A)Lpm (the averaged sound pressure level).
•
The maximum air velocity measured on the air outlet is 7.5m/s
•
The fan flow rate is influenced by the type of anemometer used. During testing, ERP employs a 100 mm impeller
anemometer while GTT utilizes a high-sensitivity thermal anemometer. As a result, the fan flow rate measured by ERP
is 27.1 m /min and that measured by GTT is 41.1 m
3
Package Contents
1 x Fan Head
1
1
1 x Base
2
1 x Pole
5
1 x Remote Control
5
1 x Power Adapter
6
1 x Quick Start Guide
6
1 x User Manual
7
9
10
10
11
LPF-R432-WEU
24V 30W
1–12 hr
7.5 m/s
20–52dB
36.5 x 32.0 x 110.8 cm / 14.3 x 12.5 x 43.6 in
5.8 kg / 12.7 lb
Symbol Value
F 27.1
P 28.9
SV 0.9
PSB 0.2
Q 9.5
LWA 61
c 5.9
EN IEC 60879-2019 / EN 50564:2011 /
EN IEC 60704-1:2021 / EN IEC 60704-2-7:2020
VESYNC (SINGAPORE) PTE. LTD.
6 Raffles Quay, #14-06, 048580 Singapore
/min.
3

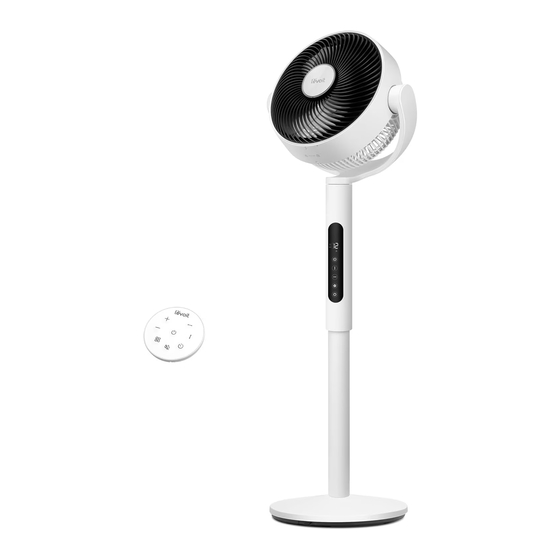

Pedestal Air Circulator Fan
Model: LPF-R432-WEU
Unit
m³/min
W
(m³/min)/W
W
kWh/a
dB(A)
meters/sec
EN
1
