Symmons FSTF5672 Install Manual

Freestanding Tub Filler
Install Guide
Warranty
Limited Lifetime - for residential
installations.
10 Years - for commercial/industrial
installations.
Refer to www.symmons.com/warran-
ty for complete warranty information.

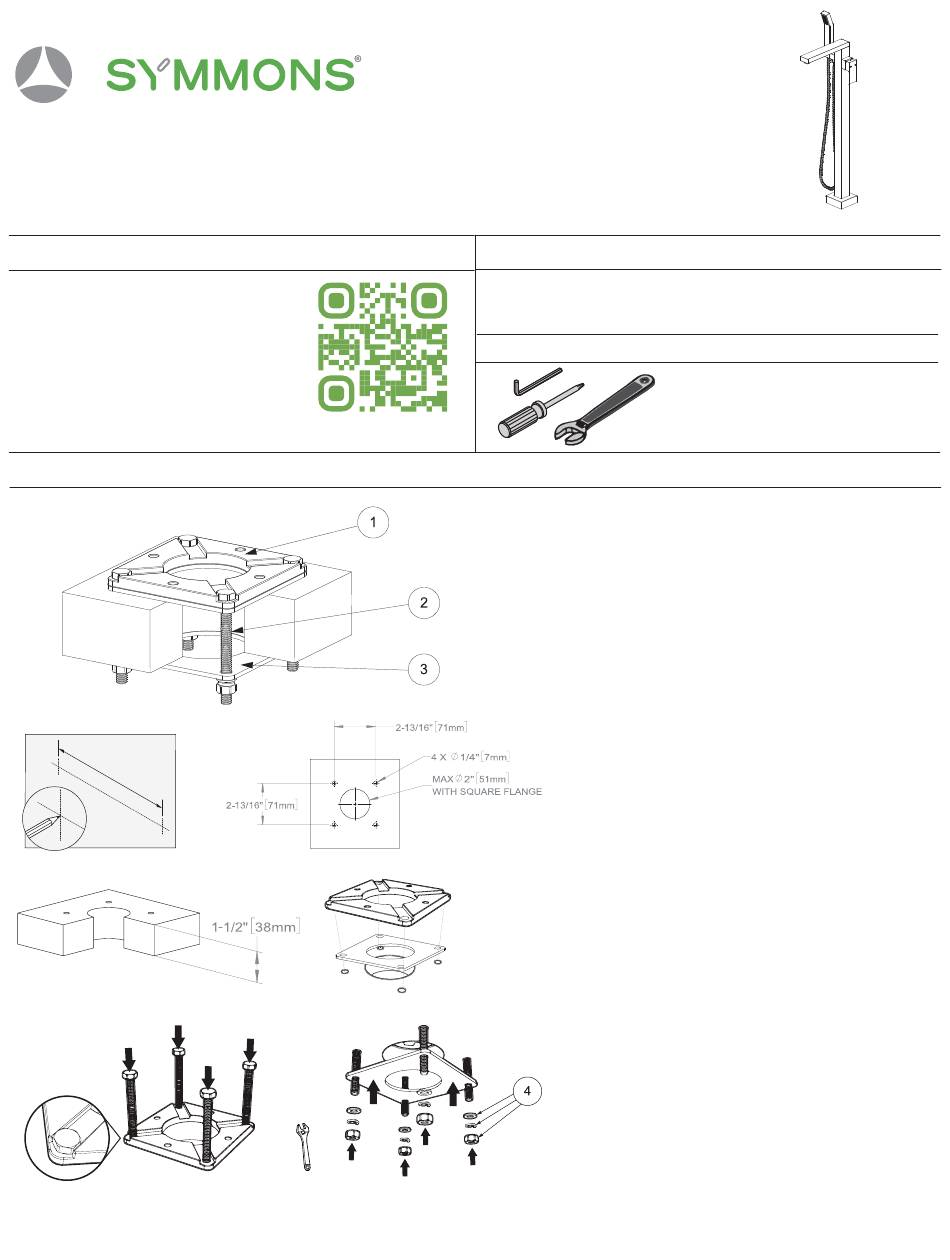

Installation A) Wooden Subfloor With Access Underneath
Figure 1
Figure 2
Figure 4
Figure 6
Figure 3
Figure 5
Figure 7
Section A
Note:
This install guide is applica-
ble for all Symmons free-
standing tub fillers.
Product Care
Clean finished trim area with a soft cloth using mild
soap and water or a non-abrasive cleaner, and then
quickly rinse with water.
Tools Required
Section A:
1. Using the included dimensions (shown in Fig-
ure 3), measure and mark centerlines for the
mounting bracket on the subfloor as shown
in Figure 2 (Max. 1-1/2" thickness as shown in
Figure 4).
2. Using the floor flange (1) as a template, drill
one 2" hole for the piping and four 1/4" holes
for the mounting bolts.
3. Align the holes of the floor flange with the
holes in the floor as shown in Figure 5, and
insert the four mounting bolts (2) as shown
in Figure 6. Ensure that the hex heads of the
bolts lock into the holding recesses in floor
flange.
4. From underneath, install the holding plate (3),
washers, lock washers, and nuts (4) as shown
in Figure 7. Tighten all four nuts securely with
a wrench, in an alternating star pattern for con-
sistent stability.
Reference only
