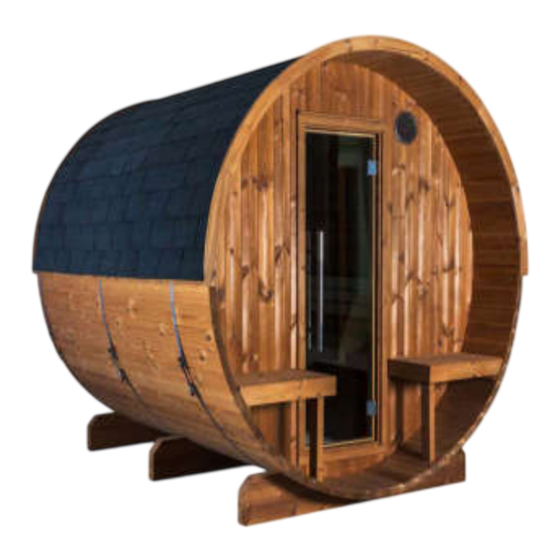

Barrel sauna
Hide thumbs Also See for KASKI-240-P-C:
Table of Contents

Advertisement

Quick Links

Download this manual
Kaski / Kuusi 240
Panorama Canopy
Barrel sauna
Instructions for installation
Ø 220 x 240 cm
Item.no.
KASKI-240-P-C
KUUSI-240-P-C
KASKI-240-P-C Thermo pine
KUUSI-240-P-C Spruce
Vers. 03/25
EN
DE
FR
IT
NL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KASKI-240-P-C and is the answer not in the manual?

Questions and answers

Related Manuals for Harvia KASKI-240-P-C

Summary of Contents for Harvia KASKI-240-P-C

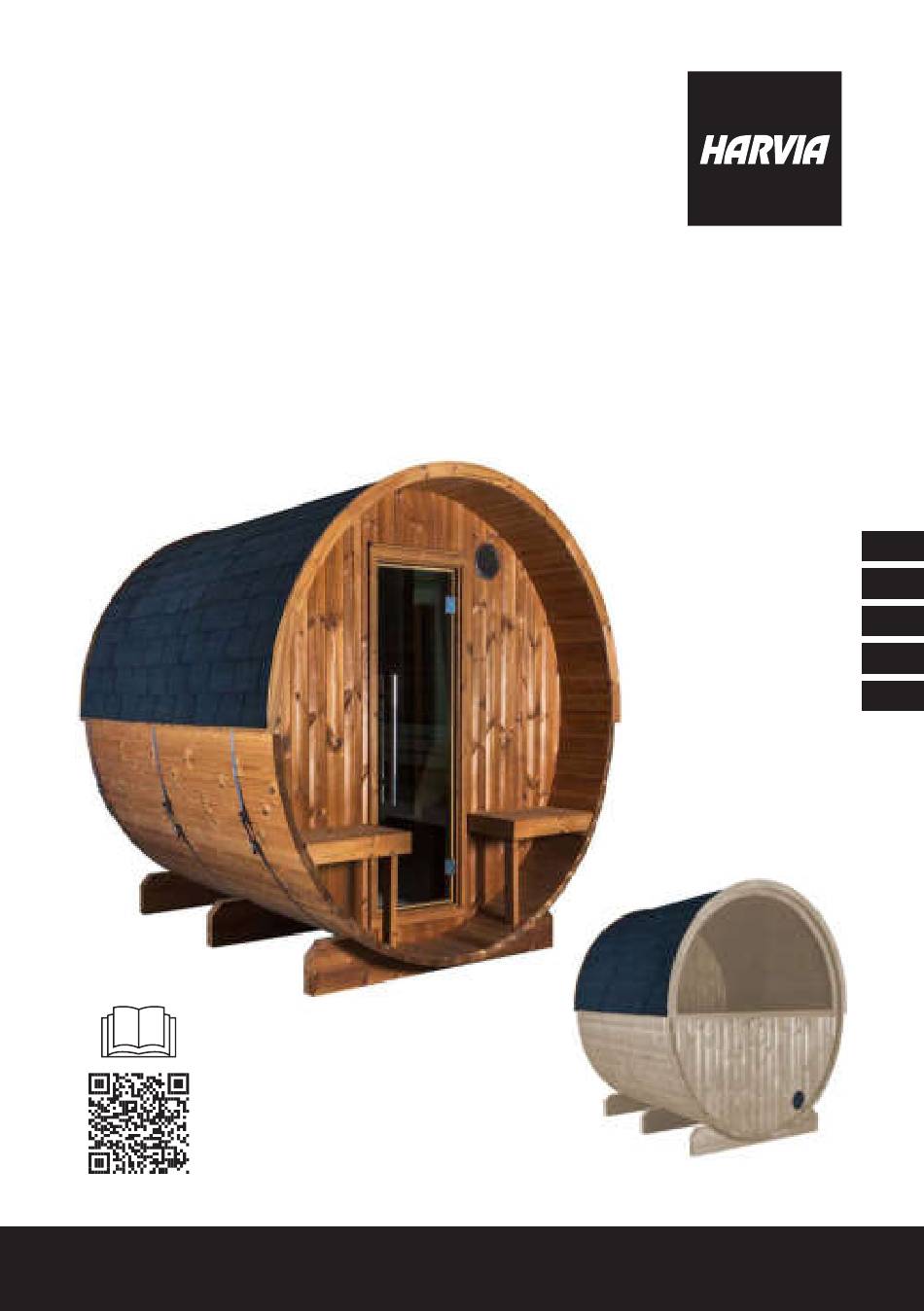

  • Page 1 Kaski / Kuusi 240 Panorama Canopy Barrel sauna Instructions for installation Ø 220 x 240 cm Item.no. KASKI-240-P-C KUUSI-240-P-C KASKI-240-P-C Thermo pine KUUSI-240-P-C Spruce Vers. 03/25...

  • Page 2: Table Of Contents

    Table of Contents 1. Preparing for installation 1.1. Important note 1.2. Foundation 1.3. Anchoring the outdoor sauna 1.4. Tools required 1.5. Maintenance and cleaning 1.6. Disposal 2. Assembling the cabin 2.1. Mounting the feet 2.2. Assembling the barrel staves 2.3. Assembling the front and rear wall 2.4.

  • Page 3: Preparing For Installation

    Read these assembly instructions carefully and keep them within reach. so that you can look up product information at any time. These assembly instructions can also be found in the downloads section of our website: www.mediabank.harvia.com. 1.1. Important note ● Check with your local planning authority (municipal o昀케ce, magistrate) with respect to the building regulations and load standards.

  • Page 4: Foundation

    Assembly instructions p. 4/8 ● When it rains, water can enter - the sauna barrel is not 100% watertight. To drain water from the 昀氀oor, two holes are pre-drilled in the groove for the front and back walls of the lowest stave. These should be open at the bottom after the metal bands have been 昀椀tted, so that the water can drain away. ● Condensation can cause water stains, especially under the glass pane. Dry the barrel sauna regularly by heating it up without infusion or, in the case of a combi heater, using the post-drying program. ● When using an electric sauna heater, please note - The external sauna control unit should be protection class IP65 or - Installation of the external sauna control unit in a protective housing ●...
  • Page 5 Assembly instructions p. 5/8 ● Utility knife ● Ladder ● Saw This symbol indicates tips and useful information Pre-drill Cut to correct size Nailing Carry out wiring Check the right angle: 80 cm Handle glass with care: Special care must be taken with the edges of the glass —hardened glass can shatter into small pieces in the event of impact.

  • Page 6: Maintenance And Cleaning

    Assembly instructions p. 6/8 1.4. Maintenance and cleaning ● The sauna should be cleaned inside with a damp cloth. Only use warm water — no cleaning products. ● We recommend heating the cabin once a month if the sauna is not used for a long time.

  • Page 7: Assembling The Cabin

    Assembly instructions p. 7/8 2. Assembling the cabin ATTENTION! Note the 昀氀oor plan on Page 10 and illustrations from Page 9 onwards. 2.1. Mounting the feet Place the impregnated feet[1,33] on the foundation (see page 9) as shown in the illustration (see page 12). Fix them temporarily with two staves[3a,b]. Make sure that the feet are 昀椀tted parallel to each another. Note the power supply! 2.2. Assembling the barrel staves Start by placing the lower stave[2] in position (with drain – see page 13). Always put the staves together with the round part facing upwards. Lay 昀椀ve staves to the left[3a] and 昀椀ve to the right[3b] and screw to the feet.

  • Page 8: Mounting The Door

    Assembly instructions p. 8/8 Mount the tensioning bands[24] (see page 19). Note that the tension rods[23,25,26,27] are positioned in the lower half of the barrel sauna. Before tensioning the metal bands, remove the screws from the staves. Tighten the metal bands so that there is no visible gap between the staves. This must be checked regularly and retightened if necessary. 2.5. Mounting the door Place the door frame[13,17] in the opening from the inside. Note that the door opens outwards – the door can be attached on the left or on the right. Fix the door in place from the outside using the cover strips[15]. The door handles are screwed from the inside.

  • Page 9: Dimensional Drawing (Following The Last Language Of The Instructions)

    Pictures p. 9/25 1600 1600 1600 1600 1600 1600 1600 1600 1600 1600 1600 1600...

  • Page 10: Floor Plan (Following The Last Language Of The Instructions)

    Pictures p. 10/25 2256 1600 2200...

  • Page 11: Parts List (Following The Last Language Of The Instructions)

    Pictures p. 11/25 2095 x 817 x 65 mm 2157 x 1025 x 65 mm 2160 x 1135 x 40 mm 585 x 332 x 65 mm 2095 x 817 x 65 mm 525 x 133 x 65 mm 1690 x 28 x 28 mm 1660 x 45 x 16 mm 646 x 28 x 28 mm 650 x 45 x 16 mm...

  • Page 12: Assembly Illustrations (Following The Last Language Of The Instructions)

    Pictures p. 12/25 2.1. 36 Pcs. 3,5 x 30 4 x 70 A = B...
  • Page 13 Pictures p. 13/25 2.2. 4 x 70...
  • Page 14 Pictures p. 14/25 4 x 70 2.3. 16 Pcs. 3,5 x 40...
  • Page 15 Pictures p. 15/25 6 Pcs. 3,5 x 50 3 Pcs. 3,5 x 50 4 x 70...
  • Page 16 Pictures p. 16/25 4 x 70 3 x 25 1 1 2 3...
  • Page 17 Pictures p. 17/25 2.4. 4 x 70 4 x 70 Optional 3 x 25 Sensor F1...
  • Page 18 Pictures p. 18/25 3,5 x 50 4 x 70 Optional...
  • Page 19 Pictures p. 19/25 25+26 25+26...
  • Page 20 Pictures p. 20/25 2.5. 12 Pcs. 4 x 60 4 x 60 3,2 x 40 2 x 4 Pcs. 4 x 60 3,2 x 40...
  • Page 21 Pictures p. 21/25 2.6. 8 Pcs. 4 x 70 12 Pcs. 5 x 70 6 Pcs. 3,5 x 40 4 Pcs. 4 x 60 6 Pcs. 3 x 25 8 Pcs. 3,5 x 50...
  • Page 22 Pictures p. 22/25 2.7. 6 Pcs. 4 Pcs. 4 x 60 5 x 100 6 Pcs. 5 x 70 4 Pcs. 4 Pcs. 4 x 60 4 x 60 2.8. 8 Pcs. 37 38 4 x 60 4 Pcs. 3,5 x 40...
  • Page 23 Pictures p. 23/25 3,2 x 40...
  • Page 24 Pictures p. 24/25 2.9. 2400 2400 3 x 25 3 x 25 28 Pcs. 4 x 60...
  • Page 25 Pictures p. 25/25...
  • Page 26 NOTES / NOTIZEN / NOTE ………………………………………………….....………………………………………………………………... ……………………………………………………………..……………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………….....………………………………………………………………... ……………………………………………………………..……………………………………………………………... ……………………………………………………………..……………………………………………………………... ……………………………………………………………..…………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………..…………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………...
  • Page 27 NOTES / NOTIZEN / NOTE ………………………………………………….....………………………………………………………………... ……………………………………………………………..……………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………….....………………………………………………………………... ……………………………………………………………..……………………………………………………………... ……………………………………………………………..……………………………………………………………... ……………………………………………………………..…………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………..…………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………... …………………………………………………………….....………………………………………………………...
  • Page 28 @ harviaglobal GLOBAL CENTRAL EUROPE Harvia Finland Harvia Austria GmbH Teollisuustie 1-7 Wartenburger Straße 31 40951 Muurame 4840 Vöcklabruck FINLAND AUSTRIA T +358 207 464 000 T +43 (0) 7672 22 900-50 harvia@harvia.com info@harvia.com www.harvia.com...
