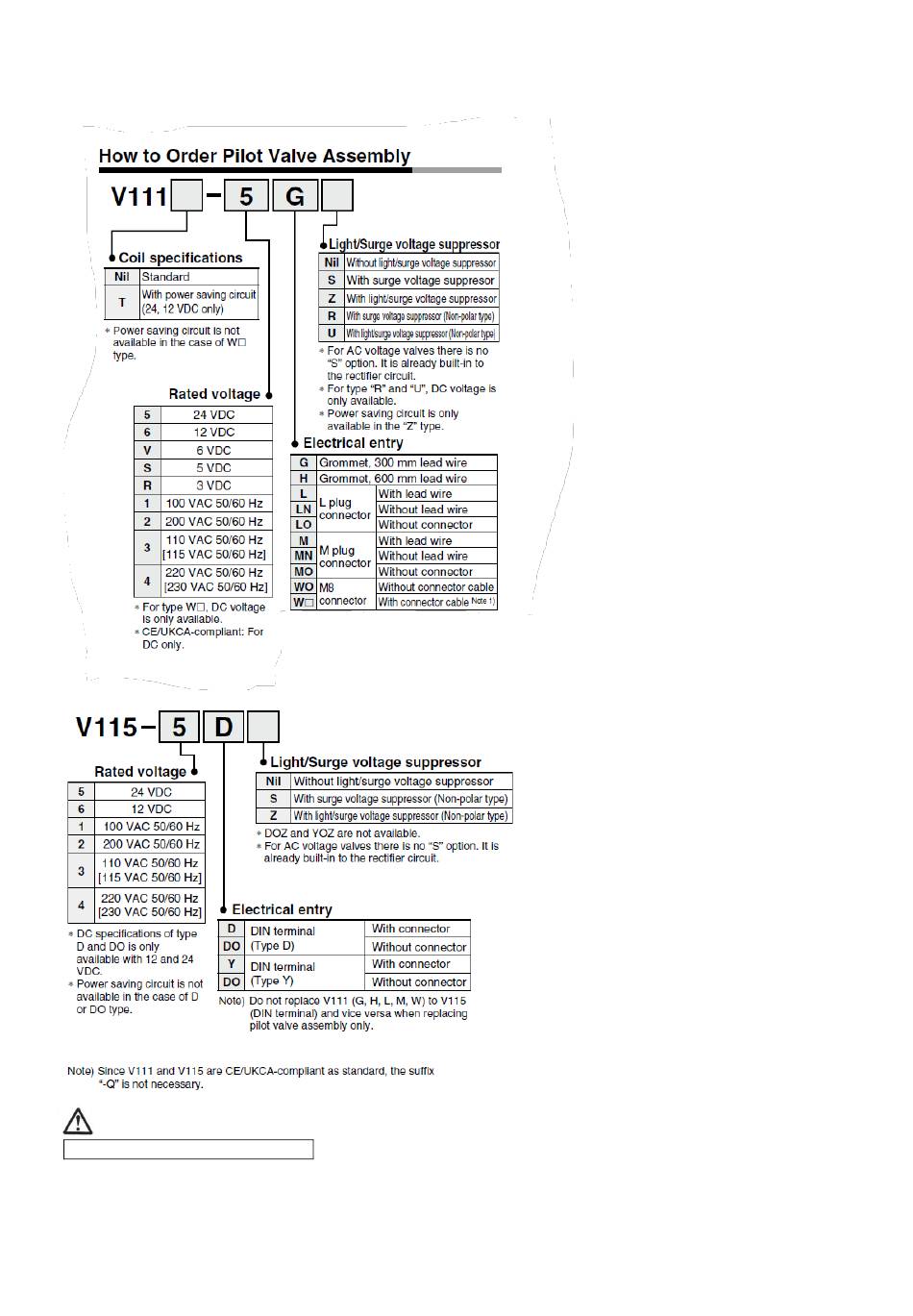

∗ For connector cable of M8 connector, refer to page 13 and 14.
Note 1) Enter the cable length symbols in □.Please be sure to fill in the blank referring to page 13 and 14.
Caution
Mounting screw tightening torques
V111 : 0.12N・m
V115 : 0.16N・m
- 24 -
No.SYJ3000-OMM0002-B
