SYJ Series
Be sure to read this before handling

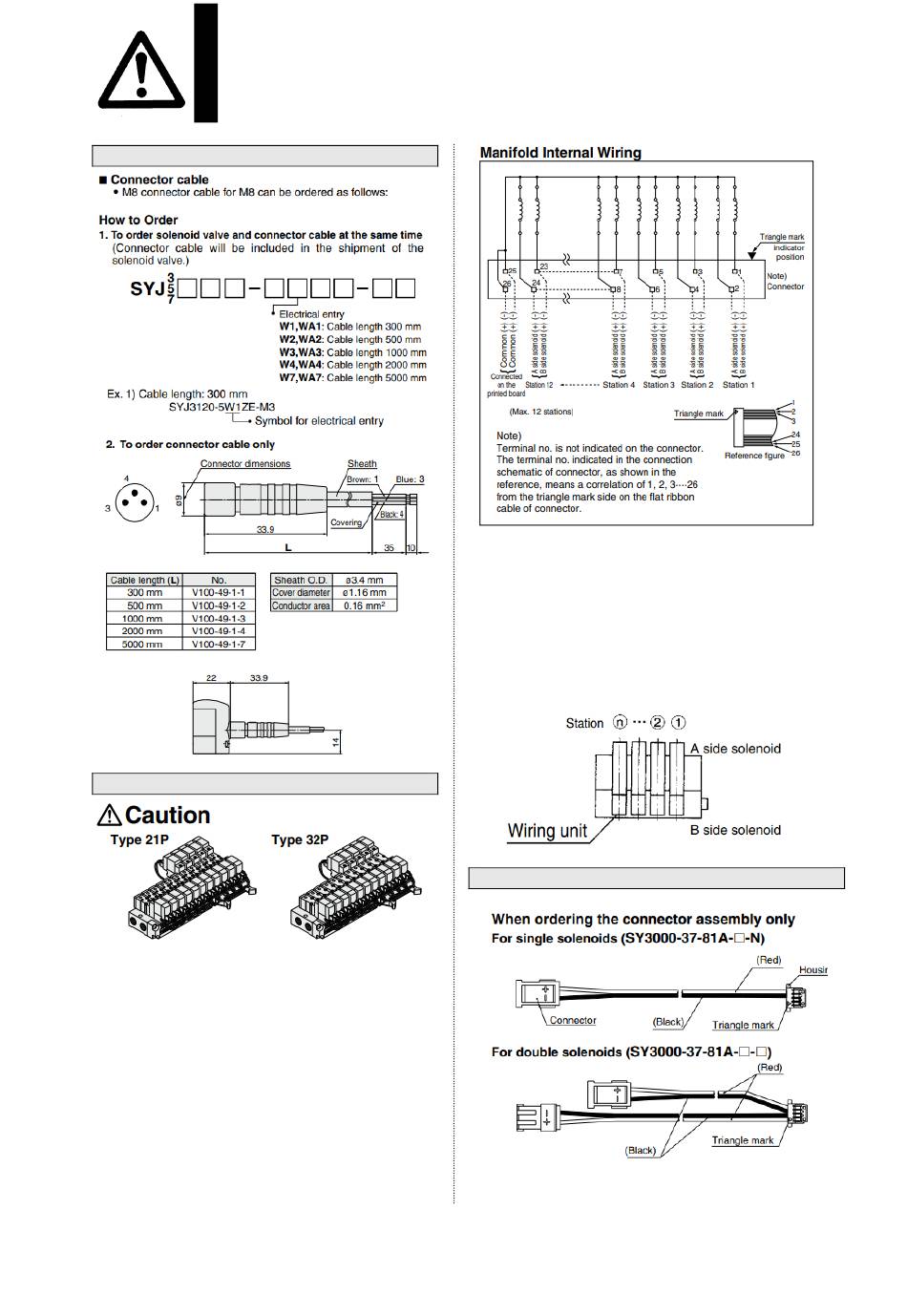

M8 connector
Flat Ribbon Cable Manifold
・In the manifold valves, the wiring to the individual valves
is provided on a printed circuit board, and the connection
to the external wires is consolidated through the use of a
flat ribbon cable.
・ A single MIL flat ribbon cable connects the entire
manifold to your power source. This greatly reduces
installation time.
/
Specific Product Precautions 5
• For more than 10 stations, both poles of the common
should be wired.
• For single solenoid, connect to the B side solenoid.
•The maximum number of stations that can be accommo-
dated is 12.
•Only non-polar valves are available for the DC flat cable
manifold, therefore negative COM or positive COM
wiring of the manifold is possible. The valve does not
switch with negative COM if a Z type is used. Be sure to
use a positive COM.
EX510 Gateway-type Serial Transmission System
- 13 -
No.SYJ3000-OMM0002-B
