Summary of Contents for Meinberg microSync XS200

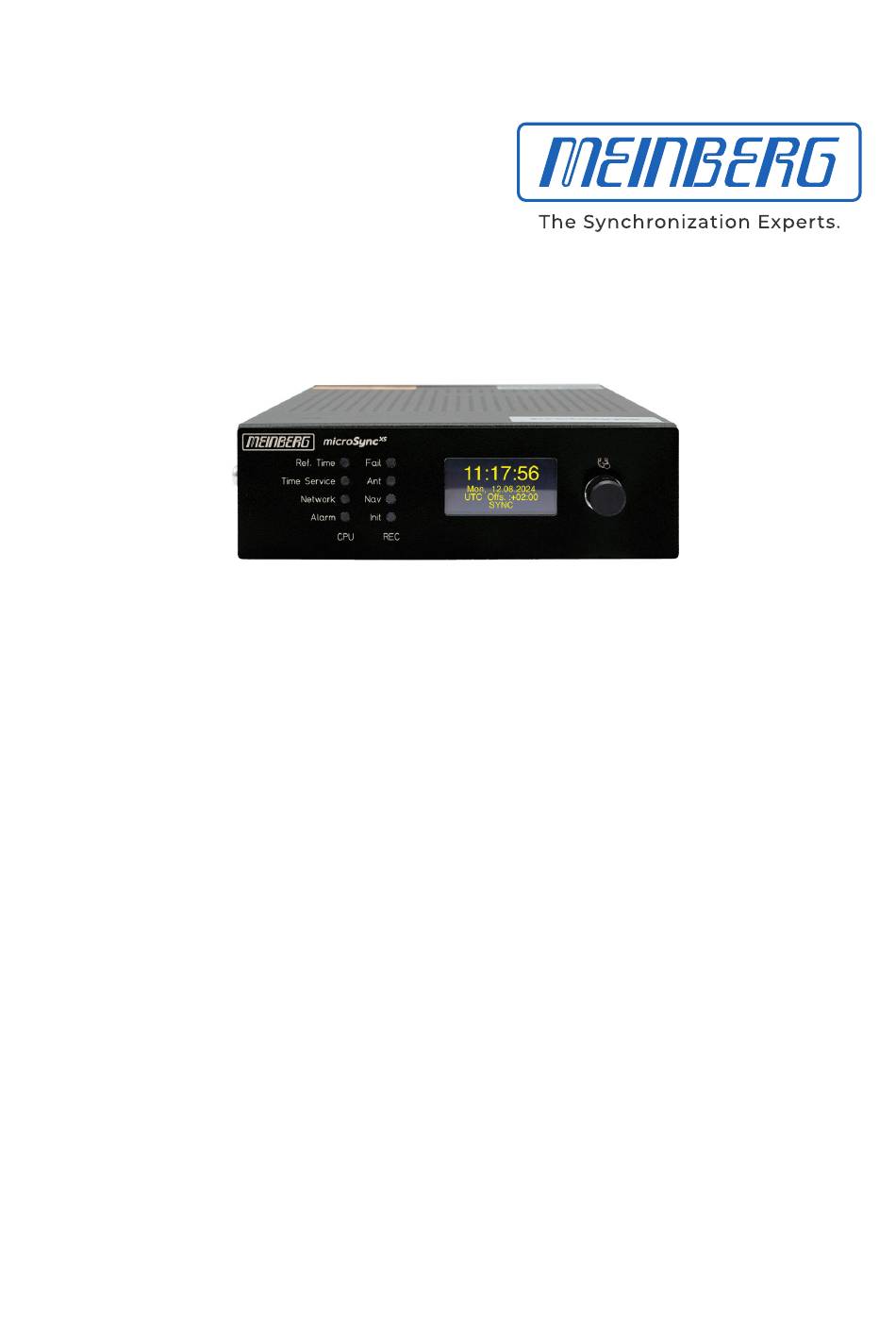

Page 1 TECHNICAL REFERENCE microSync Meinberg Funkuhren GmbH & Co. KG...
Page 3: Table Of Contents
Status Indicators: CPU and Receiver ........10 microSync XS200 Connectors 10.1...
Page 4 12.4.2 Meinberg GPS Time String ........
Page 5: Imprint And Legal Information
1 Imprint and Legal Information 1 Imprint and Legal Information Publisher Meinberg Funkuhren GmbH & Co. KG Registered Place of Business: Lange Wand 9 31812 Bad Pyrmont Germany Telephone: +49 (0) 52 81 – 93 09 - 0 Fax: +49 (0) 52 81 – 93 09 - 230 The company is registered in the "A"...
Page 6: Copyright And Liability Exclusion
Meinberg reserves the right to make changes of any type to this document at any time as is necessary for the purpose of improving its products and services and ensuring compliance with applicable standards, laws &...
Page 7: Presentation Conventions In This Manual
3 Presentation Conventions in this Manual 3 Presentation Conventions in this Manual 3.1 Conventions for the Presentation of Critical Safety Warnings Warnings are indicated with the following warning boxes, using the following signal words, colors, and symbols: Caution! This signal word indicates a hazard with a low risk level. Such a notice refers to a procedure or other action that may result in minor injury if not observed or if improperly performed.
Page 8: Secondary Symbols Used In Safety Warnings
3.2 Secondary Symbols Used in Safety Warnings Some warning boxes may feature a secondary symbol that emphasizes the deﬁning nature of a hazard or risk. The presence of an “electrical hazard” symbol is indicative of a risk of electric shock or lightning strike.
Page 9: Generally Applicable Symbols
3 Presentation Conventions in this Manual 3.4 Generally Applicable Symbols The following symbols and pictograms are also used in a broader context in this manual and on the product. The presence of the “ESD” symbol is indicative of a risk of product damage caused by electrostatic discharge.
Page 10: Important Safety Information
It is the responsibility of the operator to ensure that the product is safely and properly used. Should you require additional assistance or advice on safety-related matters for your product, Meinberg’s Technical Support team will be happy to assist you at any time. Simply send a mail techsupport@meinberg.de.
Page 11: Product Documentation
If any of the safety information in the product documentation is unclear for you, do not continue with the set-up or operation of the device! Safety standards and regulations change on a regular basis and Meinberg updates the corresponding safety information and warnings to reﬂect these changes. It is therefore recommended to regularly visit the Meinberg website at https://www.meinbergglobal.com...
Page 12: Safety During Installation
Never drill holes into the device to mount it! If you are experiencing diﬃculties with rack installation, contact Meinberg’s Technical Support team for assistance! Inspect the device housing before installation. The device housing must be free of any damage when it is installed.
Page 13: Grounding The Device
4 Important Safety Information 4.4 Grounding the Device In order to ensure that the device can be operated safely and to meet the requirements of IEC 62368- 1, the device must be correctly connected to the protective earth conductor via the protective earth terminal.
Page 14: Electrical Safety
Always pull cable connectors out at both ends before performing work on connectors! Improperly connecting or disconnecting this Meinberg system may result in electric shock, possibly resulting in injury or death! When pulling out a connector, never pull on the cable itself! Pulling on the cable may cause the plug to become detached from the connector or cause damage to the connector itself.
Page 15 4 Important Safety Information 5-Pin MSTB Connector 3-Pin MSTB Connector = 100 - 200 V = 90 - 250 V Illustration: Lock screws on an MSTB plug connector; in this case on a LANTIME M320 Ensure that all plug connections are secure. In particular, when using plug connectors with lock screws, ensure that the lock screws are securely tightened.
Page 16: Special Information For Devices With Dc Power Supply
4.6 Safety when Handling SFP Modules The ﬁber-optic SFP modules recommended by Meinberg are equipped with a Class 1 laser. • Only use ﬁber-optic SFP modules that are compliant with the deﬁnition of a Class 1 laser in accordance with IEC standard 60825-1.
Page 17: Safety When Maintaining And Cleaning The Device
If a power supply unit or module is no longer functional (for example due to a defect), it can be returned to Meinberg for repair. Some components of the device may become very hot during operation. Do not touch these surfaces! If maintenance work is to be performed on the device and the device housing is still hot, switch oﬀ...
Page 18: Important Product Information
5 Important Product Information 5.1 CE Marking This product bears the CE mark as is required to introduce the product into the EU Single Market. The use of this mark is a declaration that the product is compliant with all requirements of the EU directives eﬀective and applicable as at the time of manufacture of the product.
Page 19: Maintenance And Modifications
5 Important Product Information 5.4 Maintenance and Modiﬁcations Important! Before performing any maintenance work on or authorized modiﬁcation to your Meinberg system, we recommend making a backup of any stored conﬁguration data (e.g., to a USB ﬂash drive from the Web Interface).
Page 20: Disposal
It can be returned to Meinberg for disposal. Any transportation expenses for returning this product (at end-of- life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself. If you wish for Meinberg to handle disposal for you, please get in touch with us. Otherwise, please use the return and collection systems provided within your country to ensure that your device is disposed of in a compliant fashion to protect the environment and conserve valuable resources.
Page 21: Microsync Introduction
6 microSync Introduction 6 microSync Introduction microSync is a multipurpose synchronization solution with compact design and high performance. The mi- croSync system provides multiple output signals and allows synchronization of both NTP clients and PTP slaves. The device has two 100/1000 MBit network interfaces and can provide both, optical and electrical network connections by using SFP modules.
Page 22: Installation Of A Gnss Antenna
7 Installation of a GNSS Antenna Two diﬀerent antennas are available for our combined GPS/GLONASS/Galileo/BeiDou satellite receivers that are each designed to fulﬁll diﬀerent tasks or applications. The active Multi-GNSS L1 antenna is the standard accessory and can receive signals from the GPS, GLONASS, Galileo, and BeiDou satellite systems.
Page 23: Selecting The Antenna Location
2. Mounted on a wall To avoid diﬃculties with synchronization of your connected Meinberg time server, select a location that al- lows for an unobstructed view of the sky (Fig. 1) so as to ensure that enough satellites can be found.
Page 24 • A clear view between the 55 north and 55 south parallels (satellite orbits). Information: Problems may arise with the synchronization of your Meinberg time server if these conditions are not met, as four satellites must be located to calculate the exact position. microSync...
Page 25: Installation Of The Antenna
” – 8 ”). Detailed instructions for the installation of a Multi-GNSS Antenna distributed by Meinberg are included in printed form with the antenna and also in the form of a digital PDF, a link to which is provided in Chapter 13.1,...
Page 26: Antenna Cable
Meinberg provides suitable cable types with its antennas and these are ordered together with the antenna to match the length you need from your antenna to your Meinberg reference clock. The route to be covered for your antenna installation should be determined and the appropriate cable type selected accordingly before conﬁrming your order.
Page 27 7 Installation of a GNSS Antenna Laying the Antenna Cable When laying the antenna cable, ensure that the speciﬁed maximum cable length is not exceeded. This length will depend on the selected cable type and its attenuation factor. If the speciﬁed maximum length is exceeded, correct transmission of the synchronization data and thus proper synchronization of the reference clock can no longer be guaranteed.
Page 28 Compensating for Signal Propagation Time GNS Reference Clocks The propagation of the signal from the antenna to the receiver (reference clock) can incur a certain delay. This delay can be compensated for in the meinbergOS Web Interface. To do this, log into the Web Interface of your microSync system and proceed as follows: Open the menu “Conﬁguration”...
Page 29: Surge Protection And Grounding
(e.g., DIN EN 60728-11) for more information. However, in order to preserve the safety of the building and to protect your Meinberg system, Meinberg recommends the use of the MBG-S-PRO surge protector, which is addressed in more detail later in this chap- ter.
Page 30: Electrical Bonding
Electrical Bonding Electrical bonding is the connection of all metallic, electrically conductive elements of the antenna instal- lation in order to limit the risk of dangerous voltages for people and connected devices. To this end, the following elements should be connected and integrated into a bonding system: •...
Page 31 7 Installation of a GNSS Antenna The following drawings illustrate how a Multi-GNSS Antenna can be installed in accordance with the above conditions on a pole (e.g., antenna pole) or building roof. Antenna Installation without Insulated Lightning Rod System α Fig.
Page 32 Antenna Installation with Insulated Lightning Rod System α Fig. 6: Roof Installation Multi-GNSS Antenna Lightning Rod Lightning Rod Conductor Antenna Cable Bonding Conductor Bonding Bar Foundation Electrode Safety Zone microSync...
Page 33: Selecting A Location
Optional MBG S-PRO Surge Protector Information: The surge protector and suitable coaxial cable are not included as standard with a Meinberg Multi- GNSS Antenna, but can be ordered as an optional accessory, during or after the purchase of your time server.
Page 34 Preparation In addition to the MBG-S-PRO unit itself and the provided mounting bracket, you will require the follow- ing for the installation process: • A coaxial cable of suﬃcient length to be connected between the antenna and the MBG-S-PRO; the surge protector connector requires a Type-N male connector.
Page 35: Installation And Connection
Important! The MBG-S-PRO must be connected to the same bonding bar as the connected Meinberg receiver in order to prevent destructive potential diﬀerences. Lay the coaxial cable from the antenna to the installation location of the surge protector and connect this cable to one of the connectors of the surge protector, then connect the coaxial cable from the Meinberg receiver or (primary) signal distributor to the other surge protector connector.
Page 36: Additional Information
Additional Information This guide only describes the basic installation process of the MBG-S-PRO. Please refer to Chapter 13.3, “Technical Speciﬁcations: MBG-S-PRO Surge Protector” in the appendix as well as the manufacturer’s data sheet for detailed installation instructions and technical speciﬁcations for the MBG-S-PRO surge protector, including instructions on how to replace the gas cylinder: Data Sheet https://www.meinbergglobal.com/download/docs/shortinfo/english/cn-ub-280dc-bb_pc.pdf...
Page 37: Before You Start
8 Before You Start 8 Before You Start 8.1 Initial Network Conﬁguration Once the system has been successfully started, the initial set-up process can be launched. The microSync is shipped with DHCP disabled and a static IP address conﬁgured. This means that a network connection must be established manually before you can set the device up properly.
Page 38 Web Interface or Meinberg Device Manager. Information: If the microSync’s network conﬁguration has already been previously performed using the Web Interface or Meinberg Device Manager, you will not be able to do this again using mbgOSWizard.sh. microSync...
Page 39: Network Configuration Via Web Interface
8 Before You Start 8.1.2 Network Conﬁguration via Web Interface The network conﬁguration for the microSync can be performed via the Web Interface. In its factory-shipped state, the microSync has the following network conﬁguration: Network Port LAN0 IPv4 Address: 192.168.19.79 Subnet Mask: 255.255.255.0 Gateway:...
Page 40 As soon as the Dashboard appears, open the “Conﬁguration” section in the header bar and select the subsec- tion “Network”. You should ensure in particular that the network conﬁguration is performed for the intended management interface (“Interfaces” tab) to ensure that it is accessible from the subnet. Once you have performed the conﬁguration, click on “Save”...
Page 41: Initial Start Of Operation
8 Before You Start 8.2 Initial Start of Operation 8.2.1 Setup using the meinbergOS Web Interface As of meinbergOS 2022.05.1, your microSync system features a comprehensive Web Interface that you can use to perform most conﬁguration and monitoring activities for your device. Figure 8.1: meinbergOS Web Interface Login Page Once you have entered the IP address of your meinbergOS device into the address bar of your browser, the login page will be displayed (...
Page 42: Microsync - Front Display
9 microSync - Front Display Information: The numbering above relates to the corresponding subsection in this chapter. microSync...
Page 43: Microsync Oled Display
9 microSync - Front Display 9.1 microSync OLED Display The microSync is ﬁtted with an OLED display located on the side opposite to the signal inputs and outputs; this display can be used to perform the initial conﬁguration of the network management port LAN0. The conﬁguration process in this case is limited to conﬁguring the IP address, netmask, gateway, and en- abling or disabling the DHCP service.
Page 44 Exit Back • System Type - e.g.: microSync XS200 • SN - Serial Number • dSW - Display Software Version • SW - Software Version •...
Page 45 9 microSync - Front Display 4. Network Parameters (DHCP On) This menu item can only be used to disable the DHCP service; all other parameters are conﬁgured by the Set Network Parm. DHCP service. lan0:0 DHCP On Exit DHCP On DHCP On [Oﬀ] Save: No [Yes]...
Page 46: Status Indicators: Cpu And Receiver
9.2 Status Indicators: CPU and Receiver CPU: —————————————————————————– Ref. Time (Receiver) Green: The reference clock (e.g., the integrated GNS) is providing a valid reference time. Red: The reference clock is not providing a valid reference time. Time Service Green: NTP is synchronized with the reference clock (e.g., the integrated GNS) Red: NTP is not synchronized or has switched to...
Page 47: Microsync Xs200 Connectors
10 microSync XS200 Connectors 10 microSync XS200 Connectors Information: The numbering above relates to the corresponding subsection in this chapter. microSync...
Page 48: Power Supply And Protective Earth Connection
PS2 (< 100 W) in accordance with IEC/EN 62368-1. The power supply must also meet the requirements of NEC Class 2. For damage caused to the microSync by using an unsuitable AC adapter, Meinberg assumes no liability and warranty claims are also lost as a result.
Page 49: Gnss Antenna
10 microSync XS200 Connectors 10.2 GNSS Antenna Antenna Type: Multi-GNSS L1 Antenna with integrated Lightning Protection Receiver Type: 72-Channel Receiver GPS/GLONASS/Galileo/BeiDou Signal Support: GPS: L1 C/A (1575.42 MHz) Galileo: E1-B/C (1575.42 MHz) BeiDou: B1I (1561.098 MHz) GLONASS: L1OF (1602 MHz + k*562.5 kHz)
Page 50: Rs-232 Comx Time String
10.3 RS-232 COMx Time String Data Transfer Mode: Serial Baud Rate/Framing: 19200 / 8N1 (Default) Time String: Meinberg Standard (default) (Refer to “Supported Time Strings” for more information about time strings) Pin Assignment: Pin 2: RxD (Receive) Pin 3: TxD (Transmit)
Page 51: Status Indicators: Cpu & Receiver
10 microSync XS200 Connectors 10.4 Status Indicators: CPU & Receiver CPU: —————————————————————————– R (Receiver) Green: The reference clock (e.g., the integrated GNS) is providing a valid reference time. Red: The reference clock is not providing a valid reference time. T (Time Service)
Page 52: Usb Interface
10.5 USB Interface Signal Signal Type Connector Type —————————————————————————– USB Terminal USB-to Micro-USB Type-B Serial Terminal USB Host USB Connector USB Type-A Management CPU 10.6 LAN Network Interfaces Gigabit Ethernet (GbE), 100/1000 MBit - SFP LAN 0, 1: Management 10/100/1000Mbit RJ45 or 1000FX NTP / PTP Synchronous Ethernet: Master and Slave Capability...
Page 53: Available Sfp Modules
10 microSync XS200 Connectors Available SFP Modules Recommended and tested Transceivers from other Vendors Mode Vendor/Type Distance —————————————————————————————————————————————- MULTI MODE: AVAGO AFBR-5710PZ 550 m (1,805 ft) FINISAR FTLF8524P3BNL 500 m (1,640 ft) SINGLE MODE: AVAGO AFCT-5710PZ 10 km (32,808 ft)
Page 54: Programmable Pulse Outputs
10.7 Programmable Pulse Outputs Output Signal: Programmable Pulses Signal Level: TTL; 2.5 V with 50 load Connector Type: SMA, Female Cable Type: Coaxial Cable, Shielded Pulse Outputs: Idle Timer Single Shot Cyclic Pulse Pulse per Second Pulse per Minute Pulse per Hour DCF77 Marks Position OK Time Sync...
Page 55: How Satellite Navigation Works
11 How Satellite Navigation Works 11 How Satellite Navigation Works The use of a receiver for location tracking and time synchronization relies on the ability to measure the satellite- to-receiver propagation delay as precisely as possible. It is necessary to have simultaneous reception from at least four satellites so that the receiver can determine its relative spatial position in three dimensions (x, y, z) and measure the deviation of its clock against the system clock.
Page 56: Technical Appendix
12 Technical Appendix 12.1 Technical Speciﬁcations: microSync Chassis Chassis Type: 1/3 of 19” Rack, 1U Chassis Material: Sheet Steel ——————————————————————————- Temperature Range Operation: –20 C to +55 C (–4 F to +131 F) Storage: –30 C to +70 C (–22 F to +158 F) ——————————————————————————- Relative Humidity Operation:...
Page 57 12 Technical Appendix Physical Dimensions: microSync...
Page 58: Description Of Timecode Formats
Each IRIG format carries a designation comprising a letter followed by three numerical digits. The letter and each of the digits represents a characteristic property of the corresponding IRIG code. The timecode formats supported will depend on your Meinberg product. A002:...
Page 59 12 Technical Appendix Abbreviations: BCD = Binary-Coded Decimal, SBS = Straight Binary Seconds In addition to the original IRIG standards, there are other speciﬁcations issued by other bodies that deﬁne speciﬁc extensions. AFNOR: Code according to NF S87-500, 100 pps, AM sine-wave signal, 1 kHz carrier frequency, BCD time-of-year, complete date, SBS time-of-day, signal level speciﬁed by standard.
Page 60: Programmable Pulse Signals
12.3 Programmable Pulse Signals The programmable pulse outputs of microSync systems can be operated in the following modes: Idle Selecting “Idle” allows individual programmable pulse outputs to be disabled. Timer In “Timer” mode, the output simulates a timer with a ﬁxed daily schedule. It is possible to conﬁgure three switch-on and three switch-oﬀ...
Page 61: Sync Modes
GPS time?for a signal to be passed through the output. DCLS Timecode DC level shift timecode. The timecode output here is conﬁgured in the "Outputs" section of Meinberg Device Manager. 1 MHz Frequency, 5 MHz Frequency, 10 MHz Frequency These modes are used to output a ﬁxed frequency, using a PPS signal as an absolute phase reference (i.e., the...
Page 62: Supported Time Strings
12.4.1 Meinberg Standard Time String The Meinberg Standard time string is a sequence of 32 ASCII characters, starting with the character <STX> (Start of Text, ASCII code 02h) and terminated with the character <ETX> (End of Text, ASCII code 03h). The format is as follows: <STX>D:dd.mm.yy;T:w;U:hh.mm.ss;uvxy<ETX>...
Page 63: Meinberg Gps Time String
12.4.2 Meinberg GPS Time String The Meinberg GPS time string is a sequence of 36 ASCII characters, starting with the <STX> (Start of Text) character and ending with the <ETX> (End of Text) character. Unlike the Meinberg Standard time string, it does not contain UTC time or time adjusted to any local time zone.
Page 64: Meinberg Capture Time String
12.4.3 Meinberg Capture Time String The Meinberg Capture time string is a sequence of 31 ASCII characters, terminated with the sequence <CR> (Carriage Return, ASCII code 0Dh) and <LF> (Line Feed, ASCII code 0Ah). The format is as follows: CHx<SP>dd.mm.yy_hh:mm:ss.fffffff<CR><LF>...
Page 65: Spa Time String
12 Technical Appendix 12.4.4 SPA Time String The SPA time string is a sequence of 32 ASCII characters, starting with the string “>900WD:” and terminated with the character <CR> (Carriage Return). The format is as follows: >900WD:yy-mm-dd_hh.mm;ss.fff:cc<CR> The letters printed in italics are replaced by ASCII numbers whereas the other characters are unalterable parts of the time string.
Page 66: Sat Time String
12.4.5 SAT Time String The SAT time string is a sequence of 29 ASCII characters, starting with the character <STX> (Start of Text, ASCII code 02h) and terminated with the character <ETX> (End of Text, ASCII code 03h). The format is as follows: <STX>dd.mm.yy/w/hh:mm:ssxxxxuv<ETX>...
Page 67: Uni Erlangen Time String (Ntp)
12 Technical Appendix 12.4.6 Uni Erlangen Time String (NTP) The Uni Erlangen time string (NTP) is a sequence of 66 ASCII characters, starting with the character <STX> (Start of Text, ASCII code 02h) and terminated with the character <ETX> (End of Text, ASCII code 03h). The format is as follows: <STX>dd.mm.yy;...
Page 68 Geographical hemisphere, possible characters are: “N” North of Equator “S” South of Equator lll.llll Geographical longitude of the receiver position in degrees Leading zeroes are padded with spaces (ASCII code 20h) Prime meridian hemisphere, possible characters are: “E” East of Greenwich Meridian “W”...
Page 69: Nmea 0183 String (Rmc)
West of Greenwich Meridian Speed over the ground in knots and track angle in degrees. 0.0,0.0 With a Meinberg GPS clock, these values are always 0.0, with GNS clocks, the values are calculated by the receiver for mobile applications. Current Date:...
Page 70: Nmea 0183 Time String (Gga)
12.4.8 NMEA 0183 Time String (GGA) The NMEA 0183 GGA string is a sequence of characters starting with the string “$GPGGA” and ending with the characters <CR> (Carriage Return) and <LF> (Line Feed). The format is as follows: $GPGGA,hhmmss.ff,bbbb.bbbbb,n,lllll.ll,e,A,vv,hhh.h,aaa.a,M, ggg.g,M,,0 * cs<CR><LF> The letters printed in italics are replaced by ASCII-formatted numbers, whereas the other characters are directly part of the time string.
Page 71: Nmea 0183 Time String (Zda)
12 Technical Appendix 12.4.9 NMEA 0183 Time String (ZDA) The NMEA 0183 ZDA time string is a sequence of 38 ASCII characters starting with the string “$GPZDA” and ending with the characters <CR> (Carriage Return) and <LF> (Line Feed). The format is: $GPZDA,hhmmss.ss,dd,mm,yyyy,HH,II * cs<CR><LF>...
Page 72: Computime Time String
12.4.10 Computime Time String The Computime time string is a sequence of 24 ASCII characters, starting with the character T and terminated with the character <LF> (Line Feed, ASCII code 0Ah). The format is as follows: T:yy:mm:dd:ww:hh:mm:ss<CR><LF> The letters printed in italics are replaced by ASCII numbers whereas the other characters are unalterable parts of the time string.
Page 73: Racal Time String
12 Technical Appendix 12.4.11 RACAL Time String The RACAL time string is a sequence of 16 ASCII characters started by a X character and terminated by the <CR> (Carriage Return, ASCII code 0Dh) character. The format is as follows: XGUyymmddhhmmss<CR> The letters printed in italics are replaced by ASCII-formatted numbers, whereas the other characters are directly part of the time string.
Page 74: Sysplex-1 Time String
12.4.12 SYSPLEX-1 Time String The SYSPLEX 1 time string is a sequence of 16 ASCII characters, starting with the character <SOH> (Start of Header, ASCII code 01h) and terminated with the character <LF> (Line Feed, ASCII code 0Ah). Important! To ensure that the time string can be correctly output and displayed through your terminal software of choice, a “C”...
Page 75: Ion Time String
12 Technical Appendix 12.4.13 ION Time String The ION time string is a sequence of 16 ASCII characters, starting with the character <SOH> (Start of Header, ASCII code 01h) and terminated with the character <LF> (Line Feed, ASCII code 0Ah). The format is as follows: <SOH>ddd:hh:mm:ssq<CR><LF>...
Page 76: Ion Blanked Time String
12.4.14 ION Blanked Time String The ION time string is a sequence of 16 ASCII characters, starting with the character <SOH> (Start of Header, ASCII code 01h) and terminated with the character <LF> (Line Feed, ASCII code 0Ah). The format is as follows: <SOH>ttt:hh:mm:ssq<CR><LF>...
Page 77: Irig-J Timecode
12 Technical Appendix 12.4.15 IRIG-J Timecode The IRIG-J timecode consists of a string of ASCII characters sent in “701” format, i.e.,: • 1 start bit • 7 data bits • 1 parity bit (odd) • 1 stop bit The start of the second is marked by the leading edge of the start bit of the string. The string is 15 characters long and is sent once a second at a baud rate of 300 or greater.
Page 78: 6021 Time String
12.4.16 6021 Time String The 6021 time string is a sequence of 18 ASCII characters starting with the <STX> (Start of Text, ASCII code 02h) ASCII control character and terminated with the sequence <LF> (Line Feed, ASCII code 0Ah), <CR> (Car- riage Return, ASCII code 0Dh), <ETX>...
Page 79 12 Technical Appendix Line Feed (ASCII code 0Ah) <LF> Carriage Return (ASCII code 0Dh) <CR> End of Text (ASCII code 03h) <ETX> * With ASCII nibbles, the actual ASCII character itself (0-9, A-F, ASCII codes 0x30h–0x39h and 0x41h–0x46h) represents the hexadecimal equivalent of a 4-bit binary sequence.
Page 80: Freelance Time String
12.4.17 Freelance Time String The Freelance time string is a sequence of 18 ASCII characters starting with the <STX> (Start of Text, ASCII code 02h) ASCII control character and terminated with the sequence <CR> (Carriage Return, ASCII code 0Dh), <LF> (Line Feed, ASCII code 0Ah), <ETX> (End of Text, ASCII code 03h). It is broadly identical to the “6021 Time String”, but with a diﬀerent order to the termination sequence.
Page 81 12 Technical Appendix Carriage Return (ASCII code 0Dh) <CR> Line Feed (ASCII code 0Ah) <LF> End of Text (ASCII code 03h) <ETX> * With ASCII nibbles, the actual ASCII character itself (0-9, A-F, ASCII codes 0x30h–0x39h and 0x41h–0x46h) represents the hexadecimal equivalent of a 4-bit binary sequence.
Page 82: Configuration - Options
12.5 Conﬁguration - Options Receiver Options RECEIVER TYPE SIGNAL TYPE VALUE CONNECTOR Meinberg GPS IF, 12-Channel IF (Meinberg Antenna) 15 V DC Meinberg GNS-UC GPS/Galileo IF IF (Meinberg Antenna) 15 V DC GNSS (GPS, GLONASS, Galileo, BeiDou), 72-Channel L1/E1/B1 Band...
Page 83: Technical Appendix: Gnss Antennas + Accessories
13.1 Technical Speciﬁcations: 40 dB Multi-GNSS Antenna for Fixed-Location Applications The microSync XS200 is typically shipped with an active 40 dB Multi-GNSS Antenna manufactured by PCTEL. Detailed speciﬁcations and installation instructions for the PCTEL 40 dB Multi-GNSS Antenna are provided in the third-party manufacturer’s data sheet under the following links:...
Page 84: Technical Specifications: 27 Db Mobile Multi-Gnss Antenna For Mobile Applications
13.2 Technical Speciﬁcations: 27 dB Mobile Multi-GNSS Antenna for Mobile Applications The microSync XS200 can also optionally be shipped with a 27 dB Multi-GNSS Antenna manufactured by SANAV. This antenna is intended for mobile applications. Installation Diagram Detailed speciﬁcations are provided in the manufacturer’s data sheet. The data sheet for the SANAV RV-76G Mobile Multi-GNSS Antenna can be downloaded via the following link: https://www.meinbergglobal.com/download/docs/other/rv-76g_en.pdf...
Page 85: Technical Specifications: Mbg-S-Pro Surge Protector
13 Technical Appendix: GNSS Antennas + Accessories 13.3 Technical Speciﬁcations: MBG-S-PRO Surge Protector The MBG-S-PRO is a surge protector (Phoenix CN-UB-280DC-BB) for coaxial connections. It is patched directly into the antenna line and consists of a replaceable gas discharge tube that redirects the energy from the cable shielding to the ground potential when ignited.
Page 86: How Satellite Navigation Works
13.4 How Satellite Navigation Works The use of a receiver for location tracking and time synchronization relies on the ability to measure the satellite- to-receiver propagation delay as precisely as possible. It is necessary to have simultaneous reception from at least four satellites so that the receiver can determine its relative spatial position in three dimensions (x, y, z) and measure the deviation of its clock against the system clock.
Page 87: Rohs Conformity
14 RoHS Conformity 14 RoHS Conformity Conformity with EU Directive 2011/65/EU (RoHS) We hereby declare that this product is compliant with the European Union Directive 2011/65/EU and its delegated directive 2015/863/EU “Restrictions of Hazardous Substances in Electrical and Electronic Equipment” and that no impermissible substances are present in our products pursuant to these Directives.
Page 88: Declaration Of Conformity For Operation In The European Union
15 Declaration of Conformity for Operation in the European Union EU-Konformitätserklärung Doc ID: microSync XS200-April 4, 2025 Hersteller Meinberg Funkuhren GmbH & Co. KG Manufacturer Lange Wand 9, D-31812 Bad Pyrmont erklärt in alleiniger Verantwortung, dass das Produkt, declares under its sole responsibility, that the product...
Page 89: Declaration Of Conformity For Operation In The United Kingdom
16 Declaration of Conformity for Operation in the United Kingdom 16 Declaration of Conformity for Operation in the United Kingdom UK Declaration of Conformity Doc ID: microSync XS200-April 4, 2025 Manufacturer Meinberg Funkuhren GmbH & Co. KG Lange Wand 9...
