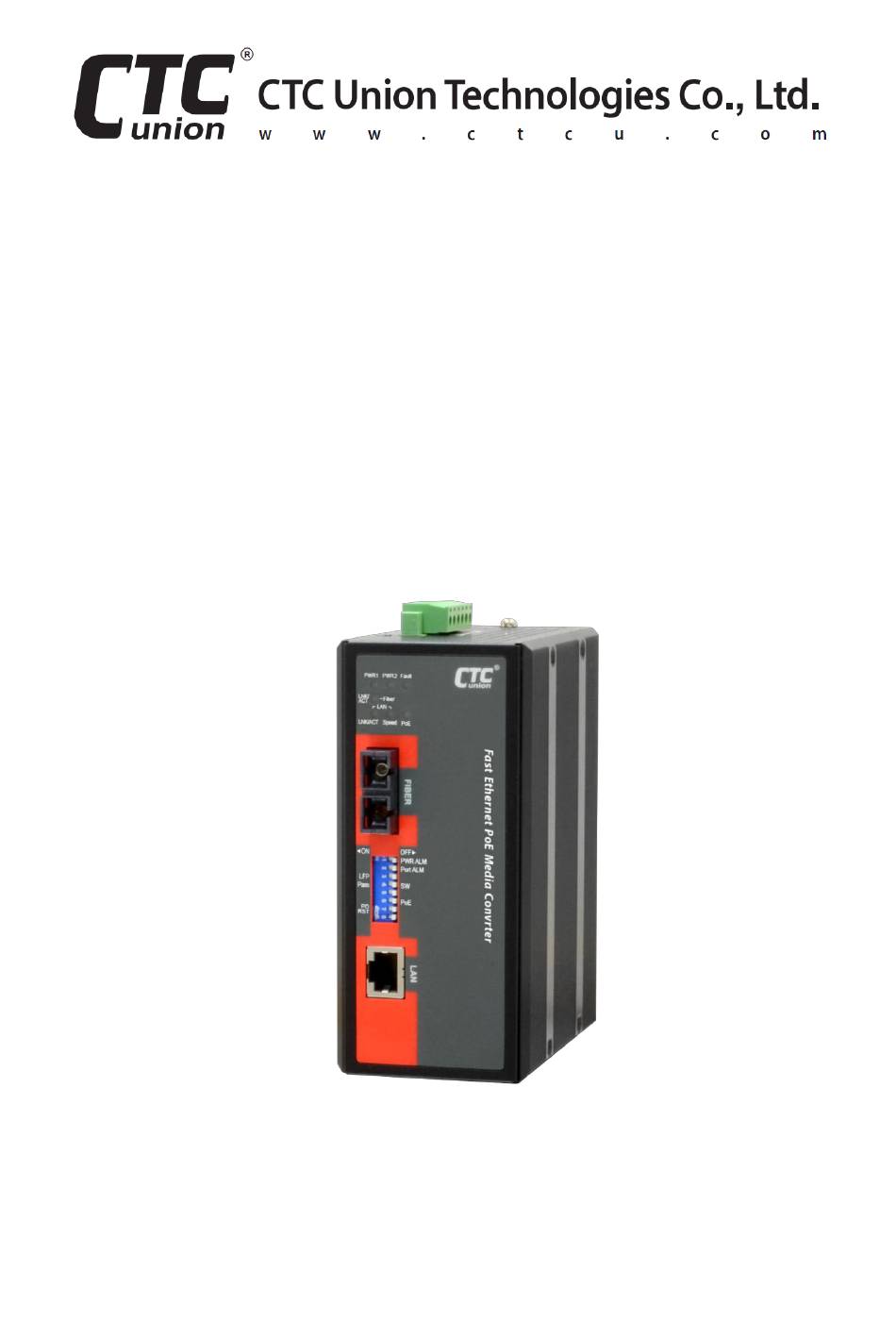

- Page 1 Quick Installation Guide IMC-100-PH12 IMC-100-PHE12 Industrial Grade Fast Ethernet PoE+ Fiber Converters sales@ctcu.com...
- Page 2 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2020 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
- Page 3 CTC Union Technologies makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose, nor does CTC Union assume any liability arising out of the application or use of any product and specifically disclaims any and all liability, including without limitation any consequential or incidental damages.
- Page 4 Table of Contents Introduction .................. 5 Package List ................. 5 Features ..................5 Specifications ................6 .................... 6 THERNET NTERFACE ....................6 PTICAL NTERFACE ..................6 OWER OVER THERNET ......................7 OWER ...................... 7 ECHANICAL ....................7 NVIRONMENTAL ....................8 ERTIFICATIONS MTBF (MIL-HDBK-217) ..................
- Page 5 Introduction IMC-100-PH(E)12 are Fast Ethernet PoE (Power over Ethernet) media converters that support conversion between electrical 10/100Base-TX and optical 100Base-FX Ethernet. Housed in rugged DIN rail or wall mountable enclosures, these converters are designed for harsh environments, such as industrial networking and intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.
- Page 6 Specifications Ethernet Interface • Standards: IEEE802.3, 802.3u • Connector: RJ-45 (shielded) • Number of Ethernet Interface: 1 • Auto MDI/MDI-X • Speed: 10/100Base-TX (Auto) • Duplex: Full/Half (Auto) • Jumbo Frame: 9K bytes • Link Fault Pass Through (LFPT) (enable/disable by DIP) Optical Interface •...
- Page 7 • Water & Dust Proof: IP30 Protection • Dimensions: 106 mm (D) x 62.5 mm (W) x 135 mm (H) • Mounting: DIN-Rail, Wall Mount (Optional) • Weight: 655g Environmental • Operating Temperature: -10°C~60°C (IMC-100-PH12); -20°C~75°C (IMC-100-PHE12) • Storage Temperature: -40°C~85°C • Humidity: 5%~95% (Non-condensing)
- Page 8 Certifications • EMC: CE • EMI (Electromagnetic Interference): FCC Part 15 Subpart B Class A, CE • Railway Traffic: EN50121-4 • Immunity for Heavy Industrial Environment: EN61000-6-2 • Emission for Heavy Industrial Environment: EN61000-6-4 • EMS (Electromagnetic Susceptibility) Protection Level: ➢...
- Page 9 Panels Figure 1. Front Panel Figure 2. Top Panel Description Fixed fiber port Fast Ethernet LAN port DIP switch Power 1, Power 2, Fault, Fiber Link/ACT, LAN Link/ACT, LAN Speed & PoE LEDs Terminal block for power inputs & alarm relay Grounding connection Grounding sign...
- Page 10 LAN & Fiber Ports IMC-100-PH(E)12 media converters have one electrical LAN port and one fiber port on the front panel. The LAN port that utilizes shielded RJ-45 connectors supports 10/100M; while the fiber port supports fixed speed 100M. PoE Port The LAN port supports PoE (Power over Ethernet) per IEEE802.3af (15.4W) or IEEE802.3at (30W) for connection to standard PoE PD (Power Devices) such as IP Cameras, Access Points, IP Phones, Digital Signage,...
- Page 11 DIP Switch Status Function Description Enable Provide an alarm indication when OFF * Power either power input loses power. Alarm Disable No alarm when either power input Power loses power. Alarm Enable Provide an alarm indication when OFF * Port Alarm either copper or fiber port loses link.
- Page 12 Recommended Power, Alarm, Grounding Wiring Scheme DC Power Connection A removable terminal block on the top panel provides both power and alarm connections. Power can be provided through the dual inputs from separate sources (PWR1 & PWR2). One power supply is enough to power up the device.
- Page 13 Alarm Relay Connection The alarm relay contact can be wired into an alarm circuit which senses an alarm condition when the contact is broken. The alarm relay is normally closed when there is no alarm condition. Please note that the alarm relay contact can only support 1A current at 24VDC.
- Page 14 LED Indicators Color Status Definition Power is connected and active at the PWR1/PWR2 input terminal PWR1 Green connection. PWR2 Power is not connected. Fiber link loss, TP link loss or either one power loss. Fault Amber Normal operation with no power, fiber or TP faults.
- Page 15 Installation IMC-100-PH(E)12 can be mounted on the wall or installed in DIN rail depending on your installation needs. When installing the wall- mounting bracket (optional accessory) and DIN rail bracket, be sure to correctly align the orientation pin. Figure 9. DIN Rail Figure 10.
- Page 16 Remote PD Reset Application Switch IMC-100-PH(E)12 PD device performs Fiber a power reset DIP 6 OFF DIP 7 ON PD Device Manually disable or disconnect fiber link stops providing Power Power power device for 3 seconds 3 seconds Figure 13. Remote PD Reset Function...
- Page 17 Version Date Description 2020/7/31 Use new document format Revise spec.
