CTC Union IMC-100-PD Quick Installation Manual

Installation
IMC-100-PD(-E) comes with both wall mount and DIN rail
hardware brackets. When installing the DIN rail bracket, be sure
to correctly align the orientation pin.

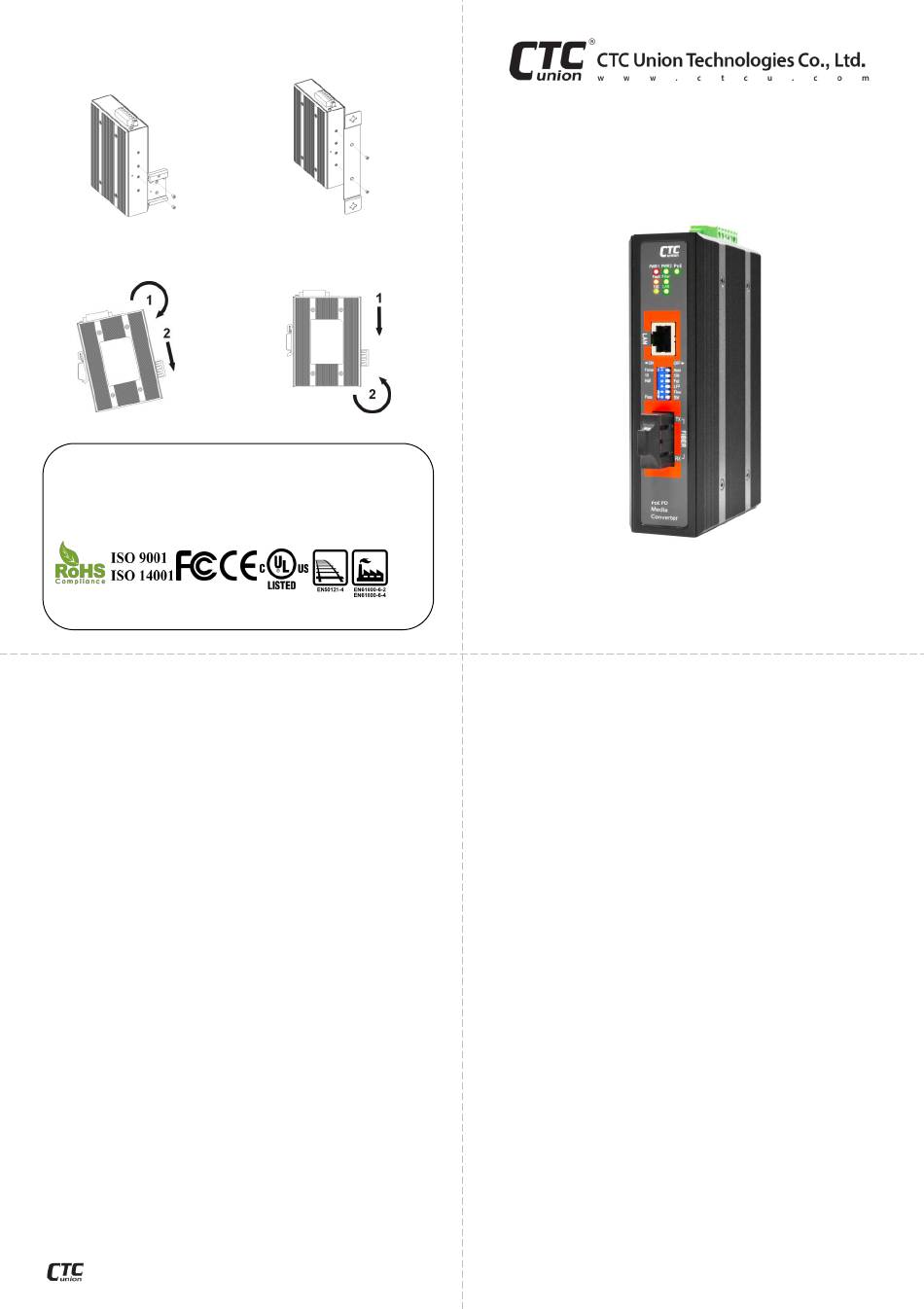

Figure 6. DIN Rail
IMC-100-PD(-E) with DIN Rail bracket has a steel spring in the
upper rail of the bracket. This spring is compressed for mounting
and un-mounting by applying downward force.
Figure 8. Mounting
CTC Union Technologies Co., Ltd.
Far Eastern Vienna Technology Center
(Neihu Technology Park)
8F, No. 60 Zhouzi St., Neihu District, Taipei 114
Taiwan
To download this QIG or a more complete user manual, please visit
http://www.ctcu.com/Industrial/
© 2014 CTC Union Technologies Co., Ltd.
All trademarks are the property of their respective owners.
Technical information in this document is subject to change without notice.
Introduction
IMC-100-PD(-E) are Fast Ethernet PoE PD (Powered Device)
media converters that not only support conversion between
electrical 10/100Base-TX and optical 100Base-FX Ethernet but
also support IEEE 802.3af standard for PoE, enabling PD to obtain
its power over a designated powered device port. Housed in
rugged DIN rail or wall mountable enclosures, these converters
are designed for harsh environments, such as industrial
networking and intelligent transportation systems (ITS) and are
also suitable for many military and utility market applications
where environmental conditions exceed commercial product
specifications. Standard operating temperature range models
(-10°C to 60°C) and wide operating temperature range models
(-40°C to 75°C) fulfill the special needs of industrial automation
applications.
Features
 Redundant dual DC inputs 12/24/48VDC
 IP30 rugged metal housing
 Wide temperature range -40°C~75°C (IMC-100-PD-E)
 Switch/converter mode setting
 Industrial grade EMS, EMI, UL60950-1, EN50121-4,
EN61000-6-2, EN61000-6-4
Specifications
Ethernet Interface
 Standards: IEEE802.3, 802.3u, 802.3x, 802.3af
 Connector: RJ-45 (shielded)
 Speed: 10/100Base-TX (Auto/Forced by DIP)
 Duplex: Full/Half (Auto/Forced by DIP)
 Flow Control: 802.3x (by DIP)
 Store & Forward Switch/Pass through converter (by DIP)
 1024 MAC table (in switch mode)
 MTU: 2046 bytes (switch mode)/9600 bytes (converter mode)
 Link Fault Pass Through (LFP) (enable/disable by DIP)
Optical Interface
 100Base-FX
 Options for SC or ST connectors
 Multimode (2km) 50/125um, 62.5/125um
 Single mode (30km or 50km) 9/125um
 Wavelength: 1310nm (S/M or M/M)
 BiDi option (20km) for Single mode single fiber
www.ctcu.com
Figure 7. Wall Mount
Figure 9.Un-mounting
T +886-2-26591021
F +886-2-26590237
E sales@ctcu.com
- 7 -
- 1 -
Quick Installation Guide
IMC-100-PD
IMC-100-PD (Hardened)
Industrial Grade Fast Ethernet PoE PD Media Converters
sales@ctcu.com
Specifications (cont.)
Power
 Absolute Range: 9.6VDC~58VDC
 Reverse Polarity Protection: Yes
 Dual Power Inputs: Yes
 Connector: Removable terminal block
 Consumption: 2.9W
Mechanical
 Water & Dust Proof: IP30 Protection
 Dimensions: 106 mm (D) x 39 mm (W) x 142 mm (H)
 Mounting: DIN-Rail, Wall Mount (Kits included)
 Weight: 720 g (1.5 lb)
Environmental
 Operating Temperature: -10°C~60°C (IMC-100-PD)
-40°C~75°C (IMC-100-PD-E)
 Storage Temperature: -40°C~85°C
 Humidity: 5%~95% (Non-condensing)
Certifications
 EMC: CE
 EMI (Electromagnetic Interference): FCC, FCC Part 15 Subpart
B Class A, CE EN55022 Class A
 Railway Traffic: EN50121-4
 Immunity for Heavy Industrial Environment: EN61000-6-2
 Emission for Heavy Industrial Environment: EN61000-6-4
 EMS (Electromagnetic Susceptibility) Protection Level:
 EN61000-4-2 (ESD) Level 3, Criteria B
 EN61000-4-3 (RS) Level 3, Criteria A
 EN61000-4-4 (Burst) Level 3, Criteria A
 EN61000-4-5 (Surge) Level 3, Criteria B
 EN61000-4-6 (CS) Level 3, Criteria A
 EN61000-4-8 (PFMF, Magnetic Field) Field Strength:
300A/m, Criteria A
 Safety: UL60950-1
 Shock: EN60068-2-27
 Freefall: EN60068-2-32
 Vibration: EN60068-2-6
 MTBF: 852,727 hours (MIL-HDBK-217)
V1.0
- 2 -
