CTC Union INJ-IG01-PH Quick Installation Manual
CTC Union INJ-IG01-PH Quick Installation Manual

CTC Union INJ-IG01-PH Quick Installation Manual

Industrial grade gigabit ethernet poe injector

Advertisement

Quick Links

Quick Installation Guide
INJ-IG01-PH
INJ-IG01-PHE
Industrial Grade Gigabit Ethernet PoE Injector
sales@ctcu.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the INJ-IG01-PH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CTC Union INJ-IG01-PH

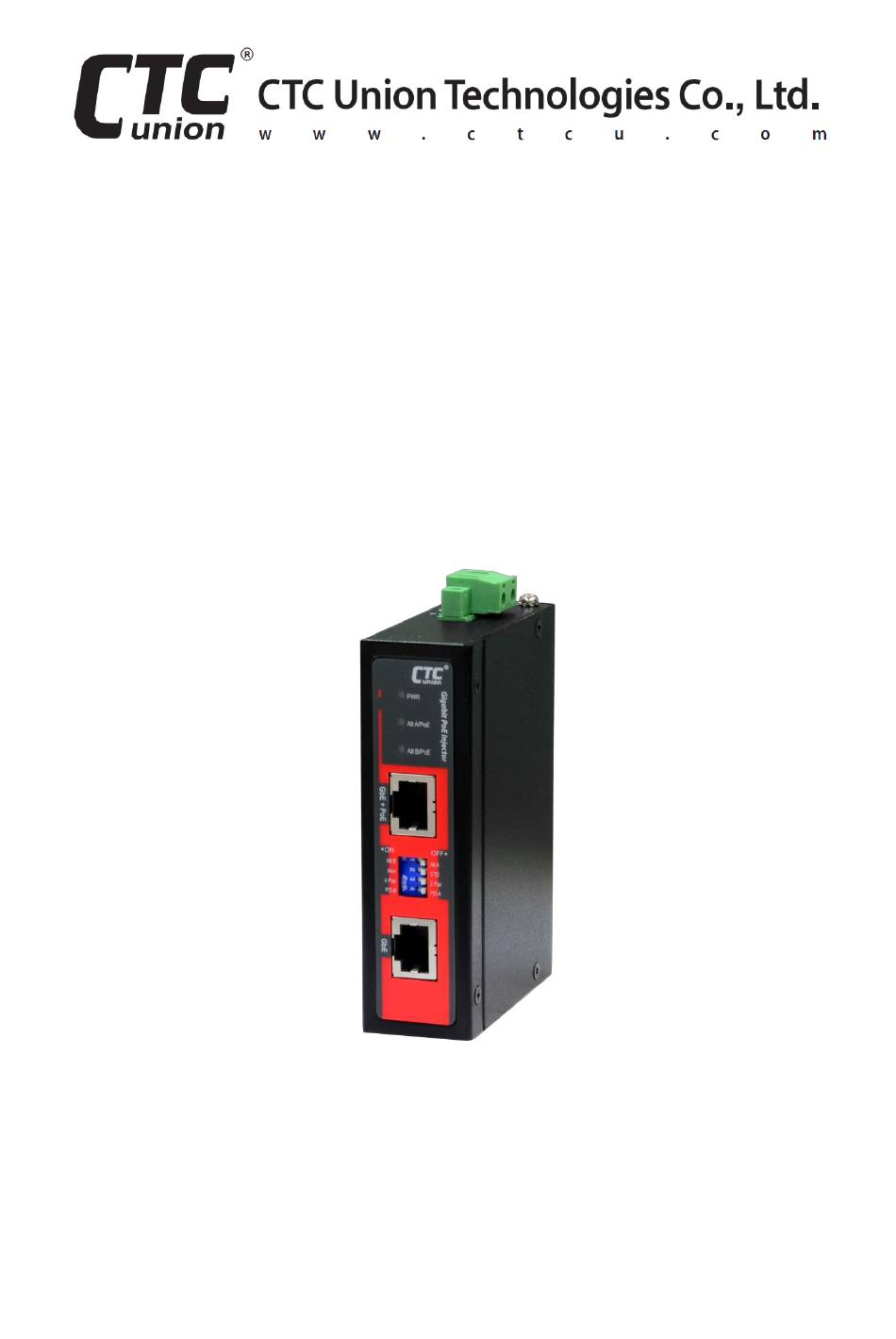

  • Page 1 Quick Installation Guide INJ-IG01-PH INJ-IG01-PHE Industrial Grade Gigabit Ethernet PoE Injector sales@ctcu.com...
  • Page 2 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2020 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
  • Page 3 CTC Union Technologies makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose, nor does CTC Union assume any liability arising out of the application or use of any product and specifically disclaims any and all liability, including without limitation any consequential or incidental damages.
  • Page 4: Table Of Contents

    Table of Contents Introduction .................. 5 Package List ................. 5 Features ..................5 Specifications ................6 .................... 6 THERNET NTERFACE ......................6 OWER ...................... 6 ECHANICAL ....................6 NVIRONMENTAL ....................7 ERTIFICATIONS MTBF (MIL-HDBK-217) ..................7 Panels ................... 8 Connectors ................... 9 RJ-45 E ................
  • Page 5: Introduction

    Introduction INJ-IG01-PH(E) is an industrial grade, single port, gigabit Ethernet PoE (Power over Ethernet) injector. PoE technology describes a system to pass electrical power safely, along with data, on Ethernet cabling. The original IEEE 802.3af-2003 PoE standard provides up to 15.4W of DC power to each device.
  • Page 6: Specifications

    • Dimensions: 70 mm (D) x 30 mm (W) x 103 mm (H) • Mounting: DIN-Rail, Wall Mount (Optional) • Weight: 215 g Environmental • Operating Temperature: -10°C~60°C (INJ-IG01-PH); -40°C~75°C (INJ- IG01-PHE) • Storage Temperature: -40°C~85°C • Humidity: 5%~95% (Non-condensing)
  • Page 7: Certifications

    Certifications • EMC: CE • EMI (Electromagnetic Interference): FCC Part 15 Subpart B Class A, CE • Railway Traffic: EN50121-4 • Immunity for Heavy Industrial Environment: EN61000-6-2 • Emission for Heavy Industrial Environment: EN61000-6-4 • EMS (Electromagnetic Susceptibility) Protection Level: ➢...
  • Page 8: Panels

    Panels Figure 2. Top Panel Figure 1. Front Panel Description Gigabit Ethernet LAN port Gigabit Ethernet & PoE LAN port DIP switch LED indicators Terminal block Grounding connection Grounding sign...
  • Page 9: Connectors

    Connectors INJ-IG01-PH(E) has two standard shielded RJ-45 connectors for Ethernet cable connections. The connector labeled GbE (Data input) will connect to Ethernet switch, while the connector labeled GbE+PoE (Data + PoE output) will connect to PoE PD device such as IP Camera, Access Point, IP Phone, Digital Signage or any other PoE power device.
  • Page 10: Dip Switch Function Descriptions

    DIP Switch Function Descriptions Status Setting Function Description In 2 Pair mode, the injector feeds power on the 1&2, 3&6 wire pairs. In 4 Pair mode, this setting enables the OFF * Alt A injector to use 1&2, 3&6 wire pairs to handle handshaking process.
  • Page 11: Poe Power & Dip Switch Settings

    PoE Power & DIP Switch Settings Alt A Alt B DIP No. Alt A 36W Alt B 36W 15.4W/30W 15.4W/30W 4 Pair Alt A 4 Pair Alt A 4 Pair Alt A 4 Pair Alt A DIP No. PD-A 60W PD-B 60W PD-A 72W PD-B 72W...
  • Page 12: Power Connection

    Power Connection Figure 4. Terminal Block INJ-IG01-PH(E) is powered up by an external power supply (44VDC~57VDC). To connect to the power supply, insert V+ and V- wire into power contacts. Then, tighten the wire-clamp screws to prevent power wires from loosing. If the power supply is connected correctly, then the PWR LED on the front panel will light in green.
  • Page 13: Installation

    Installation The injector comes with both wall mount and DIN rail hardware brackets. When installing the DIN rail bracket, be sure to correctly align the orientation pin. Figure 5. DIN Rail Figure 6. Wall Mounting The injector with DIN Rail bracket has a steel spring in the upper rail of the bracket.
  • Page 14 Version Date Description 2020/9/25 Use new document format...

This manual is also suitable for:

Inj-ig01-phe
