Summary of Contents for CTC Union FRM220-TM-10GMUX

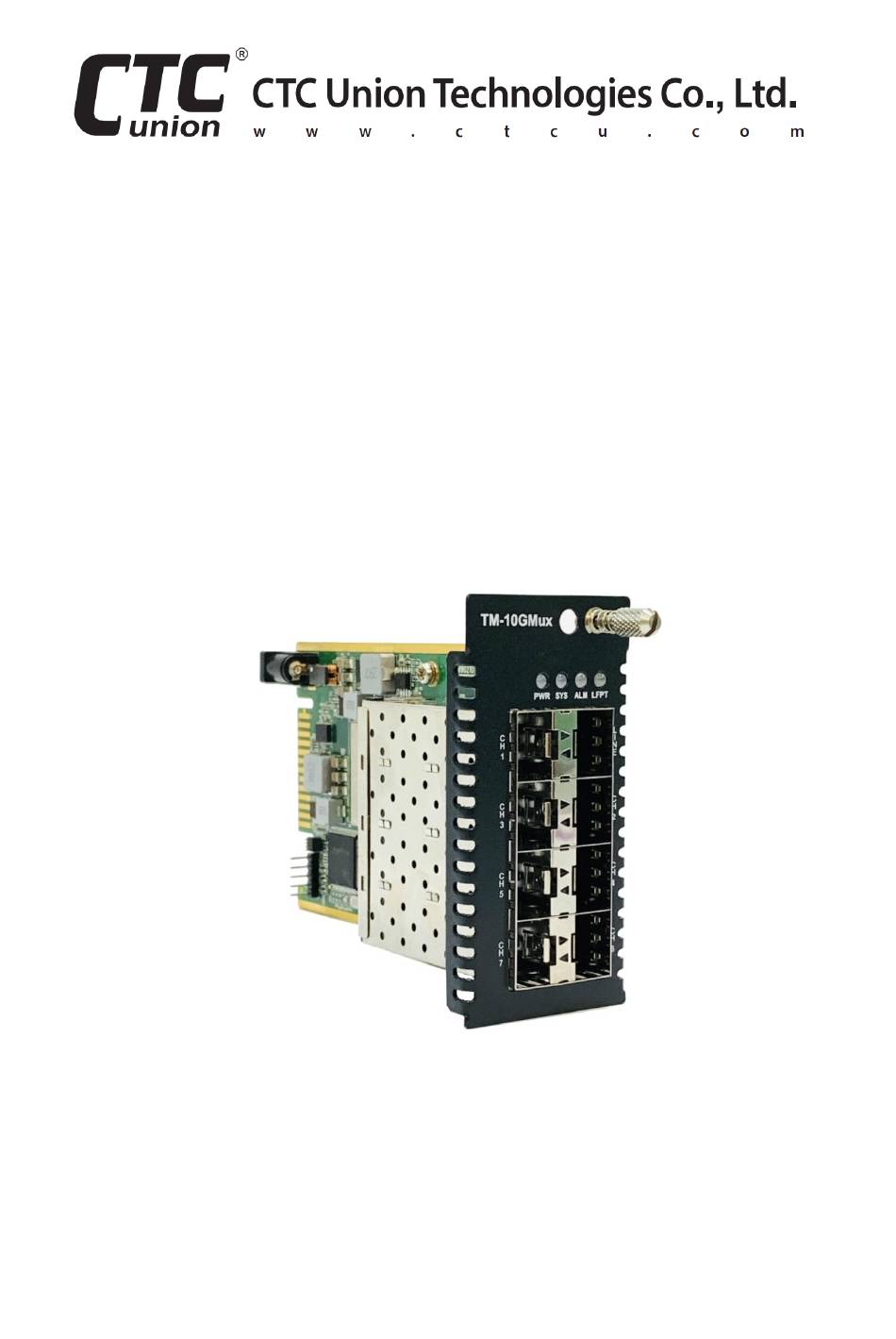

- Page 1 User Guide FRM220-TM-10GMUX 7 x 1GE to 10G Muxponder sales@ctcu.com...
- Page 2 CTC Union Technologies makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose, nor does CTC Union assume any liability arising out of the application or use of any product and specifically disclaims any and all liability, including without limitation any consequential or incidental damages.
- Page 3 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2020 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
-
Page 4: Table Of Contents
Table of Contents Introduction .................. 5 Features ..................5 Specifications ................6 ....................6 ASIC UNCTION ) ................... 6 ERVICE LIENT ) ..................6 ERVICE ....................6 NVIRONMENT Panel ..................... 7 Management Features ..............7 Chassis Installation I ..............8 Chassis Installation II .............. -
Page 5: Introduction
Introduction FRM220-TM-10GMux is a 7 x 1GE to 10G Muxponder that can transport seven separate Gigabit Ethernet data streams into a 10Gbps SFP+ Based trunk port using TDM technology. The 7 x 1GE interfaces use SFP-based access that can accommodate various types of SFP, such as Multi-mode, Single mode and 1Gbps copper SFPs. -
Page 6: Specifications
Specifications Basic Function Multiplexing based on Time Division Multiplexing (TDM) technology 7 x 1.25G SFP ports (Client) and 1 x 10G SFP+ port (Line) 7 x 1000base-x ports at the client side are isolated from each other ... -
Page 7: Panel
LED indicators for LINE, CH2, CH4 & CH6 Management Features When FRM220-TM-10GMux is placed in a stand-alone chassis (such as FRM220-CH02M) with serial management port, these devices also support a text based serial terminal with an easy to use menu system for configuration. -
Page 8: Chassis Installation I
The installation of the FRM220-TM-10GMux card is very straight forward. Once the chassis has been mounted into a 2RU rack space, the FRM220-TM-10GMux cards can be inserted in any order and in any slot of the chassis. To install the chassis card, align the card with the slot in the chassis. -
Page 9: Sfp/Sfp
Installation SFP or SFP+ modules supplied by CTC Union are of the Bale Clasp type. The bale clasp pluggable module has a bale clasp that secures the module into the SFP or SFP+ cage. -
Page 10: Led Indicators
LED Indicators Color Status Description Power is on and the device is active. Green Power is off. Blinking The device is disabled. System is ready. System is not ready. -System is initialing. Green -Firmware Upgrading. Blinking -System abnormal (FPGA cannot boot up normally.) Alarm Amber... -
Page 11: Auto Laser Shutdown
In this way the entire fiber will go dark. Client Side Loopback Test (LBT) Function The loopback capability of FRM220-TM-10GMux is useful for debugging a dysfunctional SFP link (CH1~CH7). In loopback mode, the signal is routed into the Cross Switch circuitry and then routed back to the signal source. -
Page 12: Link Fault Pass-Through (Lfp)
Link Fault Pass-through or LFP is a method of forwarding a link loss from one media to the other over the Muxponder. LFP function of FRM220-TM-10GMux supports both "Line to Client" and "Client to Client" SFP fiber link fault application for troubleshooting purposes. See below for detailed explanations: "Line to Client"... -
Page 13: Client To Client" Lfp Application
"Client to Client" LFP Application Each channel of the client side supports LFP function. With LFP function of a particular channel enabled, if this channel is link down, the far end of the channel will be forced to link down as well. A complete table of "Client to Client"... - Page 14 Fault occurs Link status of LFP Settings (Client) at local or the other end of Local Remote remote side link Remote client Local link down LFP enabled LFP enabled Local client link Remote down Remote client Local link down LFP enabled LFP disabled Local client link Remote...
-
Page 15: Console Management
Connect the serial cable to the CH02M's DB9. Run the terminal emulation program. With power on, press [ESC] or [Enter] to display the "Main Menu" screen. The following is an example. ***************************************** CTC UNION TECHNOLOGIES CO.,LTD. FRM220-TM-10GMux Manager [Alarm ] ***************************************** [Local ] Ver:[1.000-1.001-0.000-0.001]... -
Page 16: L> Line Configuration And Information
After all of the parameter settings have been selected, press "S" from the main menu to save the parameters in non-volatile RAM (NVR). <L> Line Configuration and Information ***************************************** CTC UNION TECHNOLOGIES CO.,LTD. FRM220-TM-10GMux Manager [Alarm ] ***************************************** [Local ] Ver:[1.000-1.001-0.000-0.001] [CH02M S2] <<... -
Page 17: 1>~<7> Ch1~Ch7 Configuration And Information
You can view SFP DDMI information from the upper table. CV Counter This field displays counters of code violation (CV) errors. <1>~<7> CH1~CH7 Configuration and Information ***************************************** CTC UNION TECHNOLOGIES CO.,LTD. FRM220-TM-10GMux Manager [Alarm ] ***************************************** [Local ] Ver:[1.000-1.001-0.000-0.001] [CH02M S2] <<... -
Page 18: A> Alarm Configuration And Information
<A> Alarm Configuration And Information ***************************************** CTC UNION TECHNOLOGIES CO.,LTD. FRM220-TM-10GMux Manager [Alarm ] ***************************************** [Local ] Ver:[1.000-1.001-0.000-0.001] [CH02M S2] << Alarm Configuration And Information >> Alarm Status [Alarm] Alarm Triggers: <L> Line [*] <1> CH1 [*] <2> CH2 [*] <3>... -
Page 19: D> Device Configuration And Information
<D> Device Configuration And Information ***************************************** CTC UNION TECHNOLOGIES CO.,LTD. FRM220-TM-10GMux Manager [Alarm ] ***************************************** [Local ] Ver:[1.000-1.001-0.000-0.001] [CH02M S2] << Device Configuration And Information >> System Status: OK < 1 > Device Active [Enable ] < 2 > Device Reset <... -
Page 20: U> Update With X-Modem
<U> Update with X-Modem Local Device The FRM220-TM-10GMux card may be firmware upgraded using XMODEM when placed in the chassis such as CH02M. The user may use serial terminal such as a notebook computer that has an RS232 port or via a commonly available USB to RS232 adapter. -
Page 21: P> Password Change
[ CH- 02M S2] Remote Device To upgrade firmware of the remote FRM220-TM-10GMux card, you need to upgrade the firmware of your local card first. Once the local card has been upgraded to the newest firmware, then you can use console terminal to upgrade firmware of the remote card. -
Page 22: Appendix 1. Firmware Upgrading Via Nmc Card
Appendix 1. Firmware Upgrading via NMC Card Local Device The FRM220-TM-10GMux card may be firmware upgraded when it is placed in the FRM220 with NMC management card. The user may use a local console connection to the NMC, a remote Telnet (IP) connection, or a Web based (HTTP) connection with any available browser. - Page 23 <L> : FRM220-OPS51M <M> : FRM220-TM-10GMUX <ESC>: Previous Menu Select the line card type (FRM220-TM-10GMux) and local unit. Enter filename. The upgrade should complete in only a couple of minutes. DO NOT disconnect or pullout/insert any other cards during the upgrade process.
- Page 24 Version Date Description 2020/03/16 Preliminary version...
