Summary of Contents for CTC Union STE-10

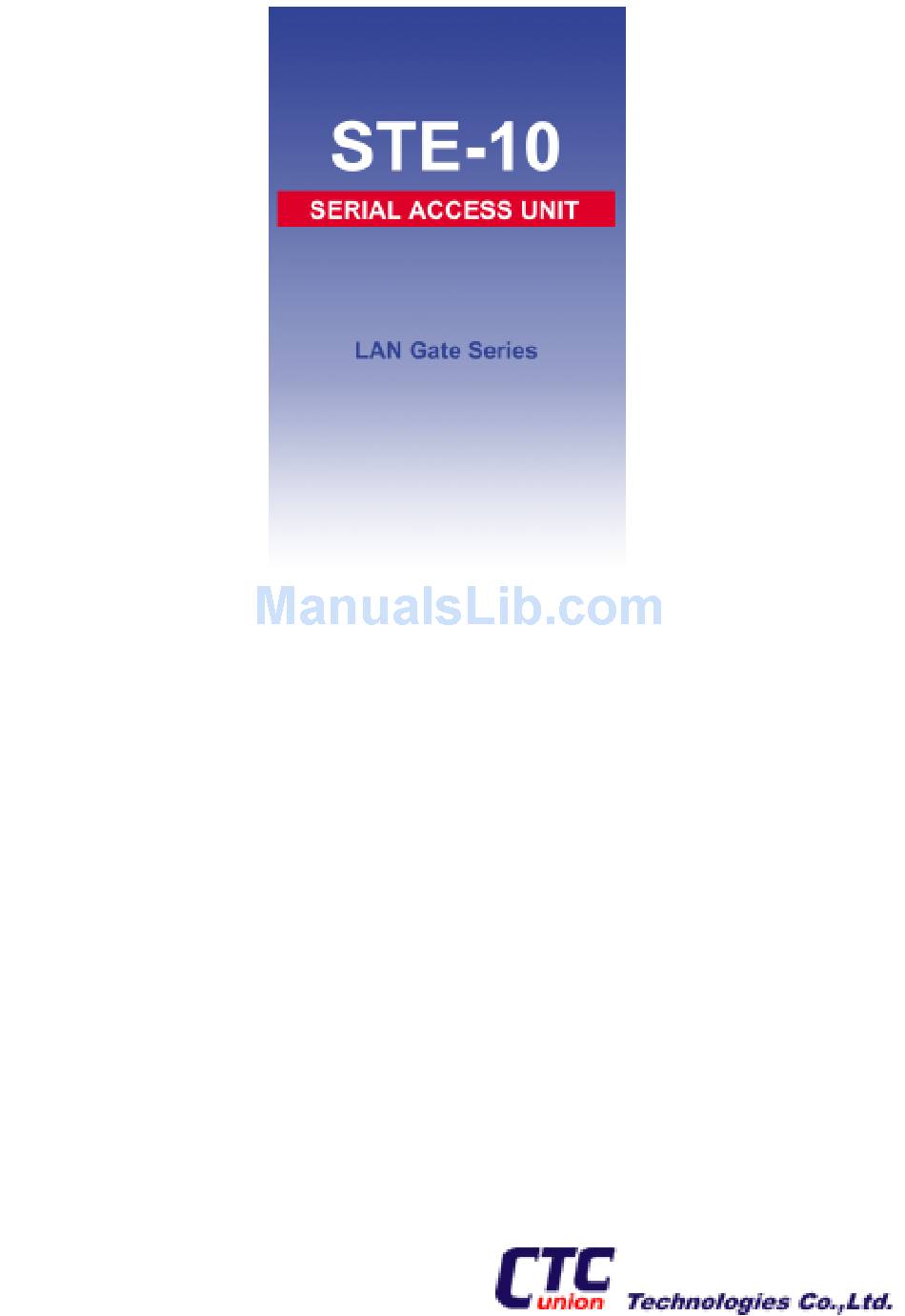

  • Page 1 OPERATION MANUAL...
  • Page 3: Table Of Contents

    Table of Contents CHAPTER 1 1.0 Introduction ..............1.1 Features ………………………………………………….. 1 1.2 Specifications ..............1.3 Configuration ..............1.4 Configuration with Telnet ..........1.5 Raw Data Server Mode ............ 1.6 Telnet IAC Data Server Mode ......... 1.7 Terminal Server Mode ............ 1.8 Auto Connect After Power Up Mode ......
  • Page 4 Table of Contents This page left blank intentionally.
  • Page 5: Introduction

    (RS-232) over Ethernet (10Base-T) using a TCP/IP protocol stack. The STE-10 may operate in either a client mode or as a server, allowing connection of serial data directly over a LAN or WAN.
  • Page 6: Specifications

    Chapter 1: Configuration and Operation 1.2 Specifications Hardware • Intel® 80188 • 256K bytes Flash • 256K bytes DRAM • LAN Interface IEEE802.3 10Base-T Ethernet, RJ-45 connector, DTE connection straight to HUB • Serial interface EIA RS-232 ASYNC, DB25M connector •...
  • Page 7 Chapter 1: Configuration and Operation RS-232 Async Port RS-232 activity D-type 25 pin Male LED indicators Config. Switch Power indicator Connect to AC Adapter Ethernet activity indicator LED Ethernet connection: straight cable to HUB, crossover cable to NIC...
  • Page 8: Configuration

    RS-232 serial port. Connect a serial terminal to the RS-232 port of the STE-10 at 9600 baud, 8 bits, no parity and 1 stop bit. Since the STE-10 is DTE and a terminal is also DTE, please use the provided crossover cable.
  • Page 9 Chapter 1: Configuration and Operation Example of port setting under HyperTerminal™ . An initial message like the one below will be displayed while the port checks whether it is connected to a modem, followed by the main configuration menu display. C H E C K I N G M O D E M A B O U T 1 0 S E C O N D C H E C K I N G M O D E M A B O U T 1 0 S E C O N D A T &...
  • Page 10 Chapter 1: Configuration and Operation If your connection is a direct one, your terminal should display the first menu for the STE-10. S E R I A L D E V I C E S E R V E R S E R I A L D E V I C E S E R V E R a ) .
  • Page 11 Chapter 1: Configuration and Operation At this point you may set the various STE-10 parameters. a) Sets the IP address of the STE-10. Set the IP in the domain where you will place the device. Please make sure the address does not conflict with another device on your network.
  • Page 12: Configuration With Telnet

    Chapter 1: Configuration and Operation 1.4 Configuration with Telnet Once the STE-10 has a valid IP address on your network, configuration may also be accomplished by opening a telnet connection to the STE-10. The same entries apply as with configuration via the serial port.
  • Page 13: Raw Data Server Mode

    Chapter 1: Configuration and Operation 1.5 Raw Data Server Mode In Raw Data Server mode, the STE-10 accepts network connections to the serial port with no Telnet IAC interpretation. This mode provides a clean 8 bit data path from the host session to the serial port.
  • Page 14 A normal Telnet connection will connect to TCP port number 23. This is the method for configuration of the STE-10 via Ethernet. By default, the TCP port number for connection to the RS-232 port is 1998.
  • Page 15 Chapter 1: Configuration and Operation Select b) BAUDRATE S E R I A L B A U D R A T E S E T T I N G S E R I A L B A U D R A T E S E T T I N G a ) .
  • Page 16 Chapter 1: Configuration and Operation When selecting "f", the serial port protocol may be set as follows. S E R I A L P O R T P R O T O C O L S E R I A L P O R T P R O T O C O L a ) .
  • Page 17 Chapter 1: Configuration and Operation If this parameter is enabled, data reception is possible only when there is a valid connection and DSR is provided. This completes the configuration of the serial port for raw server mode. Select q) to return to the previous menu Select q again) to return to the Device Settings menu Select h) to initiate FLASH update U P D A T E E E P R O M D A T A :...
  • Page 18 Chapter 1: Configuration and Operation Windows® includes a Telnet application that may be started by clicking “Start” and selecting “Run”. Type in the name “telnet.exe” and click “OK”. The Telnet application will start. From the Telnet window select Connect => Remote System, a dialogue box will appear.
  • Page 19 This may be a typical UNIX session or a Winsock application for Microsoft Windows® NT or 98/95 host. The host session is then connected to the serial port of the STE-10. In RAW mode, the path is a clean 8 bit data path. In IAC mode, Telnet IAC interpretation is...
  • Page 20: Telnet Iac Data Server Mode

    S U C C E S S ! < < P R E S S A N Y K E Y . . . > > You may now change the switch to "Normal" mode and reboot (power off/on). The STE-10 will boot in Telnet IAC Server Mode and you may establish a connection from a host that will undertake Telnet...
  • Page 21: Terminal Server Mode

    1.7 Terminal Server Mode The client terminal can telnet to the host from the command line or the STE-10 may be setup in Auto Client mode to automatically establish a telnet connection to the host upon power up. In Terminal Server Mode a serial device, such as HyperTerminal™...
  • Page 22 Chapter 1: Configuration and Operation The Async Port Settings menu will be displayed. A S Y N C P O R T S E T T I N G A S Y N C P O R T S E T T I N G a ) .
  • Page 23 <192.168.2.254> netmask <255.255.255.0> STE-10>telnet 192.168.2.2 FreeBSD/i386 (FreeBSD.ctcu.com.tw) (ttyp1) login: In our example, we have made a telnet connection to a UNIX host. The STE-10 will even access a host on a different network if the "gateway" has been set.
  • Page 24: Auto Connect After Power Up Mode

    Ethernet. In the above application example, the “RAW” mode STE-10 will establish an Ethernet link to the host’s RS-232 port. The STE-10 in “AUTO TELNET” mode will automatically establish a Telnet connection to the “RAW” server. The result is a transparent RS-232 path over Ethernet.
  • Page 25 Apply and save the settings. Switch the device to “Normal” mode and reboot (power off/on). The STE-10 will now automatically login a Telnet connection to the remote STE-10 to establish your RS-232 connection over...
  • Page 26 Chapter 1: Configuration and Operation This page left blank intentionally.
  • Page 27: Application Examples

    The configuration settings for the STE-10 are very straight forward. Configure the STE-10 from the serial port to set IP address, mask, gateway, etc. Set the mode to Raw Data Server and set the data port to 9600,8,N,1 with no handshaking. Then connect the device as shown in the above figure.
  • Page 28: Terminal Server Application

    Chapter 2: Application Examples View of ETU01-A Terminal Mode via telnet connection and STE-10. 2.2 Terminal Server Application Terminal Server, allows Telnet connection via serial terminal. Refer to the configuration setup for terminal server mode starting in Section 1.7.
  • Page 29 Chapter 2: Application Examples The STE-10 is assigned an IP address for the domain and the serial port is configured according to the requirements of the serial terminal. In our example, we used a PC with Windows®, running HyperTerminal™ and a serial connection on COM1. The port settings were 9600, 8 bits, no parity, one stop bit, and no flow control.
  • Page 30: Auto Connect Application

    Auto Telnet and Raw Mode Access provides transparent connection. The right side STE-10 unit is configured in Raw Mode, set an IP address and port number, with serial port configured for the ETU01-A (9600,8,N,1 no handshaking). The left side STE-10 Terminal Server is configured in auto Telnet mode, pointing to the right side's IP address and port number.
  • Page 31 Terminal display with serial connection over Ethernet. So now we leave it up to you. If you have serial devices and Ethernet, then the STE-10 may provide just the solution you've been dreaming of.
  • Page 32 Chapter 2: Application Examples This page left blank intentionally.
  • Page 33: Appendix

    Appendix A.1 RS-232 Port Pin Definition V.24/RS-232 INTERFACE PIN ASSIGNMENT CIRCUIT FUNCTION DIRECTION FGND Protective GND Transmit data Receive data Request to send Clear to send Data set ready Signal ground Carrier detect Transmit clock Receive clock Data term ready DTE xmit clock A.2 RJ-45 Ethernet Pin Definition Tx (+)
  • Page 34: Null Modem Cable Pinout

    A.3 Null Modem Cable Pinout DB25(Female) DB25(Female) <===========> 3 <===========> 2 <===========> 5 <===========> 4 <===========> 20 <===========> 7 20 <===========> 6 note: This cable supplied with unit. Use it to connect STE-10 to DTE device, such as PC's COM port.
  • Page 36 CTC Union Technologies Co., Ltd. Far Eastern Edison Science and Technologies Center (Nei-Hu HI-TEC Park) 6F-3, Lane 360, Nei-Hu Road, Section 1 Nei-Hu, Taipei, Taiwan Phone:(886) 2.2659.1021 (Rep) Fax:(886) 2.2799.1355 ctcu@ms2.hinet.net http://www.ctcu.com E-mail:...
