Renesas R0E53054ECFK60 User Manual

R0E53054ECFK60
Converter Board for Connecting R8C/54E, R8C/54F, R8C/54G and R8C/54H Groups 48-pin 0.5mm pitch LQFP
1. Outline
The R0E53054ECFK60 is a converter board for connecting the
flexible cable R0E001000FLX10 to a foot pattern for 48-pin
0.5mm pitch LQFP (PLQP0048KB-A).
2. Package Components
Check to see if the R0E53054ECFK60 package has all the
following contents before using this product.
(1) R0E53054ECFK60 converter board............................ 1 pc.
(2) YQPACK048SD
(made by Tokyo Eletech Corporation)
(3) NQPACK048SD
(made by Tokyo Eletech Corporation)
(4) YQ-GUIDE
(made by Tokyo Eletech Corporation)
(5) R0E53054ECFK60 User's Manual (this manual)
3. Specifications
Table 1 Specifications
Applicable package
Insertion/removal
iterations of connector
4. Usage (See Figure 2)
The R0E53054ECFK60 can be used for debugging and
on-board evaluation in
NQPACK048SD on the user system.
(1) For debugging
Mount the NQPACK048SD on the foot pattern of the user
system and attach the YQPACK048SD on it. In addition,
connect the R0E53054ECFK60 to the YQPACK048SD,
and then connect the flexible cable R0E001000FLX10 of
the emulator to
R0E53054ECFK60.
(2) For on-board evaluation
Mount an MCU with on-chip flash memory or one-time
PROM and the HQPACK048SD (not included) in order
on the NQPACK048SD on the user system.
Before using the R0E53054ECFK60, be sure to read the
precautions on page 3.
* NQPACK, YQPACK, YQSOCKET, YQ-GUIDE, HQPACK, TQPACK, TQSOCKET, CSSOCKET, CSPLUG/W and
LSPACK are trademarks of Tokyo Eletech Corporation.
R20UT0856EJ0100 Rev.1.00
Oct 16, 2011
(See Figure 1)
................ 1 pc.
.............. 1 pc.
.....................4 pcs.
PLQP0048KB-A
(48-pin 0.5mm pitch LQFP)
50 times guaranteed
common by mounting
the upper connector
R0E53054ECFK60
converter board
YQ-GUIDE (×4)

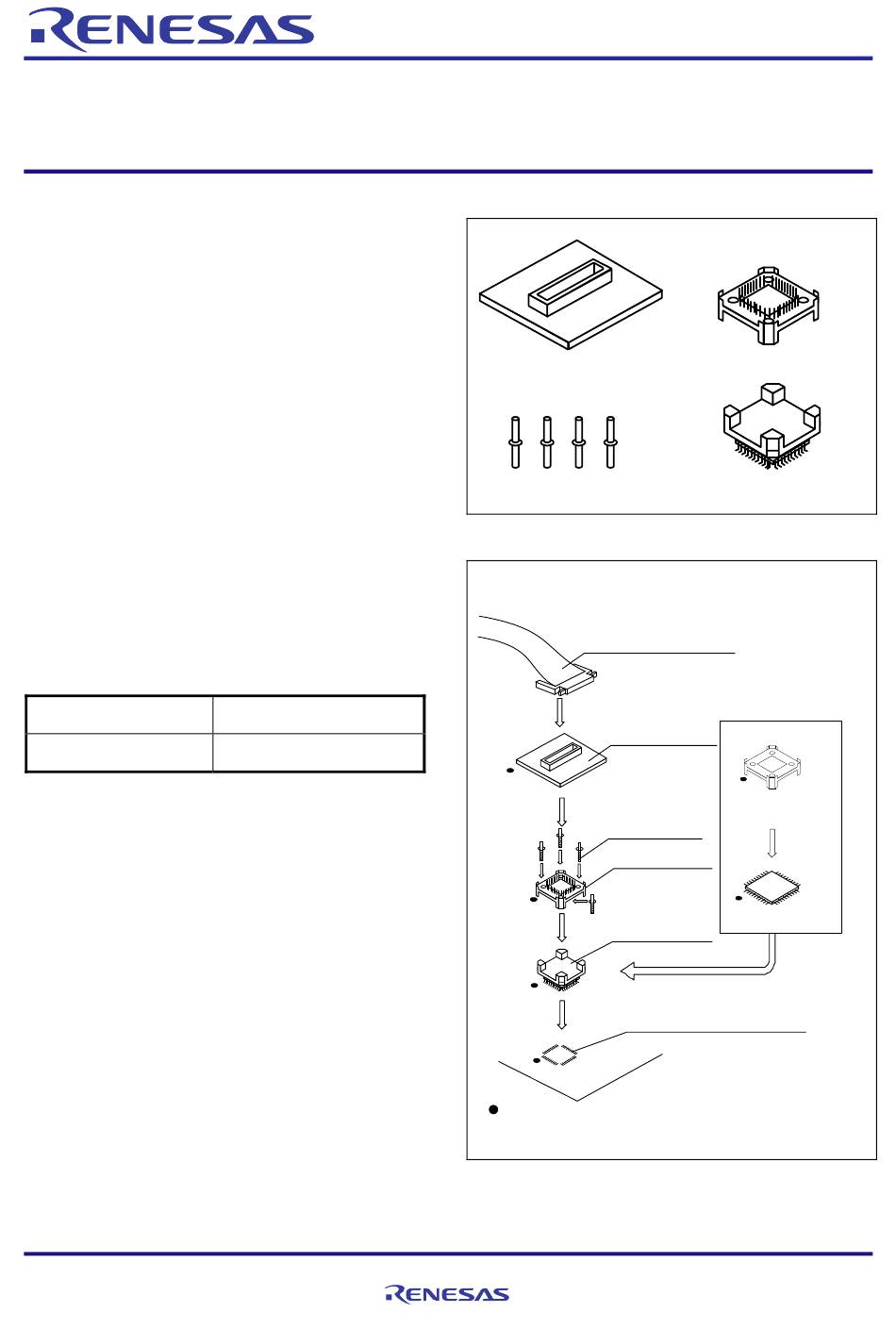

Figure 1 Package components of the R0E53054ECFK60
(1) For debugging
the
of the
:No.1 pin
Be sure to align the pins.
Figure 2 Usage of the R0E53054ECFK60
User's Manual
R20UT0856EJ0100
YQPACK048SD
NQPACK048SD
Flexible cable
R0E001000FLX10
(2) For on-board
evaluation
R0E53054ECFK60
HQPACK048SD
(not included)
YQ-GUIDE (×4)
YQPACK048SD
FLASH MCU, etc.
NQPACK048SD
48-pin 0.5mm pitch foot pattern
Rev.1.00
Oct 16, 2011
Page 1 of 4
