Renesas R0E53036ACFG40 User Manual

R0E53036ACFG40
Converter Board for Connecting R8C/36A and /36C Groups 64-pin 0.8mm pitch LQFP
1. Outline
The R0E53036ACFG40 is a converter board for connecting the
signals of the MCU unit R0E521300MCU00 for R8C Family
R8C/3x Series to a foot pattern for 64-pin 0.8mm pitch LQFP
of R8C/36A and /36C Groups.
2. Package Components (See Figure 1)
Check to see if the R0E53036ACFG40 package has all the
following contents before using this product.
(1) R0E53036ACFG40 converter board ........................... 1 pc.
(2) YQPACK064SA
(made by Tokyo Eletech Corporation)
(3) NQPACK064SA160
(made by Tokyo Eletech Corporation)
(4) YQ-GUIDE
(made by Tokyo Eletech Corporation)
(5) R0E53036ACFG40 User's Manual (this manual)
3. Specifications
Table 1 Specifications
Applicable package
Insertion/removal
iterations of connector
4. Usage (See Figure 2)
The R0E53036ACFG40 can be used for debugging and
on-board evaluation in
NQPACK064SA160 on the user system.
(1) For debugging
Mount the NQPACK064SA160 on the foot pattern of the
user system and attach the YQPACK064SA on it. In
addition, connect
YQPACK064SA, and then connect the flexible cable
R0E001000FLX10 of the emulator to the upper connector
of the R0E53036ACFG40.
(2) For on-board evaluation
Mount an MCU with on-chip flash memory or one-time
PROM and the HQPACK064SA160 (not included) in
order on the NQPACK064SA160 on the user system.
Before using the R0E53036ACFG40, be sure to read the
precautions on page 3.
* NQPACK, YQPACK, YQSOCKET, YQ-GUIDE, HQPACK, TQPACK, TQSOCKET, CSSOCKET, CSPLUG/W and
LSPACK are trademarks of Tokyo Eletech Corporation.
REJ10J1897-0200 Rev.2.00
Apr 16, 2010
................ 1 pc.
........ 1 pc.
.....................4 pcs.
PLQP0064GA-A
(64-pin 0.8mm pitch LQFP)
50 times guaranteed
common by mounting
the R0E53036ACFG40
R053036ACFG40
YQ-GUIDE (×4)

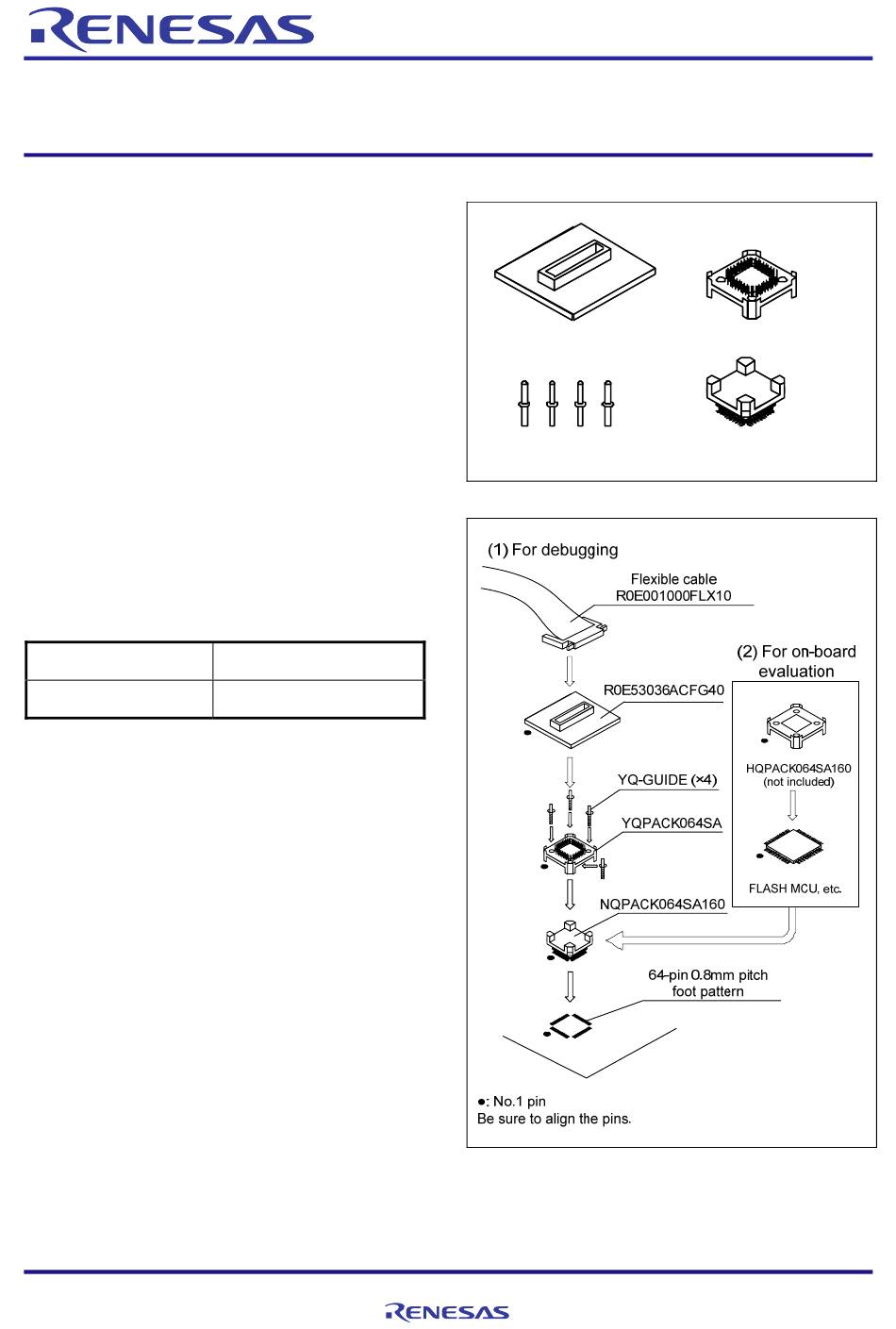

Figure 1 Package components of the R0E53036ACFG40
the
to the
Figure 2 Usage of the R0E53036ACFG40
User's Manual
REJ10J1897-0200
Rev.2.00
Apr 16, 2010
YQPACK064SA
NQPACK064SA160
Page 1 of 4
