Renesas R0E53034ACFK60 User Manual

R0E53034ACFK60
Converter Board for Connecting R8C/34C Group 48-pin 0.5mm pitch LQFP
1. Outline
The R0E53034ACFK60 is a converter board for connecting the
signals of the MCU unit R0E521300MCU00 for R8C Family
R8C/3x Series to a foot pattern for 48-pin 0.5mm pitch LQFP
of R8C/34C Group.
2. Package Components (See Figure 1)
Check to see if the R0E53034ACFK60 package has all the
following contents before using this product.
(1) R0E53034ACFK60 converter board ........................... 1 pc.
(2) YQPACK048SD
(made by Tokyo Eletech Corporation)
(3) NQPACK048SD
(made by Tokyo Eletech Corporation)
(4) YQ-GUIDE
(made by Tokyo Eletech Corporation)
(5) R0E53034ACFK60 User's Manual (this manual)
3. Specifications
Table 1 Specifications
Applicable package
Insertion/removal
iterations of connector
4. Usage (See Figure 2)
The R0E53034ACFK60 can be used for debugging and
on-board evaluation in
NQPACK048SD on the user system.
(1) For debugging
Mount the NQPACK048SD on the foot pattern of the user
system and attach the YQPACK048SD on it. In addition,
connect the R0E53034ACFK60 to the YQPACK048SD,
and then connect the flexible cable R0E001000FLX10 of
the emulator to
R0E53034ACFK60.
(2) For on-board evaluation
Mount an MCU with on-chip flash memory or one-time
PROM and the HQPACK048SD (not included) in order
on the NQPACK048SD on the user system.
Before using the R0E53034ACFK60, be sure to read the
precautions on page 3.
* NQPACK, YQPACK, YQSOCKET, YQ-GUIDE, HQPACK, TQPACK, TQSOCKET, CSSOCKET, CSPLUG/W and
LSPACK are trademarks of Tokyo Eletech Corporation.
REJ10J1973-0200 Rev.2.00
Apr 16, 2010
................ 1 pc.
.............. 1 pc.
.....................4 pcs.
PLQP0048KB-A
(48-pin 0.5mm pitch LQFP)
50 times guaranteed
common by mounting
the upper connector
R0E53034ACFK60
YQ-GUIDE (×4)

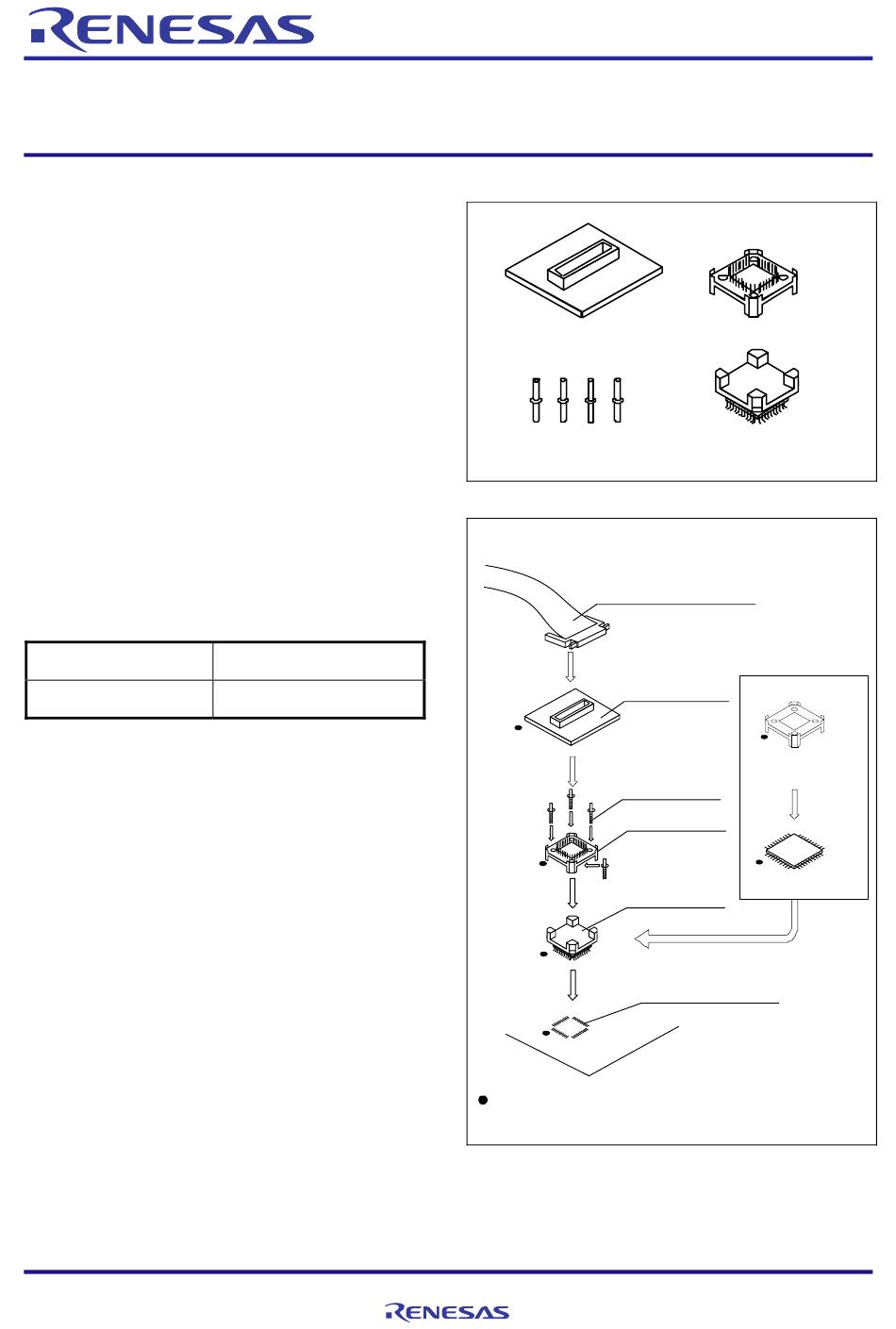

Figure 1 Package components of the R0E53034ACFK60
(1) For debugging
the
of the
: No.1 pin
Be sure to align the pins.
Figure 2 Usage of the R0E53034ACFK60
User's Manual
REJ10J1973-0200
Apr 16, 2010
YQPACK048SD
NQPACK048SD
Flexible cable
R0E001000FLX10
(2) For on-board
evaluation
R0E53034ACFK60
HQPACK048SD
(not included)
YQ-GUIDE (×4)
YQPACK048SD
FLASH MCU, etc.
NQPACK048SD
48-pin 0.5mm pitch
foot pattern
Page 1 of 4
Rev.2.00
