R0E53032GCSJC0
Converter Board for Connecting R8C/32G and /32H Groups 20-pin 0.65mm pitch LSSOP
1. Outline
The R0E53032GCSJC0 is a converter board for connecting the
signals of the MCU unit R0E521300MCU00 for R8C Family
R8C/3x Series to a foot pattern for 20-pin 0.65mm pitch
LSSOP of R8C/32G and /32H Groups.
2. Package Components (See Figure 1)
Check to see if the R0E53032GCSJC0 package has all the
following contents before using this product.
(1) R0E53032GCSJC0 converter board............................ 1 pc.
(2) YSPACK20BG
(made by Tokyo Eletech Corporation)
(3) NSPACK20BG
(made by Tokyo Eletech Corporation)
(4) YS–GUIDE
(made by Tokyo Eletech Corporation)
(5) R0E53032GCSJC0 User's Manual (this manual)
3. Specifications
Table 1 Specifications
Applicable package
Insertion/removal
iterations of connector
4. Usage (See Figure 2)
The R0E53032GCSJC0 can be used for debugging and
on-board
evaluation
in
NSPACK20BG on the user system.
(1) For debugging
Mount the NSPACK20BG on the foot pattern of the user
system and attach the YSPACK20BG on it. In addition,
connect the R0E53032GCSJC0 to the YSPACK20BG,
and then connect the flexible cable R0E001000FLX10 of
the
emulator
to
R0E53032GCSJC0.
(2) For on-board evaluation
Mount an MCU with on-chip flash memory or one-time
PROM and the HSPACK20BG (not included) in order on
the NSPACK20BG on the user system.
Before using the R0E53032GCSJC0, be sure to read the
precautions on page 3.
* NQPACK, YQPACK, YQSOCKET, YS–GUIDE, HQPACK, TQPACK, TQSOCKET, CSSOCKET, CSPLUG/W and
LSPACK are trademarks of Tokyo Eletech Corporation.
R20UT0253EJ0100 Rev.1.00
Oct 16, 2010
.................. 1 pc.
................ 1 pc.
.....................2 pcs.
PLSP0020JB-A
(20-pin 0.65mm pitch LSSOP)
50 times guaranteed
common
by
mounting
the
upper
connector
R053032GCSJC0
YS-GUIDE (×2)

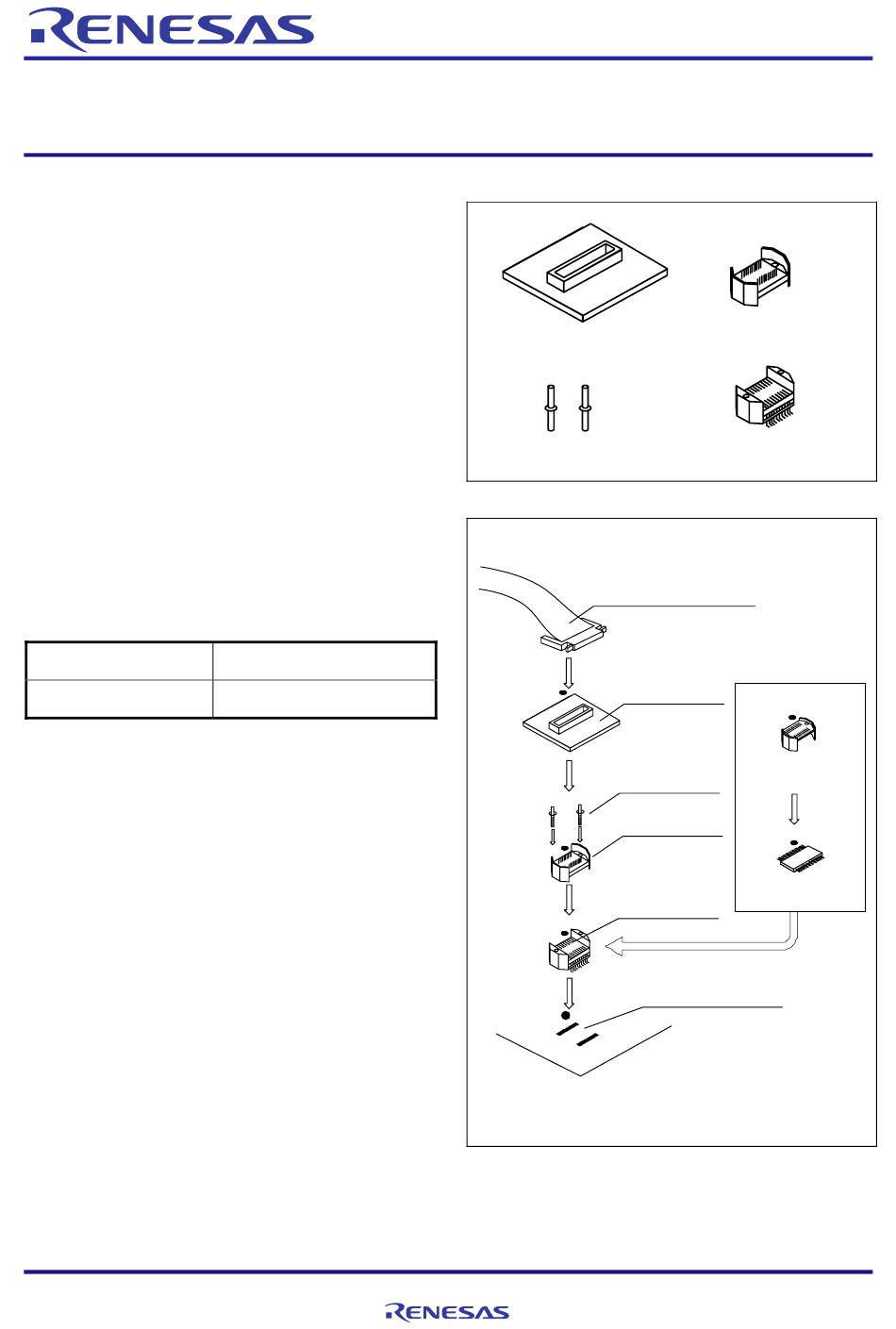

Figure 1 Package components of the R0E53032GCSJC0
(1) For debugging
the
of
the
●:No.1 pin
Be sure to align the pins.
Figure 2 Usage of the R0E53032GCSJC0
User's Manual
R20UT0253EJ0100
Oct 16, 2010
YSPACK20BG
NSPACK20BG
Flexible cable
R0E001000FLX10
(2) For on board
evaluation
R0E53032GCSJC0
HSPACK20BG
YS-GUIDE(×2)
(not included)
YSPACK20BG
FLASH MCU etc.
NSPACK20BG
20-pin 0.65mm pitch foot
pattern
Page 1 of 4
Rev.1.00
