Renesas R0E420000CFJ30 User Manual

R0E420000CFJ30
Converter Board for Connecting H8S/Tiny Series 80-pin 0.65mm pitch LQFP

1. Outline

The R0E420000CFJ30 is a converter board for connecting the
flexible cable R0E001000FLX10 to a foot pattern for 80-pin
0.65mm pitch LQFP (PLQP0080JA-A).

2. Package Components

Check to see if the R0E420000CFJ30 package has all the
following contents before using this product.
(1) R0E420000CFJ30 converter board ............................. 1 pc.
(2) YQPACK080SB
(made by Tokyo Eletech Corporation)
(3) NQPACK080SB
(made by Tokyo Eletech Corporation)
(4) YQ-GUIDE
(made by Tokyo Eletech Corporation)
(5) R0E420000CFJ30 User's Manual (this manual)

3. Specifications

Table 1 Specifications
Applicable package
Insertion/removal
iterations of connector
4. Usage (See Figure 2)
The R0E420000CFJ30 can be used for debugging and on-board
evaluation in common by mounting the NQPACK080SB on the
user system.
(1) For debugging
Mount the NQPACK080SB on the foot pattern of the user
system and attach the YQPACK080SB on it. In addition,
connect the R0E420000CFJ30 to the YQPACK080SB,
and then connect the flexible cable R0E001000FLX10 of
the emulator to
R0E420000CFJ30.
(2) For on-board evaluation
Mount an MCU with on-chip flash memory or one-time
PROM and the HQPACK080SB160 (not included) in
order on the NQPACK080SB on the user system.
Before using the R0E420000CFJ30, be sure to read the
precautions on page 3.
* NQPACK, YQPACK, YQSOCKET, YQ-GUIDE, HQPACK, TQPACK, TQSOCKET, CSSOCKET, CSPLUG/W and
LSPACK are trademarks of Tokyo Eletech Corporation.
REJ10J1821-0200 Rev.2.00
Apr 16, 2010
(See Figure 1)
................ 1 pc.
.............. 1 pc.
.....................4 pcs.
PLQP0080JA-A
(80-pin 0.65mm pitch LQFP)
50 times guaranteed
the upper connector
R0E420000CFJ 30
converter board
YQ-GUIDE (×4)

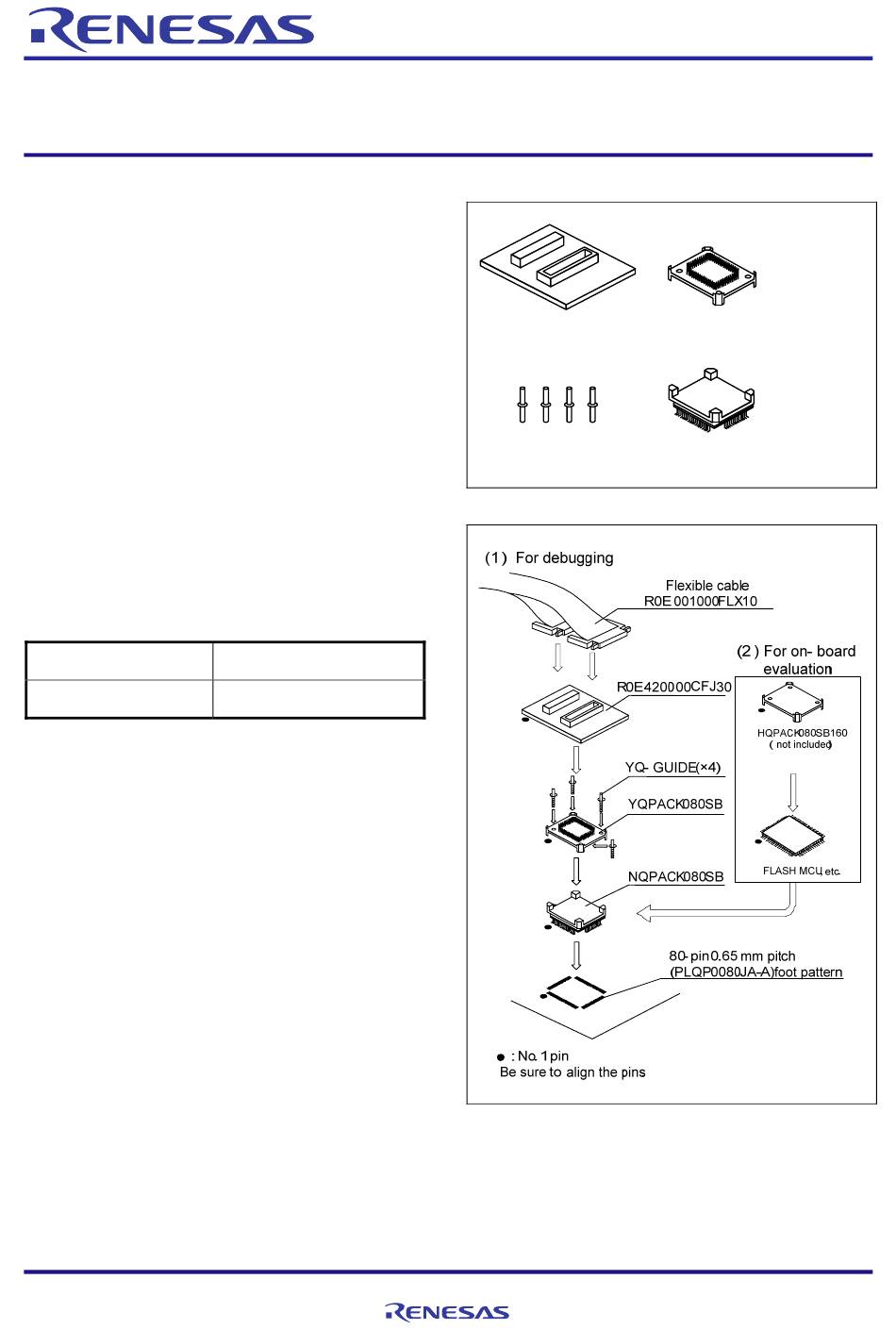

Figure 1 Package components of the R0E420000CFJ30
of the
Figure 2 Usage of the R0E420000CFJ30
User's Manual
REJ10J1821-0200
Rev.2.00
Apr 16, 2010
YQPACK 080 SB
NQPACK 080 SB
Page 1 of 4
