Renesas R0E420000CFK40 User Manual

R0E420000CFK40
Converter Board for Connecting H8S/Tiny Series 64-pin 0.5mm pitch LQFP
1. Outline
The R0E420000CFK40 is a converter board for connecting the
flexible cable R0E001000FLX10 to a foot pattern for 64-pin
0.5mm pitch LQFP (PLQP0064KB-A).
2. Package Components
Check to see if the R0E420000CFK40 package has all the
following contents before using this product.
(1) R0E420000CFK40 converter board ............................ 1 pc.
(2) YQPACK064SD
(made by Tokyo Eletech Corporation)
(3) NQPACK064SD-ND
(made by Tokyo Eletech Corporation)
(4) YQ-GUIDE
(made by Tokyo Eletech Corporation)
(5) R0E420000CFK40 User's Manual (this manual)
3. Specifications
Table 1 Specifications
Applicable package
Insertion/removal
iterations of connector
4. Usage (See Figure 2)
The R0E420000CFK40 can be used for debugging and
on-board evaluation in
NQPACK064SD-ND on the user system.
(1) For debugging
Mount the NQPACK064SD-ND on the foot pattern of the
user system and attach the YQPACK064SD on it. In
addition, connect
YQPACK064SD, and then connect the flexible cable
R0E001000FLX10 of the emulator to the upper connector
of the R0E420000CFK40.
(2) For on-board evaluation
Mount an MCU with on-chip flash memory or one-time
PROM and the HQPACK064SD (not included) in order
on the NQPACK064SD-ND on the user system.
Before using the R0E420000CFK40, be sure to read the
precautions on page 3.
* NQPACK, YQPACK, YQSOCKET, YQ-GUIDE, HQPACK, TQPACK, TQSOCKET, CSSOCKET, CSPLUG/W and
LSPACK are trademarks of Tokyo Eletech Corporation.
REJ10J1908-0200 Rev.2.00
Apr 16, 2010
(See Figure 1)
................ 1 pc.
....... 1 pc.
.....................4 pcs.
PLQP0064KB-A
(64-pin 0.5mm pitch LQFP)
50 times guaranteed
common by mounting
the R0E420000CFK40
R0E420000CFK 40
converter board
YQ-GUIDE (×4)

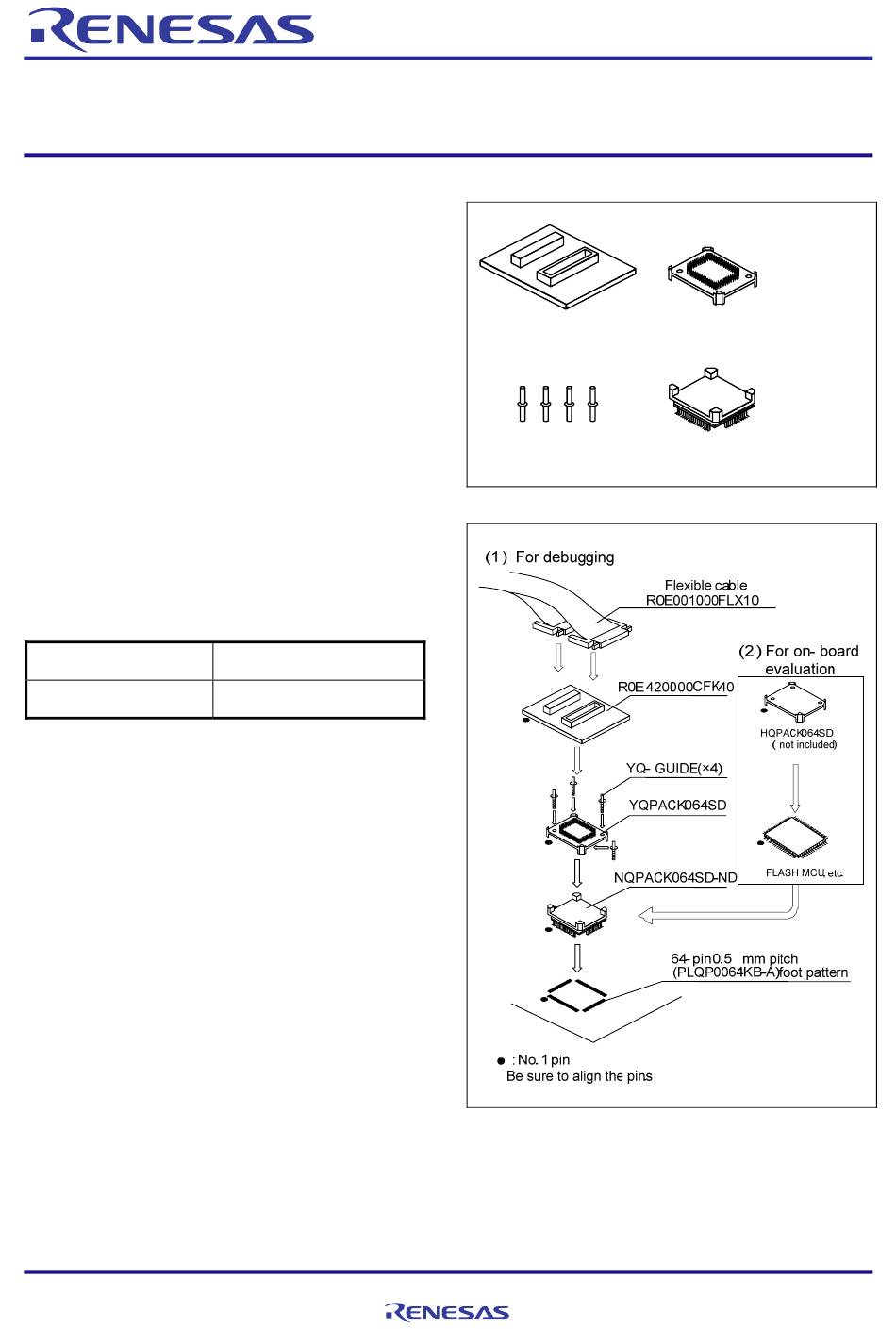

Figure 1 Package components of the R0E420000CFK40
the
to the
Figure 2 Usage of the R0E420000CFK40
User's Manual
REJ10J1908-0200
Rev.2.00
Apr 16, 2010
YQPACK 064 SD
NQPACK 064 SD-ND
