NOTE TO INSTALLER: Please leave this information with the Maintenance Department.
SHOULD YOU EXPERIENCE DIFFICULTY WITH THE INSTALLATION OF THIS
MODEL PLEASE CALL:
CUSTOMER SUPPORT:

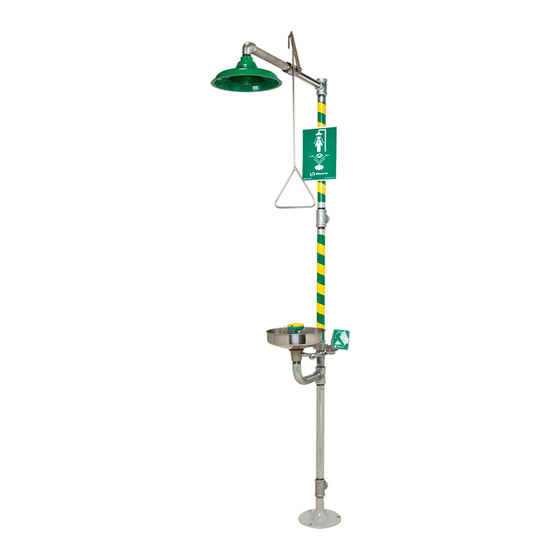

LOCATION OF UNIT: The Model 8300 AXION Emergency Shower should be
installed in close proximity to potential accident areas. It should be clearly
identified, free from obstructions and easy to access.
SUPPLY LINE: The minimum recommended line size is 1 1/4" G with 30-90 psi (2-
6 ATM) flowing pressure. Where sediment or mineral content is a problem, an inlet
filter is recommended.
PLUMBING CONNECTIONS: The inlet supply is female 1 1/4" G. Waste outlet is
female 1 1/4" G.
11/24
Bachweg 3, 3400 Burgdorf, Switzerland
E-mail:
info@haws.ch
Model 8300 AXION
(Item Number 10004736)
Shower & Eye/Face Wash
+41 (0) 34 420 60 00
Model 8300 AXION
INSTALLATION, OPERATION
MAINTENANCE INSTRUCTIONS
website:
www.haws.ch
NO. OOO2076521 (0)
&
No. 02080162 (1)
Page 1 of 5
Advertisement
Related Manuals for Haws 8300 AXION
Summary of Contents for Haws 8300 AXION
- Page 1 MODEL PLEASE CALL: +41 (0) 34 420 60 00 CUSTOMER SUPPORT: LOCATION OF UNIT: The Model 8300 AXION Emergency Shower should be installed in close proximity to potential accident areas. It should be clearly identified, free from obstructions and easy to access.
-
Page 2: Installation Procedure
Assemble the sign onto the unit. Use the clamps provided to mount the sign onto the upright. The sign should be positioned for maximum visibility. STEP 8: Before connecting the supply water line to the emergency shower, FLUSH THE LINE THOROUGHLY. 11/24 Model 8300 AXION Page 2 of 5... -
Page 3: Troubleshooting
For more information about Haws products, see our website: www.haws.ch Corporation – All Rights Reserved ® © 2024 Haws ® HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation. 11/24 Model 8300 AXION Page 3 of 5... -
Page 4: Parts Breakdown
12/11/2024 SCALE: 1:16 DRAWING TYPE: PARTS BREAKDOWN SIZE: A SHEET 1 OF 1 © 2024 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation. PAGE 4 OF 5... - Page 5 DIMENSIONS IN BRACKETS, IN DRAWING SPACE, ARE METRIC [mm] APPROVED: DATE: 12/11/2024 SCALE: 1:20 DRAWING TYPE: INSTALLATION SIZE: A SHEET 1 OF 1 © 2024 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
