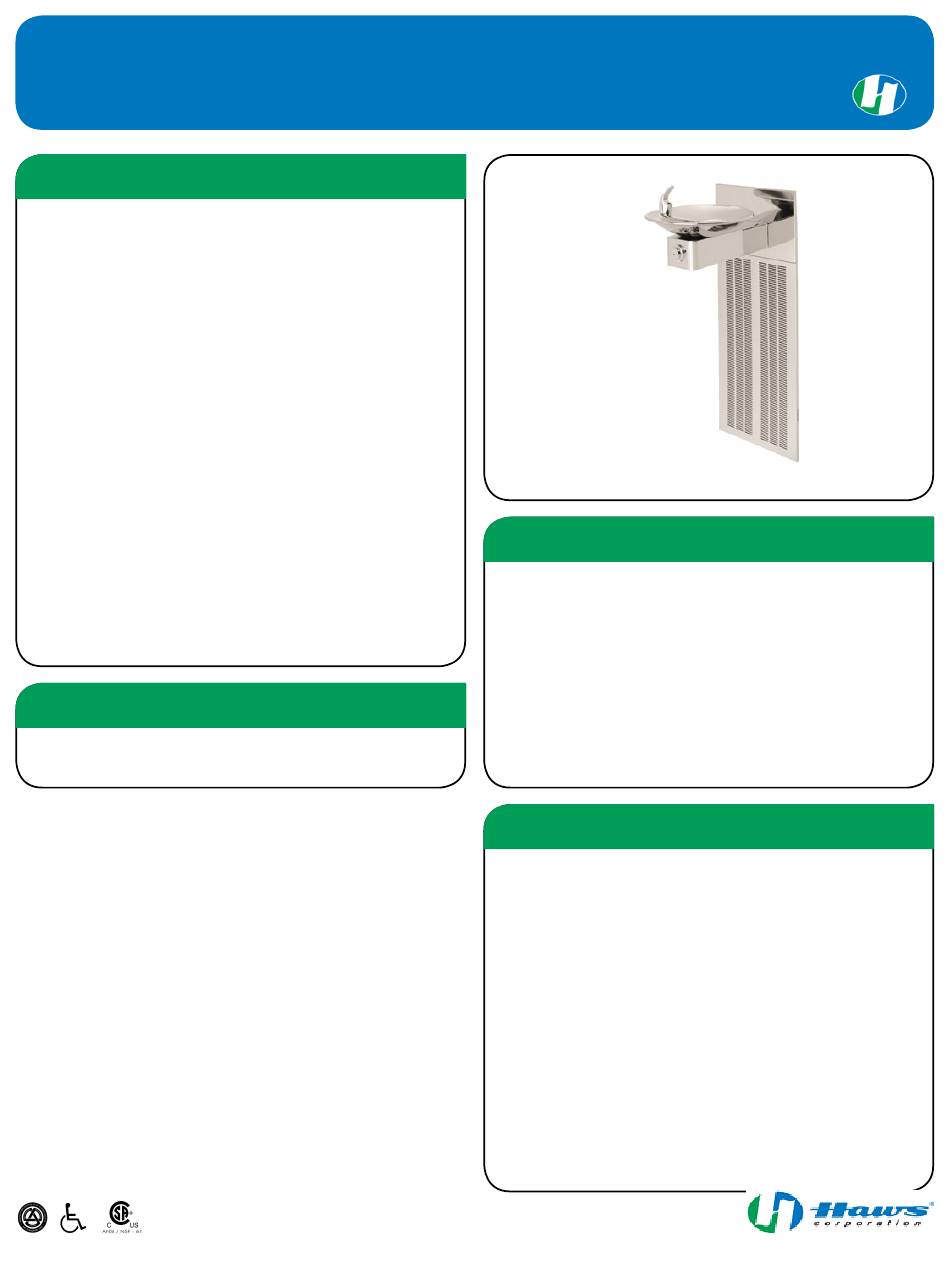

Haws H1001.8HPS Installation, Operation & Maintenance Instructions Manual

H1001.8HPS

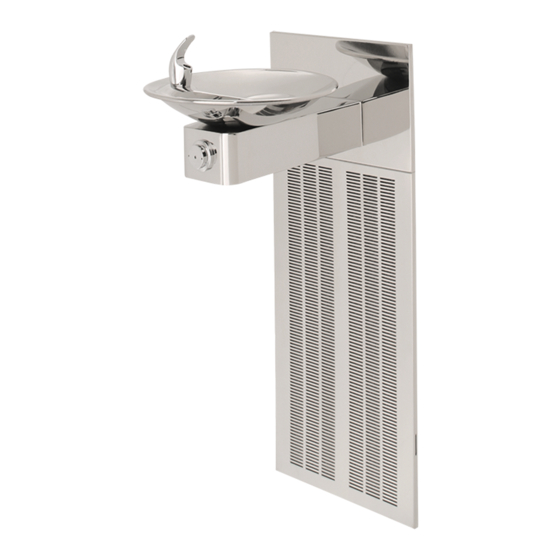

Barrier-Free Wall Mounted Electric Drinking Fountain
FEATURES & BENEFITS
Back Panel
Stainless steel back panel helps to protect the wall from
inadvertent splashing, and its decorative satin finish increases
location visibility and completes the fountains attractive
appearance.
Quality Control
Fountain is pre-built and fully water and pressure tested to
ensure no leaks and proper function for reduced installation time
and added peace of mind.
Construction
18 gauge Type 304 Stainless Steel fountain with attractive and
functional swirl bowl design, along with a vandal-resistant
bottom plate provides a long lasting unit with added peace of
mind.
Bubbler Head
Polished chrome-plated brass bubbler head with integral laminar
flow prevents splashing and provides a superior flow pattern.
The integral basin shank and inserted roll pin adds vandal
resistance strength to the design, and the shielded angled
stream orifice produces a steady sanitary source of water.
Push Button
With its patented (Pat.# 6,981,692) push-button valve assembly
which allows for front access stream adjustment as well as
cartridge and strainer access, this fountain offers the ultimate in
ease of maintenance.
OPTIONS
o
Filter: Model 6426, 12" x 2", in-line lead removal element that
reduces lead from incoming water supply.
DISCLAIMER: Continued product improvements make specifications subject to change without notice. Check www.hawsco.com for the latest product information and updates.
1455 Kleppe Lane | Sparks, NV 89431 | [p] 775.359.4712 | [f] 775.359.7424 | [e] info@hawsco.com | www.hawsco.com | 2 March, 2009
SPECIFICATIONS
Model H1001.8HPS electric wall mounted barrier-free drinking
fountain shall include an 18 gauge Type 304 polished stainless
steel finish basin with integral swirl design, push-button operated
valve with front-accessible cartridge and flow adjustment, polished
chrome-plated brass vandal-resistant bubbler head with integral
laminar anti-squirt flow, chrome-plated brass vandal-resistant
waste strainer, vandal-resistant bottom plate, polished stainless
steel finish back panel and louvered intrusion-proof grill, and 1-1/4"
O.D. waste pipe. The R-134a refrigeration system is hermetically
sealed and delivers a minimum of 8 gph (30.3 lph) of water at 50°F
(10°C) cooled from 80°F (26.7°C) inlet water at 90°F (32.2°C)
ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5.
APPLICATIONS
Perfect for either public or private settings, our stainless steel
electric drinking fountains are a great fit in indoor environments.
This series is precisely mounted, making it a nice addition to any
surrounding. Specifically, this type fountain may be placed in
settings such as: schools, office buildings, shopping malls, and
other indoor environments where there is a demand for a chilled
water source and/or wheel chair access.
Model meets all current Federal Regulations for the disabled
including those in the Americans with Disabilities Act.
water coolers are not recommended or designed for outdoor
applications or enclosed pool areas (chlorine). These conditions
may void warranty. Haws manufactures drinking fountains, electric
water coolers and electric drinking fountains to be lead-free by all
known definitions including ANSI/NSF Standard 61, Section 9,
California Proposition 65, and the Federal Safe Drinking Water Act.
Haws electric water coolers comply with ARI Standard 1010 and
ANSI A117.1, and be listed by Underwriter Laboratories to U.S.
and Canadian standards.
Electric
