HAWS AG • Bachweg 3 • CH-3401 Burgdorf • Switzerland • www.haws.ch
HAWS Corporation • P.O.Box 2070 • 1455 Kleppe Lane • Sparks,Nevada 89431/USA www.hawsco.com

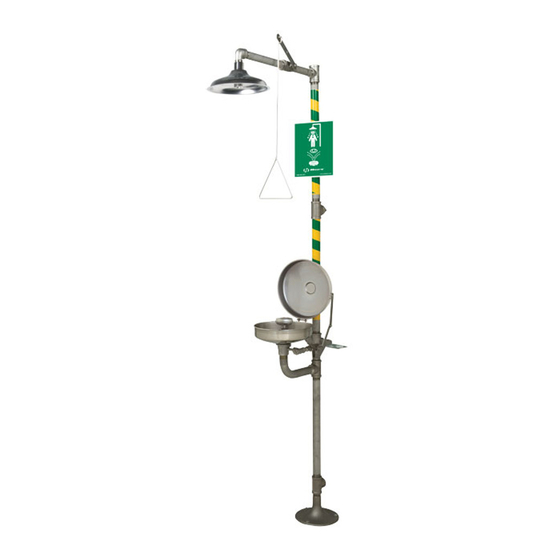

Model
8320Axion
NOTE TO INSTALLER: please leave this information with the maintenance department.

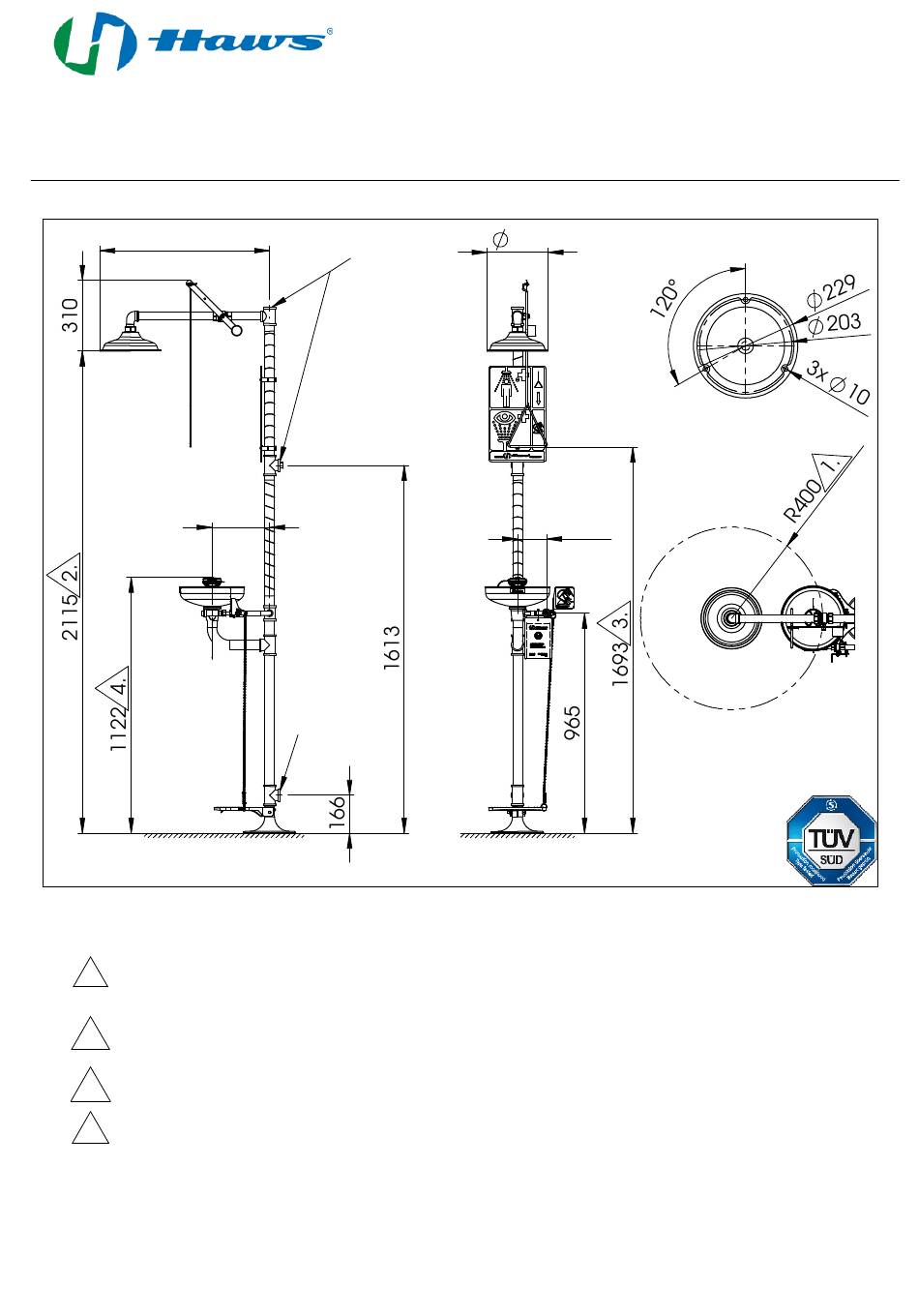

745
THESE DIMENSIONS MAY VARY +/- 12,7mm (1/2")
SCALE 1:20
Legally-stipulated dimensions:
There must be a minimum clearance radius of 400 mm / 1' 3 3/4" (not counting
1.
operating controls and eyewasher units) between a vertical line running down from
the shower head and the nearest obstacle (wall, vertical inlet pipe or similar).
2.
Height above floor level: 2100mm - 2300mm (6' 10 1/2" - 7' 6 1/2").
The operating controls must be no higher than 1750mm (5' 9") above floor level
3.
(while conforming to local regulations).
4.
Height above floor level: 800mm - 1200mm (2' 7 1/2" - 3' 11 1/4").
Free access to the eyewash station/body shower 8320Axion must be guaranteed at all
times. The operator is responsible for the observance of this requirement.
Jeannine Ruf
HAWS DRINKING FAUCET COMPANY
INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS
Combination Shower and Eyewash
1 1/4" G
Supply
253
1 1/4" G
Waste
8320Axion
268
Floor Flange Detail
127
Top View
•
No.
2080170/1
TÜV tested
1/4
13.10.2011
Advertisement
Related Manuals for Haws 8320Axion
Summary of Contents for Haws 8320Axion
- Page 1 (while conforming to local regulations). Height above floor level: 800mm - 1200mm (2' 7 1/2" - 3' 11 1/4"). Free access to the eyewash station/body shower 8320Axion must be guaranteed at all times. The operator is responsible for the observance of this requirement.
- Page 2 Combination Shower and Eyewash 2080170/1 Shower location: The eyewash station/body shower 8320Axion must be installed in the vicinity of potential danger zones. It must be highly visible and easily accessible. Connection conduit: You are recommended to use a 1 1/4" G conduit, capable of withstanding pressures of 2 - 6BAR (30 - 90PSI).
