Haws Axion 8317CTFPEX Manual

HAWS AG • Bachweg 3 • CH-3401 Burgdorf • Switzerland • www.haws.ch
HAWS Corporation • P.O.Box 2070 • 1455 Kleppe Lane • Sparks,Nevada 89431/USA www.hawsco.com
Model

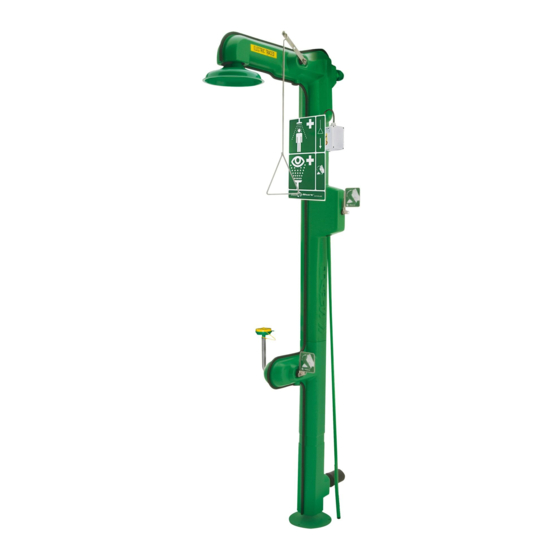

8317CTFPEX Axion
NOTE TO INSTALLER: please leave this information with the maintenance department.
921
742
263

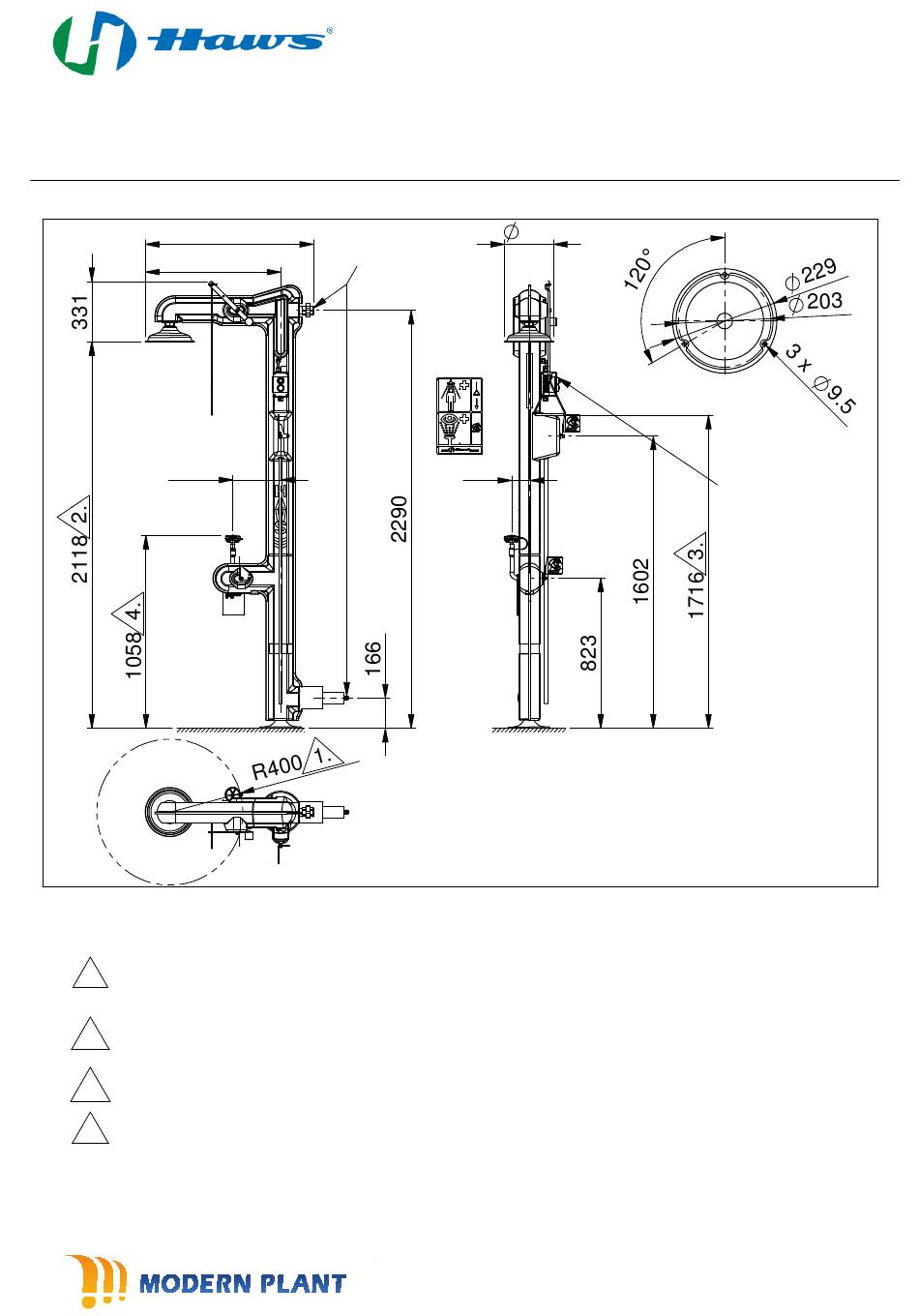

Legally-stipulated dimensions:
There must be a minimum clearance radius of 400 mm / 1' 3 3/4" (not counting
1.
operating controls and eyewasher units) between a vertical line running down from
the shower head and the nearest obstacle (wall, vertical inlet pipe or similar).
Height above floor level: 2100mm - 2300mm (6' 10 1/2" - 7' 6 1/2").
2.
The operating controls must be no higher than 1750mm (5' 9") above floor level
3.
(while conforming to local regulations).
Height above floor level: 800mm - 1200mm (2' 7 1/2" - 3' 11 1/4").
4.
Free access to the eyewash station/body shower 8317CTFPEX Axion must be guaranteed at all
times. The operator is responsible for the observance of this requirement.
HAWS DRINKING FAUCET COMPANY
INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS
Combination Shower & Eye/Face Wash
268
1 1/4" Supply
99
THESE DIMENSIONS MAY VARY +/- 1/2" (12,7mm)
For more information about any Haws product please contact Modern Plant. Our team of
experts are on call to answer all your questions and provide you with any advice.
Web: www.safetyshowerstations.ie | Email: sales@modernplant.ie | Tel: 01 461 4300
•
No.
Floor Flange Detail
Power Connection
Junction Box
2080155/5
SCALE 1:25
