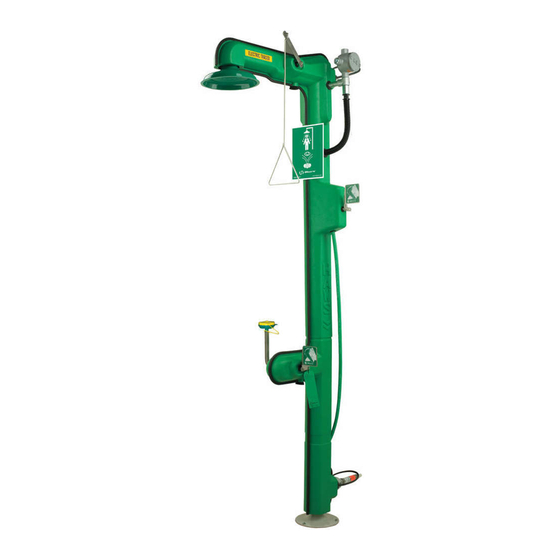

Model 8317CTFP Axion
NOTE TO INSTALLER: please leave this information with the maintenance department.
742
263
Legally-stipulated dimensions:
There must be a minimum clearance radius of 400 mm / 1' 3 3/4" (not counting
1.
operating controls and eyewasher units) between a vertical line running down from
the shower head and the nearest obstacle (wall, vertical inlet pipe or similar).
Height above floor level: 2100mm - 2300mm (6' 10 1/2" - 7' 6 1/2").
2.
The operating controls must be no higher than 1750mm (5' 9") above floor level
3.
(while conforming to local regulations).
Height above floor level: 800mm - 1200mm (2' 7 1/2" - 3' 11 1/4").
4.
Free access to the eyewash station/body shower 8317CTFP Axion must be guaranteed at all
times. The operator is responsible for the observance of this requirement.
Jeannine Ruf
HAWS DRINKING FAUCET COMPANY
INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS
Combination Shower & Eye/Face Wash
921
THESE DIMENSIONS MAY VARY +/- 12,7mm (1/2")
8317CTFP Axion
1 1/4" G
Supply
268
99
•
No.
2080154/11
Floor Flange Detail
Power Connection
Junction Box
SCALE 1:25
30.05.2012
1/2
