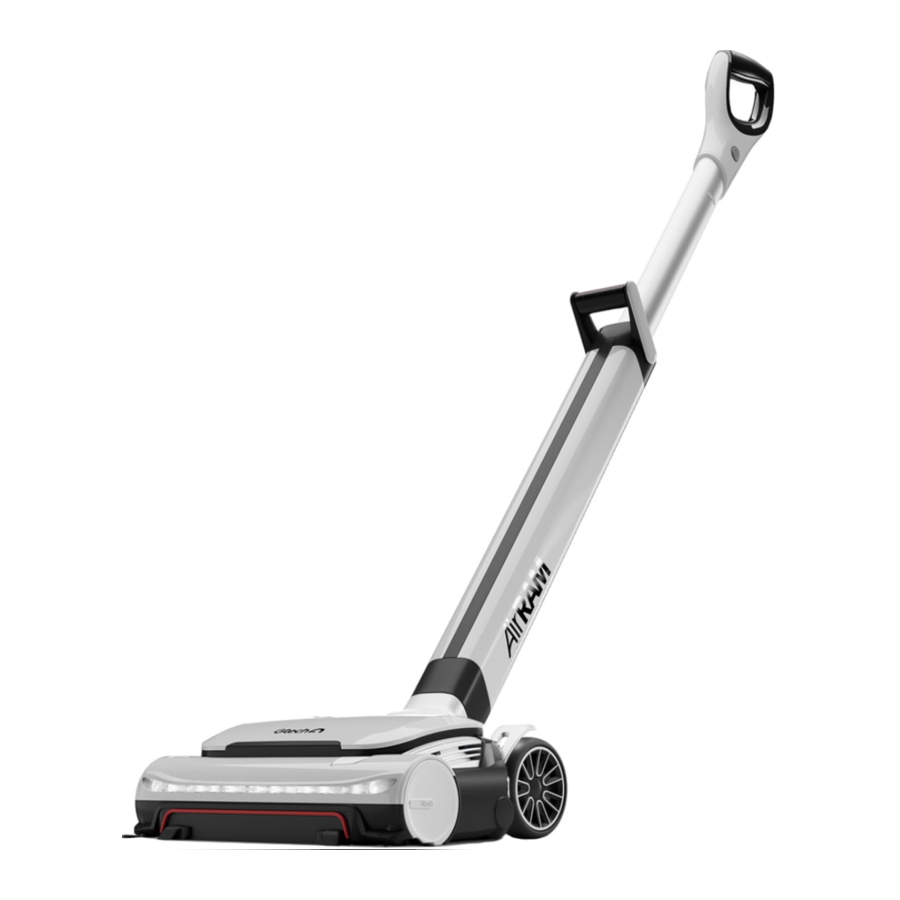

Gtech AirRAM, AR51 Manual

What's in the box

1. Head full assembly
2. Lower handle
3. Upper handle
4. Battery
5. Charging stand
6. Hair removal tool
7. Spare edge brushes

Assembly

1. Insert the upper handle into the lower handle. It will slide down and click into place.

2. Locate the handle onto the steering pivot on the head.
   Push the handle down until it clicks securely into place.

3. Push the battery into the head until it clicks into place.

4. The upper handle can be set to a range of height positions.
   Press the button and slide the handle up or down until it locks into place at the required height.


Storage

The handle can be lowered for storage and raised for use.
Press the button and raise or lower the handle until it locks into position

Removing the battery

Press the release button and pull to remove the battery.

Dis-assembly

Should the upper handle need to be removed, press the button and use a suitable tool to press in the latch. Pull the handle upwards to remove.

Should the handle need to be removed, press the button and pull the handle away from the head.

Operation

Place your foot on the side of the head (1) and pull the handle back (2).

The power button is located on the left hand side of the head. Press the power button with your foot to turn the product on. Press the power button with your foot to turn the product off.

Headlights

The headlights will illuminate when the product is switched on.

Emptying the bin

Pull the bin handle to lift the bin out of the product.

Hold the bin over a rubbish bin and slide the lever to open the bin door and empty the dirt.

Pull the lever fully back.

Close the bin door.

Fit the bin into the product.
Never use the product without the bin and filter fitted.

Filter regeneration

The product has a filter regeneration function to maintain performance. The regeneration will operate when the product is switched off after more than 2 minutes of continuous use. The headlights will appear blue when regeneration is in process.

To activate filter regeneration during use press and hold the power button for 3 seconds.

Battery charge status

When in use the headlights will be on. When there is no power left the headlights will flash red with a voice notification "battery low". The battery needs recharging.

Charging stand

The charging stand cord is stored in the base. Pull the cord out to the required length, from either side of the unit.

Charging the battery

Plug the charging stand into a wall socket.

Place the product on the charging stand.

Front LED battery charge indicator

The battery can be charged from flat in 3 hours.
While charging, the headlights will progressively pulse until all 4 are white.
When the battery is fully charged the headlights will flash 3 times and then turn off.
When the battery is fully charged switch off the charging stand at the wall socket to optimise battery life.

Brush bar jam

If the brush bar jams during use, the product will stop and the headlights will appear red. You will need to clean the brush bar and remove any blockage.

The product will not re-start until the red lights go out. This will take 5 seconds. Press the power button with your foot to turn the product on. If the problem persists, follow the troubleshooting instructions.

Removing and cleaning the brush bar

Before checking for a blockage, switch off and remove the battery. Press the button to release and eject the brush bar.

The brush bar can now be removed from the head.

The brush bar can be removed from the end cap for more thorough cleaning

To remove hair from the brush bar, run the hair removal tool down the groove to cut the hair, then use the comb remove it.

While the brush bar is removed you can take the opportunity to remove any hair from the brush bar housing comb as indicated.

Note to assemble the matching end when re-fitting the brush bar to the end cap.

Push the brush bar into the product until it clicks into place. Check the brush bar is engaged onto the drive spindle.

Replace the battery.
Never operate the product without the brush bar in place.

Cleaning and removing the edge brushes

The edge brushes can be removed for cleaning or replacement.
Before cleaning and removing the edge brushes switch off and remove the battery.

Carefully insert a small flat bladed screwdriver or similar tool into the gap around the edge brush.
Use the tool to push the edge brush up and away from the housing.

To re-fit align the brush onto the drive spindle and press the brush until it clicks into place. The edge brushes are handed and note to match the "L "and "R" markings on the brush and housing.

Voice notifications

The voice notifications can be turned on and off. With the product switched off, press and hold the power button for 5 seconds to change the status.
Note - when you first use the product the default status is off.

Removing and washing the filter

The filter regeneration function will maintain the life and performance of the filter but in some circumstances it may be necessary to service the filter.

Holding onto the product with one hand, pull the bin handle and lift the bin out of the product.

Press the 2 latches and lift off the bin lid

Remove the filter from the dust bin

Wash the filter under a tap. Recommended water temperature 40°C. Do not use detergent or soaps. Let it dry completely before reinserting into the product.
Never use the product without the filter. You could damage the motor.

Replacing the filter

Fit the filter into the dust bin

Locate the 2 tabs at the front of the lid into the bin and then push down the lid until it clicks into place.
Never use the without the bin and filter fitted.

Product care

Your product doesn't need much maintenance: keep the filters clean, keep the brush bar tanglefree and charge the battery. Wipe it with a dry cloth if it gets dirty, including under the bin.
To maintain optimum battery life store the battery in clean, dry conditions, within a recommended temperature range of 0 - 25°C. Do not store the battery in areas of high temperature above 25°C. Do not store near a source of heat or where exposed to direct sunlight.
The product can be stored on the charging stand. When the battery has fully charged, switch the charging stand at the wall socket. This will optimise the battery life.
If the product will be stored for longer periods of time without use it is recommended to fully charge the battery before storage to help maintain its condition and life.

Troubleshooting

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS BEFORE USE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

Do not use in rain or leave outdoors whilst raining.

Basic safety precautions should always be observed when using an electrical appliance, including the following to reduce the risk of fire, electrical shock, or injury:

Personal Safety:

• Store indoors in a dry place out of the reach of children.
• Always use responsibly. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Don't let children play with the appliance; supervise children using or maintaining the appliance.
• Use only manufacturer's recommended attachments as described in this manual; misuse or use of any accessory or attachment other than those recommended, may present a risk of personal injury.
• Take extra care when cleaning stairs.
• Keep the appliance and accessories away from hot surfaces.
• Do not block the appliances openings or hinder air flow; keep openings free of any objects including dust, lint, clothing, fingers (and all parts of the body).
• Particularly keep hair away from openings and moving parts.

Electrical safety:

• Only use batteries and chargers supplied by Gtech.
• Never modify the charger in any way.
• The charger has been designed for a specific voltage. Always check that the mains voltage is the same as that stated on the rating plate.
• A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack; never use the charger with another appliance or attempt to charge this product with another charger.
•
  Before use, check the charger cord for signs of damage or ageing. A damaged or entangled charger cord increases the risk of fire and electric shock.
• Do not abuse the charger cord.
• Never carry the charger by the cord.
• Do not pull the cord to disconnect from a socket; grasp the plug and pull to disconnect.
• Don't wrap the cord around the charger when storing.
• Keep the charger cord away from hot surfaces and sharp edges.
• The supply cord cannot be replaced. If the cord is damaged the charger should be discarded and replaced.
• Do not handle the charger or the appliance with wet hands.
• Do not store or charge the appliance outdoors.
• The charger must be removed from the socket before removing the battery, cleaning or maintaining the appliance.

Battery safety:

• This appliance includes Li-Ion batteries; do not incinerate batteries or expose to high temperatures, as they may explode.
•
  Liquid ejected from the battery may cause irritation or burns.
• In an emergency situation contact professional help immediately!
• Leaks from the battery cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid gets on the skin wash immediately with soap and water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of immediately in accordance with local regulations.
•
  Shorting the battery terminals may cause burns or fire.
• When the battery pack is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another.
• Store the battery away from any liquids and chemicals that may damage the battery and cause a risk of fire.
• Store the battery in clean, dry conditions, within a recommended temperature range of 0 - 25°C
• Do not store the battery in areas of high temperature above 25°C. Do not store near a source of heat or where exposed to direct sunlight.
• When you dispose of the appliance remove the battery and dispose of the battery safely in accordance with local regulations.

Service:

• Before using the appliance and after any impact, check for signs of wear or damage and repair as necessary.
• Do not use the appliance if any part is damaged or defective.
• Repairs should be carried out by a service agent or a suitably qualified person in accordance with relevant safety regulations. Repairs by unqualified persons could be dangerous.
• Never modify the appliance in any way as this may increase the risk of personal injury.
• Only use replacement parts or accessories provided or recommended by Gtech.

Intended use:

• This appliance has been designed for domestic dry vacuum cleaning only.
• Do not pick up liquids or use on wet surfaces.
• Do not pick up anything that is flammable, burning or smoking.
• Use only as described in this manual.
• Don't use on concrete, tarmacadam or other rough surfaces.
• The brush bar may damage certain floor surfaces. Before vacuuming flooring, rugs or carpets, check the flooring manufacturer's recommended cleaning instructions.
• The product may damage delicate fabrics or upholstery. Care should be taken on loose-weave carpets and coverings or where there are loose threads. It is advised to test on an inconspicuous area first before use.
• The product has been designed to clean a wide variety of floor surfaces without the need to change settings. However some surfaces such as delicate loose-pile rugs or carpets, tasselled rug edges or damaged carpets with exposed threads are not suitable for cleaning with a rotary brush.
• The product has a constantly rotating brush bar. Never leave the cleaning head in one spot for an extended period of time as this may damage the floor surface.
• Particularly for hard flooring, before vacuuming check the area being cleaned is free of any hard debris or objects that could damage the flooring if caught underneath the product, and that the underside of the product is free from foreign objects that could mark the surface.

• Do not use water, solvents, or polishes to clean the outside of the appliance; wipe clean with a dry cloth.
• Never immerse the unit in water and do not clean in a dish washer.
• Never use the appliance without the filter fitted.

FOR HOUSEHOLD USE ONLY

Make a note of your product serial number code for future reference. You can find this on the underside of item

Product support

If these initial tips do not solve your problem we please visit our support area where you can find troubleshooting help including online manuals, FAQs and how-to-videos, as well as genuine spares and replacement parts compatible with your product.
Visit: www.gtech.co.uk/support
support@gtech.co.uk

Technical Specification

Warranty Registration

Visit www.gtech.co.uk/warrantyregistration to register your product and ensure that we have all the information required to provide you with quick and efficient support.
You will need your product's serial number.

If you purchased directly from Gtech, your details are already registered and your 2-year warranty will start automatically.
