Summary of Contents for Gtech AR Series

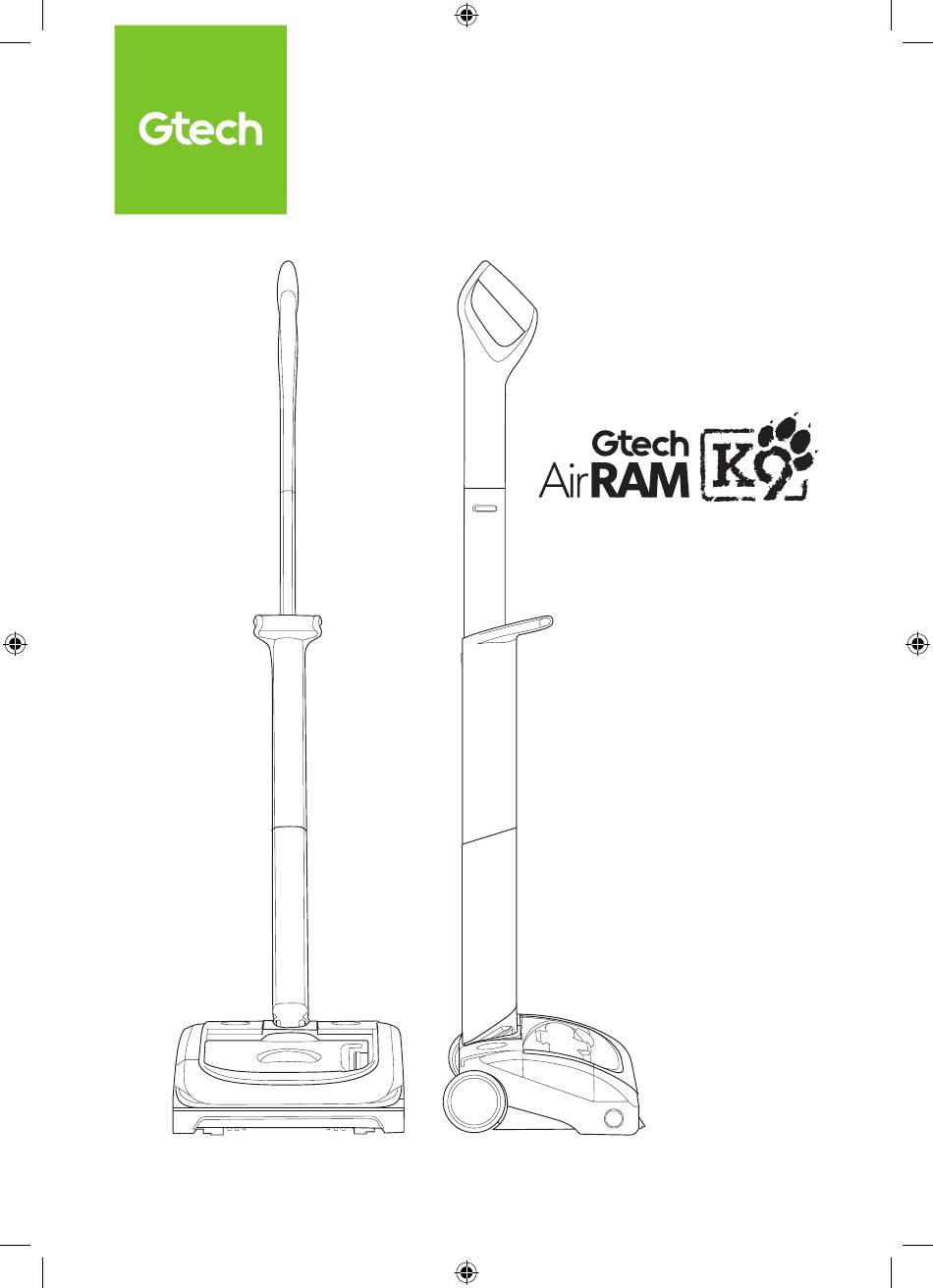

- Page 1 Model number: AR Series OPERATING MANUAL 4993_Unite_Fortune_AirRAM_K9_manual_aw.indd 1 4993_Unite_Fortune_AirRAM_K9_manual_aw.indd 1 25/05/2021 13:19 25/05/2021 13:19...
-
Page 2: Important Safeguards
• This appliance includes Li-Ion batteries; do • Only use batteries and chargers supplied not incinerate batteries or expose to by Gtech. high temperatures, as they may explode. • Never modify the charger in any way. • Liquid ejected from the battery may cause •... -
Page 3: Intended Use
• Only use replacement parts or accessories • Never immerse the unit in water and do provided or recommended by Gtech. not clean in a dish washer. Intended use: • Never use the appliance without the filter fitted. -
Page 4: What's In The Box
Thank you for choosing Gtech “Welcome to the Gtech family. I started Gtech to create sensible, easy to use products that do a great job, and hope you get many years of trouble-free performance from your new product.” Nick Grey –... - Page 5 Assembly Push the two parts of the lower handle Push the pivot poke to the upright position. together in the orientation shown above. They This might require some force. will only fit one way. They will click into place Attach the lower handle to the head assembly and remain permanently fixed.
- Page 6 Assembly (continued) Push the two parts of the upper handle Insert the upper handle into the lower handle. together in the orientation shown above. They You will need to press the button on the upper will only fit one way. They will click into place handle to fit it in.
- Page 7 Installing scented cartridge Slide the filter and inner shroud out of the filter Remove the filter from the inner shroud, by housing. twisting and pulling. Scented Cartridge by skin contact. If swallowed, seek medical advice immediately and show this container or label. Toxic to Scented cartridge refills: Keep out of the reach of aquatic organisms, may cause long-term adverse effects children.
-
Page 8: Operation
Operation Without pressing the power button, place The power button is located on the left hand your foot on the left side of the head (1) and side of the head assembly. pull the handle back (2). Press the power button with your foot to turn the product on. -
Page 9: Battery Charging
Battery charging When the state of charge indicator starts to To remove the battery, squeeze the latch flash one green LED, recharge the battery. underneath and pull upwards. hours The battery can be charged whilst it’s in the It is OK to charge for 1 hour for a burst of product, or when it’s off the product. -
Page 10: Emptying The Bin
Emptying the bin Holding onto the product with one hand, pull Lift and release the latch marked with the green the bin handle and lift the bin out of arrow to pull open the lid. the product. Hold the product’s bin over a rubbish bin Pull the green lever back towards the bottom and push the green lever towards the lid to of the bin. -
Page 11: Cleaning The Filters
Cleaning the filters - do this once a month or more frequently depending on use. Holding onto the product with one hand, Pull the filter out of the filter housing. pull the bin handle and lift the bin out of Tap the dirt from the filter and tip any the product. -
Page 12: Replacing The Filters
Replacing the filters Slide the filter onto the inner shroud. Slide the filter and inner shroud into the filter housing. Removing and cleaning the brush bar / jam or fault seconds If the brush bar jams during use, the product The product will not re-start until the red lights will stop and the LEDs will appear red. - Page 13 Before checking for a blockage, remove the Rest the product on its side and locate battery. the brush bar button on the right hand side. Press the button inwards and then pull the brush bar out from the bottom of the product.
- Page 14 Use the comb to remove any hair. While the brush bar is removed you can take Never operate the product without the brush the opportunity to remove any hair from the bar in place. brush bar housing comb as indicated. Re-insert the brush bar, starting by the end Replace the battery by sliding it down into the furthest away from the button.
-
Page 15: Product Care
If these initial tips do not solve your problem we please visit our support area where you can find troubleshooting help including online manuals, FAQs and how-to-videos, as well as genuine spares and replacement parts compatible with your product. Visit: www.gtech.co.uk/support Online Live chat support support@gtech.co.uk... -
Page 16: For Household Use Only
AIRRAM K9 TECHNICAL SPECIFICATION Battery model 103A022 Battery 22V Li-Ion Charging period 4 hours Battery charger output 27V DC 500mA Weight 3.3kg symbol indicates that this product is Call your local council, civic amenity site, or covered by legislation for waste electrical and recycling centre for information on the disposal electronic products (2012/19/EU) and recycling of electrical products. -
Page 17: Warranty Registration
If your product is within its warranty and has a fault that cannot be resolved from the troubleshooting section or online support, please do the following: • Contact our Gtech Customer Care Helpline on UK: 08000 308 794, who will go through any troubleshooting with you to identify the fault. - Page 18 Notes 4993_Unite_Fortune_AirRAM_K9_manual_aw.indd 18 4993_Unite_Fortune_AirRAM_K9_manual_aw.indd 18 25/05/2021 13:19 25/05/2021 13:19...
- Page 19 Notes 4993_Unite_Fortune_AirRAM_K9_manual_aw.indd 19 4993_Unite_Fortune_AirRAM_K9_manual_aw.indd 19 25/05/2021 13:19 25/05/2021 13:19...
- Page 20 Grey Technology Limited Brindley Road, Warndon, Worcester WR4 9FB, UK email: support@gtech.co.uk telephone: 08000 308 794 www.gtech.co.uk 4993_Unite_Fortune_AirRAM_K9_manual_aw.indd 20 4993_Unite_Fortune_AirRAM_K9_manual_aw.indd 20 25/05/2021 13:19 25/05/2021 13:19...
