Model number: AR21
OPERATING MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AirRam K9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gtech AirRam K9

Summary of Contents for Gtech AirRam K9

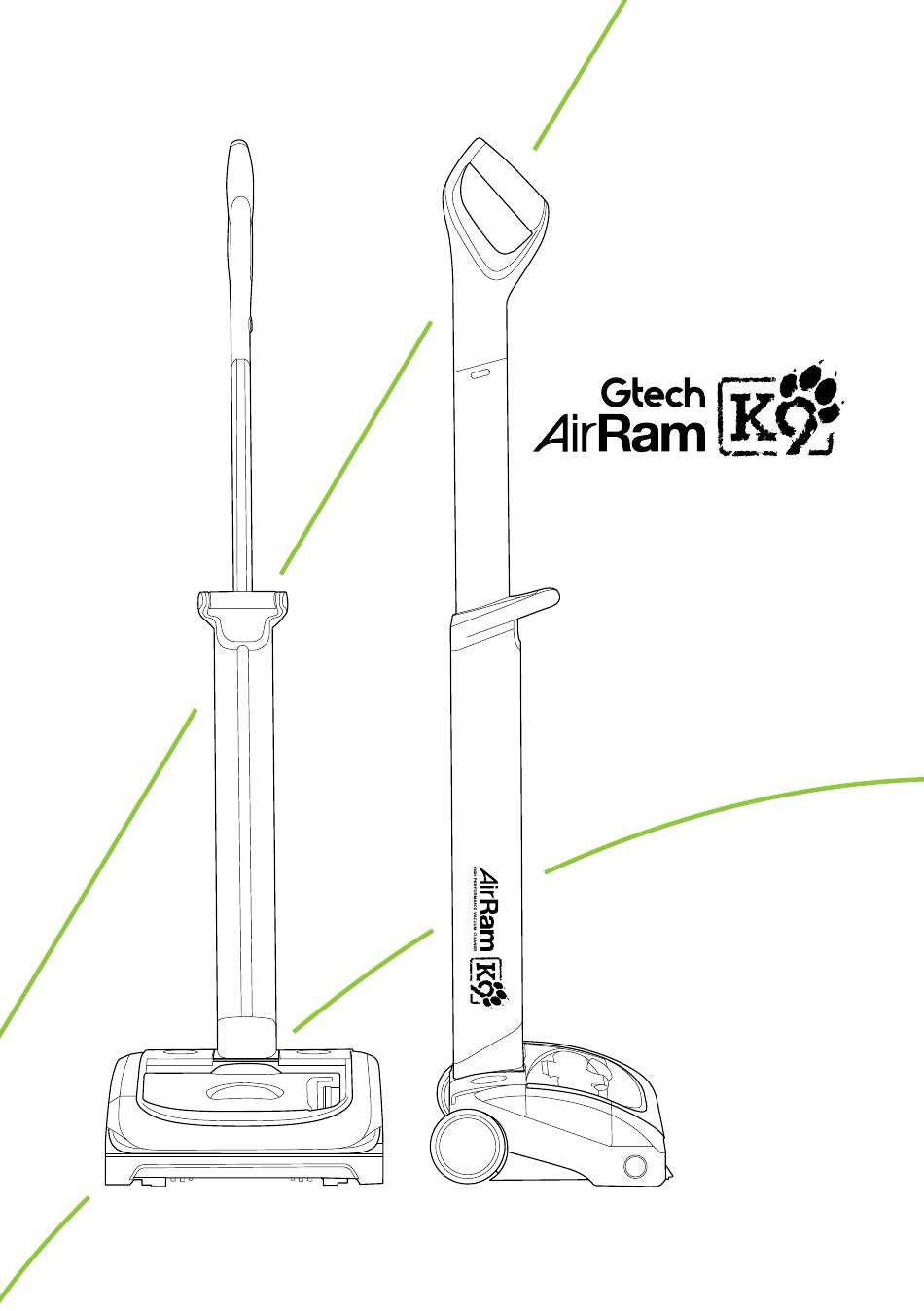

  • Page 1 Model number: AR21 OPERATING MANUAL...

  • Page 2: Important Safeguards

    Electrical safety: Battery safety: • Only use batteries and chargers • This appliance includes Li-Ion batteries; supplied by Gtech. do not incinerate batteries or expose • Never modify the charger in any way. to high temperatures, as they may • The charger has been designed for explode.

  • Page 3: Intended Use

    Service: suitable for cleaning with a rotary brush. • Before using the appliance and after The AirRam K9 can still be used to any impact, check for signs of wear or clean such surfaces by removing the damage and repair as necessary.

  • Page 4: What's In The Box

    “I started Gtech to create sensible, easy to use products, which do a great job. Your opinion is important to us. Please take the time to write a review of the AirRam K9 at Trustpilot.co.uk. We will use your feedback to improve our products and services and let other people know what it’s like to be part of the Gtech family.”...
  • Page 5 Assembly Attach the lower handle onto the head of Press the button at the top of the upper the AirRam K9. handle and slot it into the lower handle until it clicks. Insert the battery by sliding it down. To extend the upper handle, hold down the It will click into place.
  • Page 6 Installing scented cartridge Slide the filter and inner shroud out of the Remove the filter from the inner shroud, by filter housing. twisting and pulling. Remove the scented cartridge from its box Slide scented cartridge into the end of the then slide the plastic sleeve off.

  • Page 7: Operation

    Operation Without pressing the power button, place 1. The power button is located on the left your foot on the left side of the AirRam K9 hand side of the AirRam K9 head. head and pull the handle back. 2. Press the button with your foot to turn the AirRam K9 on.

  • Page 8: Battery Charging

    When the state of charge indicator starts to The battery can be charged whilst it’s in the flash one green LED, recharge the battery. AirRam K9, or when it’s off the product. To remove the battery, squeeze the latch underneath and pull upwards.

  • Page 9: Emptying The Bin

    AirRam K9. Hold the AirRam K9’s bin over a rubbish bin Pull the green lever back towards the bottom and push the green lever towards the lid to of the bin.
  • Page 10 Cleaning the filters – do this once a month Holding onto the AirRam K9 with one hand, Pull the filter out of the filter housing. pull the bin handle and lift the bin out of Tap the dirt from the filter and tip any dirt the AirRam K9.

  • Page 11: Replacing The Filters

    Slide the filter and inner shroud into the filter housing. Removing and cleaning the brush bar Rest the AirRam K9 on its side and locate If the brush bar jams during use, the the brush bar button on the right hand side.
  • Page 12 The brush bar can now be removed, To remove hair from the brush bar, run an starting at the button end. open pair of scissors down the groove to cut the hair, then pull it out. Re-insert the brush bar, starting by locating Replace the battery by sliding it down.

  • Page 13: Troubleshooting

    Clearing a jam / fault seconds If the brush bar jams during use, the The AirRam K9 will not re-start until the red AirRam K9 will stop and the LEDs will lights go out. This will take ten seconds. appear red. You will need to remove and clean the brush bar (see page 10).

  • Page 14: Product Care

    Product Care Your Gtech AirRam K9 doesn’t need much maintenance: keep the filters clean, keep the brush bar tangle-free and charge the battery. Wipe it with a dry cloth if it gets dirty, including under the bin. Never wash it with liquid, run it under a tap or use it without the filter.

  • Page 15: Warranty Terms And Conditions

    WARRANTY – TERMS AND CONDITIONS If your Gtech AirRam K9 breaks, don’t worry, we’re here to help. Go to www.gtech.co.uk or call 01905 345 891 for assistance. The warranty on your AirRam K9 is 2 years from date of purchase. WHAT ISN’T COVERED SUMMARY Gtech does not guarantee the repair or •...
  • Page 16 Grey Technology Limited Brindley Road, Warndon, Worcester WR4 9FB email: support@gtech.co.uk telephone: 01905 345891 www.gtech.co.uk...

This manual is also suitable for:

Ar21
