Summary of Contents for Gtech AR51

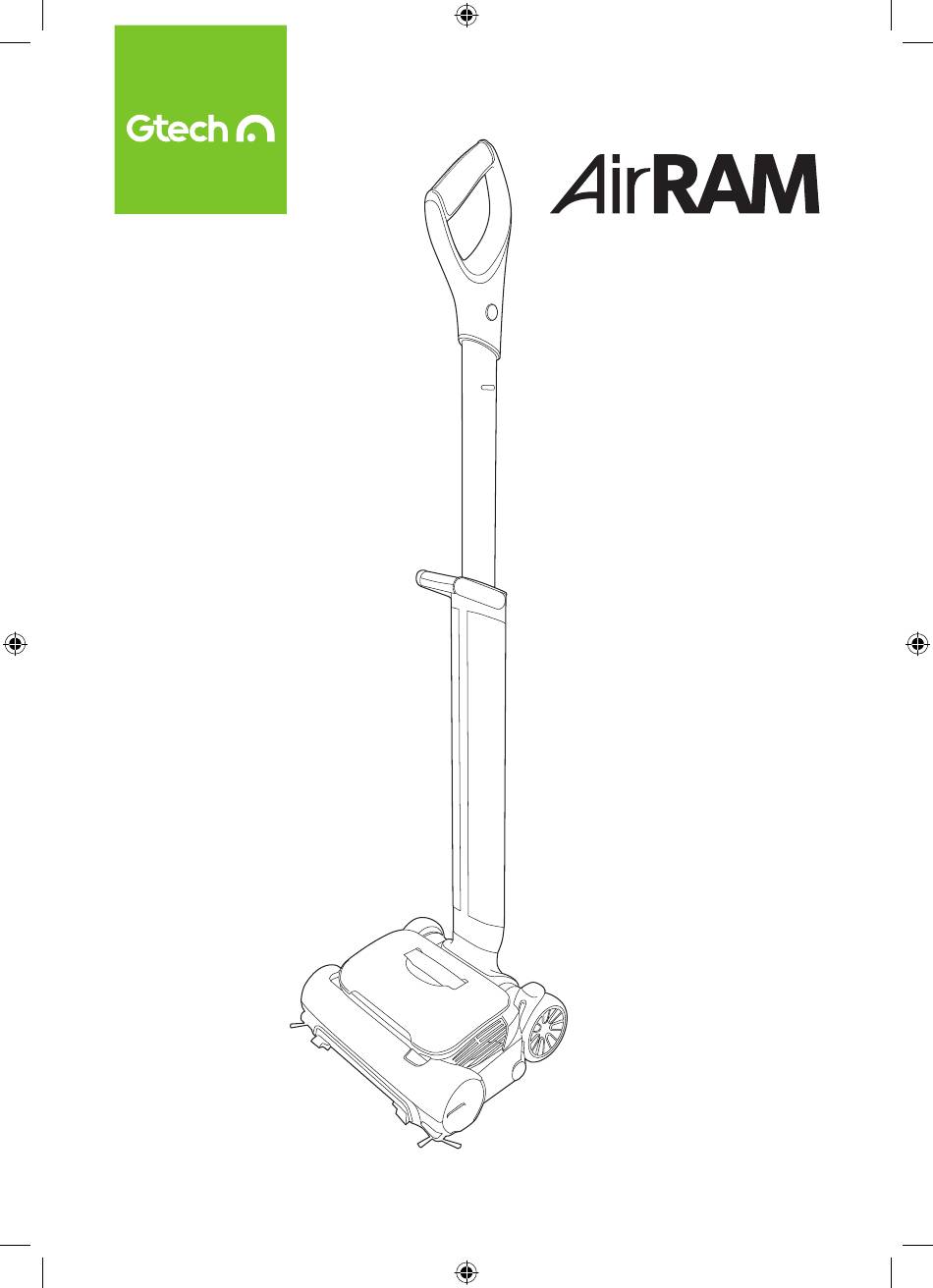

- Page 1 Model number: AR51 OPERATING MANUAL 5763_AirRAM3_Redstitch_manual_aw.indd 1 5763_AirRAM3_Redstitch_manual_aw.indd 1 26/09/2024 15:56 26/09/2024 15:56...
-
Page 2: Important Safeguards
• This appliance includes Li-Ion batteries; do • Only use batteries and chargers supplied not incinerate batteries or expose to by Gtech. high temperatures, as they may explode. • Never modify the charger in any way. • Liquid ejected from the battery may cause •... -
Page 3: Intended Use
• Only use replacement parts or accessories • Never use the appliance without the provided or recommended by Gtech. filter fitted. FOR HOUSEHOLD USE ONLY 5763_AirRAM3_Redstitch_manual_aw.indd 3 5763_AirRAM3_Redstitch_manual_aw.indd 3... -
Page 4: What's In The Box
Thank you for choosing Gtech “Welcome to the Gtech family. I started Gtech to create sensible, easy to use products that do a great job, and hope you get many years of trouble-free performance from your new product.” Nick Grey –... - Page 5 Assembly Insert the upper handle into the lower handle. Locate the handle onto the steering pivot on It will slide down and click into place. the head. Push the handle down until it clicks securely into place. The upper handle can be set to a range of Push the battery into the head until it clicks into height positions.
-
Page 6: Removing The Battery
Storage Removing the battery The handle can be lowered for storage and Press the release button and pull to remove raised for use. the battery. Press the button and raise or lower the handle until it locks into position Dis-assembly Should the upper handle need to be removed, Should the handle need to be removed, press press the button and use a suitable tool to press... -
Page 7: Operation
Operation Place your foot on the side of the head (1) and The power button is located on the left hand pull the handle back (2). side of the head. Press the power button with your foot to turn the product on. Press the power button with your foot to turn the product off. -
Page 8: Emptying The Bin
Emptying the bin Pull the bin handle to lift the bin out of the Hold the bin over a rubbish bin and slide the product. lever to open the bin door and empty the dirt. Pull the lever fully back. Close the bin door. - Page 9 Emptying the bin (contd.) Fit the bin into the product. Never use the product without the bin and filter fitted. Filter regeneration seconds The product has a filter regeneration function To activate filter regeneration during use press to maintain performance. The regeneration will and hold the power button for 3 seconds.
-
Page 10: Battery Charge Status
Battery charge status Charging stand When in use the headlights will be on. When The charging stand cord is stored in the base. there is no power left the headlights will flash Pull the cord out to the required length, from red with a voice notification “battery low”. - Page 11 Front LED battery charge indicator Battery level 0% - 10% Battery level 10% - 40% Battery level 40% - 70% Battery level 70% - 98% Battery level 98% - 100% The battery can be charged from flat in 3 hours. While charging, the headlights will progressively pulse until all 4 are white.
- Page 12 Brush bar jam seconds If the brush bar jams during use, the product The product will not re-start until the red will stop and the headlights will appear red. lights go out. This will take 5 seconds. Press You will need to clean the brush bar and the power button with your foot to turn the remove any blockage.
- Page 13 The brush bar can be removed from the end To remove hair from the brush bar, run the hair cap for more thorough cleaning removal tool down the groove to cut the hair, then use the comb remove it. While the brush bar is removed you can take Note to assemble the matching end when the opportunity to remove any hair from the re-fitting the brush bar to the end cap.
- Page 14 Push the brush bar into the product until Replace the battery. it clicks into place. Check the brush bar is Never operate the product without the engaged onto the drive spindle. brush bar in place. Cleaning and removing the edge brushes The edge brushes can be removed for cleaning Carefully insert a small flat bladed screwdriver or replacement.
- Page 15 To re-fit align the brush onto the drive spindle and press the brush until it clicks into place. The edge brushes are handed and note to match the “L “and “R” markings on the brush and housing. Voice notifications seconds The voice notifications can be turned on and off.
- Page 16 Removing and washing the filter The filter regeneration function will maintain the life and performance of the filter but in some circumstances it may be necessary to service the filter. Holding onto the product with one hand, Press the 2 latches and lift off the bin lid pull the bin handle and lift the bin out of the product.
-
Page 17: Replacing The Filter
Replacing the filter Fit the filter into the dust bin Locate the 2 tabs at the front of the lid into the bin and then push down the lid until it clicks into place. Never use the without the bin and filter fitted. -
Page 18: Product Care
Product care Your product doesn’t need much maintenance: keep the filters clean, keep the brush bar tangle- free and charge the battery. Wipe it with a dry cloth if it gets dirty, including under the bin. To maintain optimum battery life store the battery in clean, dry conditions, within a recommended temperature range of 0 - 25°C. -
Page 19: Troubleshooting
If these initial tips do not solve your problem we please visit our support area where you can find troubleshooting help including online manuals, FAQs and how-to-videos, as well as genuine spares and replacement parts compatible with your product. Visit: www.gtech.co.uk/support Online Live chat support support@gtech.co.uk... -
Page 20: Technical Specification
To find your nearest centre and discover how Gtech products are marked with the symbol easy it is to recycle electrical products visit indicating they can be recycled, and are covered www.recycle-more.co.uk... -
Page 21: Warranty Registration
If your product is within its warranty and has a fault that cannot be resolved from the troubleshooting section or online support, please do the following: • Contact our Gtech Customer Care Helpline on UK: 08000 308 794, who will go through any troubleshooting with you to identify the fault. - Page 22 5763_AirRAM3_Redstitch_manual_aw.indd 22 5763_AirRAM3_Redstitch_manual_aw.indd 22 26/09/2024 15:56 26/09/2024 15:56...
- Page 23 5763_AirRAM3_Redstitch_manual_aw.indd 23 5763_AirRAM3_Redstitch_manual_aw.indd 23 26/09/2024 15:56 26/09/2024 15:56...
- Page 24 Grey Technology Limited Brindley Road, Warndon, Worcester WR4 9FB, UK email: support@gtech.co.uk telephone: 08000 308 794 www.gtech.co.uk 5763_AirRAM3_Redstitch_manual_aw.indd 24 5763_AirRAM3_Redstitch_manual_aw.indd 24 26/09/2024 15:56 26/09/2024 15:56...
