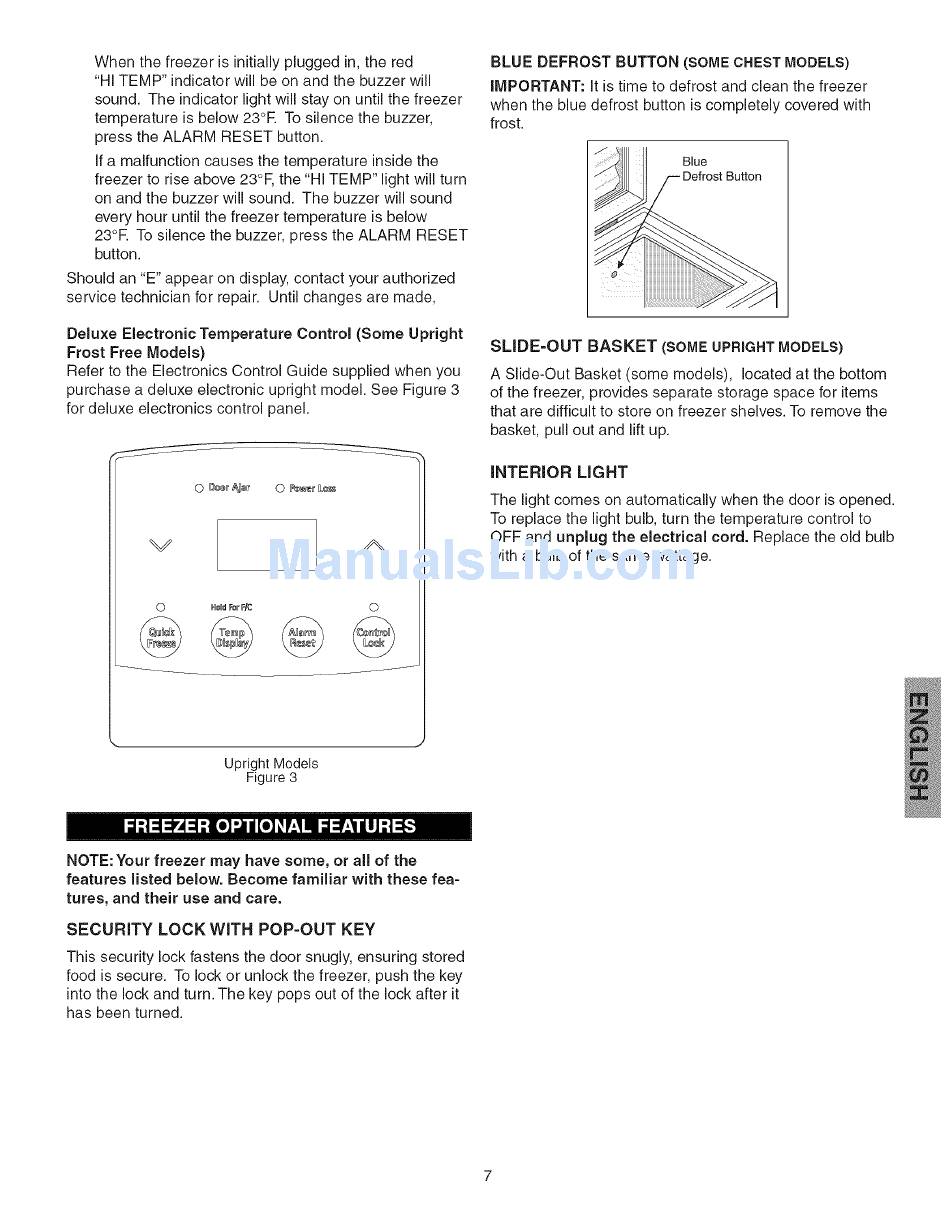

When the freezer is initially plugged in, the red
"Hi TEMP" indicator will be on and the buzzer will
sound. The indicator light will stay on until the freezer
temperature is below 23°R To silence the buzzer,
press the ALARM RESET button.
If a malfunction causes the temperature inside the
freezer to rise above 23°F, the "Hi TEMP" light will turn
on and the buzzer will sound. The buzzer will sound
every hour until the freezer temperature is below
23°R To silence the buzzer, press the ALARM RESET
button.
Should an "E" appear on display, contact your authorized
service technician for repair. Until changes are made,
Deluxe Electronic
Temperature
Control (Some Upright
Frost Free Models)
Refer to the Electronics Control Guide supplied when you
purchase a deluxe electronic upright model. See Figure 3
for deluxe electronics control panel.
0
D®_ Aja_
0 _
_®_
V
0
No0d_;ot_;/C
Upright Models
Figure 3
NOTE: Your freezer may have some, or all of the
features
listed below. Become familiar with these fea=
tures, and their use and care.
SECURITY
LOCK WITH POP=OUT
KEY
This security lock fastens the door snugly, ensuring stored
food is secure. To lock or unlock the freezer, push the key
into the lock and turn. The key pops out of the lock after it
has been turned.
BLUE DEFROST BUTTON (SOME CHEST MODELS)
iMPORTANT: It is time to defrost and clean the freezer
when the blue defrost button is completely covered with
frost.
Blue
Button
SLIDE-OUT
BASKET
{SOME UPRIGHT MODELS)
A Slide-Out Basket (some models),
located at the bottom
of the freezer, provides separate storage space for items
that are difficult to store on freezer shelves. To remove the
basket, pull out and lift up.
INTERIOR
LIGHT
The light comes on automatically when the door is opened.
To replace the light bulb, turn the temperature control to
OFF and unplug the electrical
cord. Replace the old bulb
with a bulb of the same wattage.
