SKS Germany MOUNTAIN 12017 Manual

Mudrocker set

Advertisement

Quick Links

Manual › MUDROCKER SET › FRONT › 12017

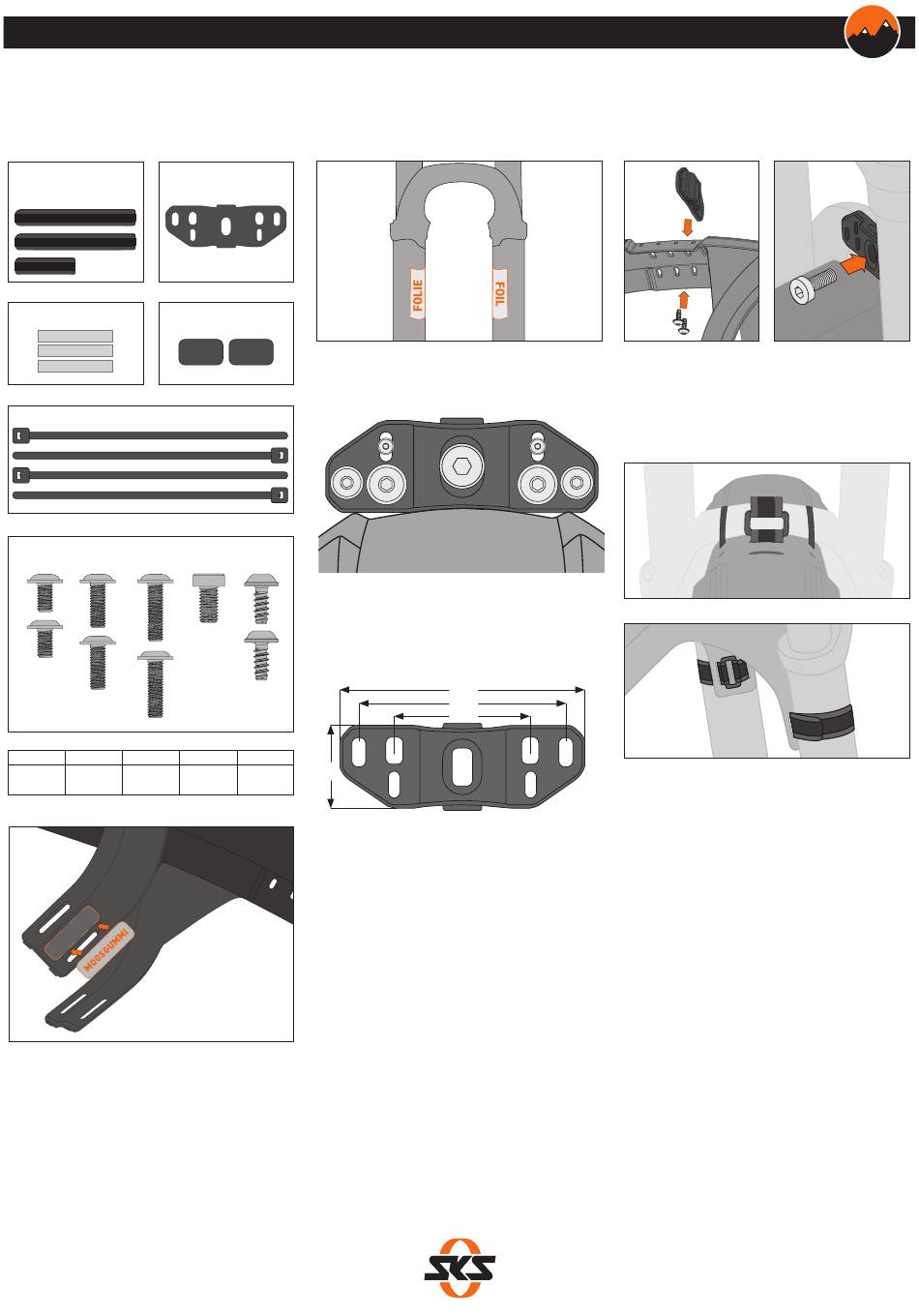

Parts
Silicon velcro straps for
fitting mudguards
Frame protection foil
Cable tie
Screws
M3
M4
M5
M3
M3
M4
M4
M5
M5
FOX
FOX
ÖHLINS
ÖHLINS
ROCKSHOX
ROCKSHOX
Mounting preparation
Adhere the foam rubber to the mudguard (outer part)
Adapter
Sponge rubber
Apply the protective frame film to the down tube.
1. Fastening possibility
by means of an adapter
M4
M6
T20
The MUDROCKER FRONT fork adapter has various options for at-
tachment to the fork bridge. Please check in advance whether the
existing bolt-on options match those on your fork. The adapter
must be fixed at least with the central M6 screw or 2 off-cem-
ter screws. The adapter can also be rotated 180 degrees. The
minimum distance to the tyre, even at full travel, must be kept
in mind.
M6
M6
T20
T20
25,8
ROCKSHOX
ROCKSHOX
ADAPTER
ADAPTER
mm
SUNTOUR
SUNTOUR
PLATTE/PLATE
PLATTE/PLATE
M3
M3
M6
M5
M5
MUDROCKER
76mm
64mm
42mm
GERMANY
GERMANY
Alignment for Fox
1.1.
1.1. Screw the adapter onto the mudguard in keeping with the
required hole pattern. Use the enclosed self-tapping screws for
this. (TX20)
1.2. Screw the adapter onto the fork bridge
2. Fastening possibility
by means of a hook and loop fasteners or cable binders
2.0.
M4
Mounting on the down tube
2.1.
2.1. Thread a long strap through and pull it tight.
MOUNTAIN
1.2.
