SKS Germany COMPIT Instruction Manual
Smartphone/power bank holder
Hide thumbs
Also See for COMPIT:
- Instructions for use manual (44 pages) ,
- Instructions for use manual (384 pages) ,
- Instruction manual (40 pages)
Related Manuals for SKS Germany COMPIT
Summary of Contents for SKS Germany COMPIT

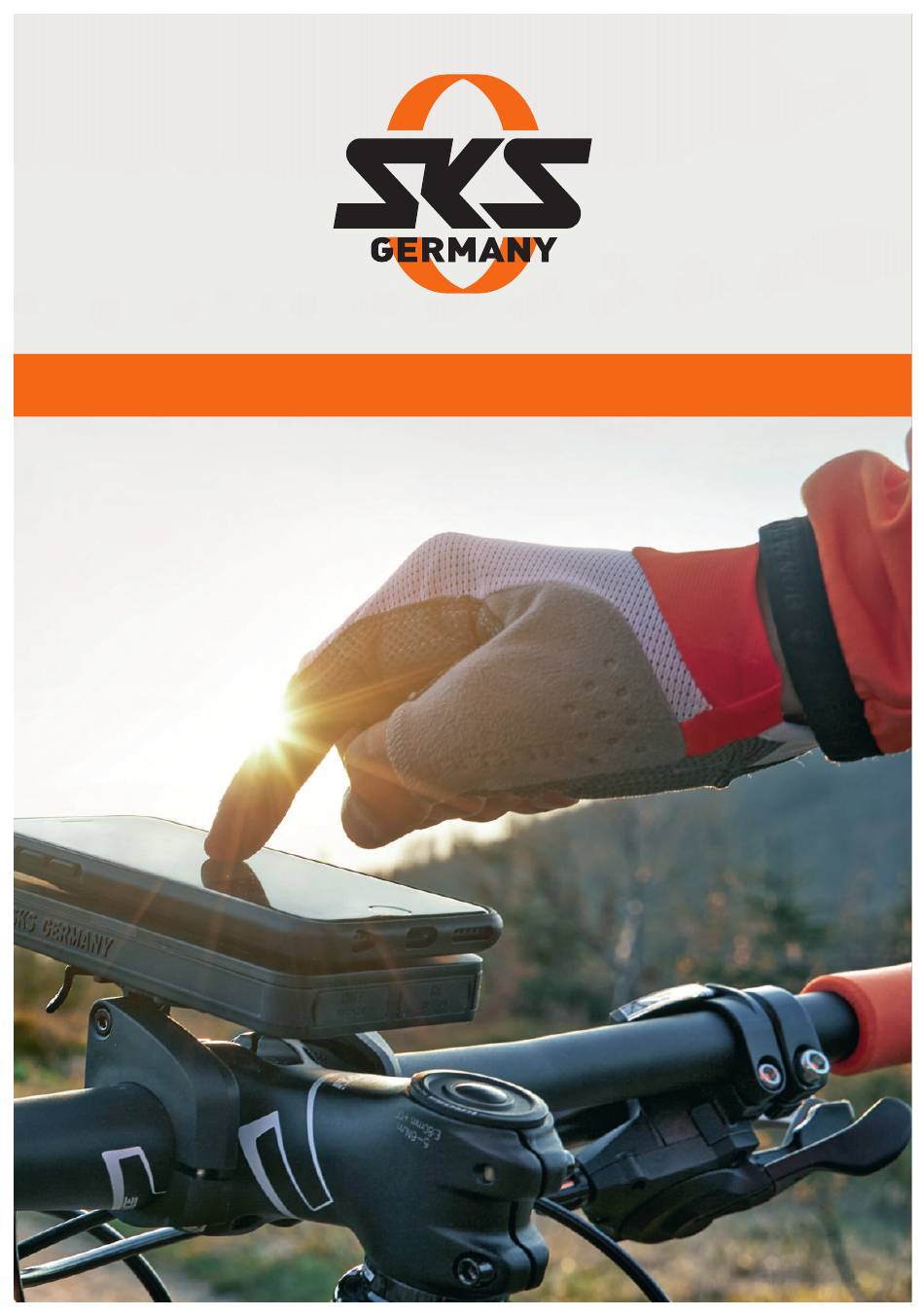

- Page 1 COMPIT · COMPIT + · COMPIT/STEM · COMPIT/STEM + Instruction Manual - Version 10.2021...
-
Page 3: Table Of Contents
COMPIT STEM+ COMPIT SPACER Technical data COM/UNIT LED status display Unpacking and checking the scope of delivery Attaching and removing COMPIT to bike handlebars Attaching and removing smartphone to COMPIT Adjusting the inclination Maintaining the product Accessories Disposing of the product... -
Page 4: Notes On The Manual And The Manufacturer

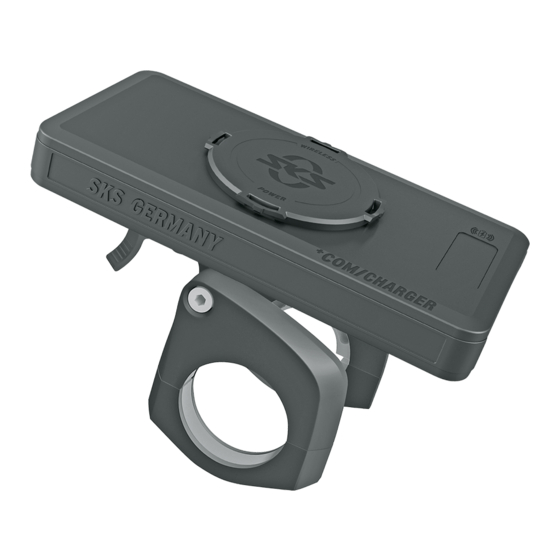

Information about the manual and the manufacturer This manual will help you to safely use the COMPIT and COMPIT + as well as the COMPIT STEM and COMPIT STEM + product family. The COMPIT is a smartphone holder for smartphones. The COMPIT + consists of a COMPIT and COM/UNIT. -
Page 5: Copyright
Information about the manual and the manufacturer Copyright This manual contains information that is subject to copyright. This manual may not be copied, printed, filmed, processed, reproduced or distributed in any form, in whole or in part, without the prior written consent of SKS metaplast Scheffer-Klute GmbH. -
Page 6: Safety Instructions
The + COM/UNIT is intended for charging a smartphone and can be mounted on the COMPIT. The smartphone can only be used on the COMPIT and the + COM/UNIT with a COVER, COVER ADAPTER or special bag not included in the scope of delivery. Please refer to the Accessories section, page 32. -
Page 7: Basic Safety Instructions
➤ Only use authorised power adapters. Do not use the power adapter, COMPIT or + COM/UNIT if they are damaged. ➤ Never open the housing of the + COM/UNIT. Always have repair work carried out by qualified ➤... -
Page 8: Design Features Of Warnings
Safety Warnings CAUTION Warning with the word CAUTION warn of a situation that may result in minor or moderate injuries. Property damage ATTENTION This information warns of a situation that will result in property damage and reduced functionality. Tips Tips contain additional information. -
Page 9: Scope Of Delivery
Side panels for the docking station 2x Clamping arms for the COMPIT without an adapter 2x Clamping arms for the COMPIT with an adapter for the Bosch Intuvia (R: right, L: left) 2x Screws for mounting the COMPIT with clamping arms on the handlebar... - Page 10 Rubber adapters for a handlebar with a diameter of 25.4 mm, 4x PVC spacers, 4x Screws for the COMPIT spacers for the docking station; (4x25), 2x Screws for the COMPIT spacers for the COM/LIGHT; (5x25), 2x Self locking nuts M4, 2x for the COMPIT adapter O-rings for the docking station, 2x Screws for the docking station;...
-
Page 11: Compit
Side panels for the docking station 2x Clamping arms for the COMPIT without an adapter 2x Clamping arms for the COMPIT with an adapter for the Bosch Intuvia (R: right, L: left) 2x Screws for mounting the COMPIT with clamping arms on the handlebar... -
Page 12: Compit Stem
Rubber adapters for a handlebar with a diameter of 25.4 mm, 4x PVC spacers, 4x Screws for the COMPIT spacers for the docking station; (4x25), 2x Screws for the COMPIT spacers for the COM/LIGHT; (5x25), 2x Self locking nuts M4, 2x for the COMPIT adapter O-rings for the docking station, 2x Screws for the docking station;... -
Page 13: Compit Stem
Description Overview of the COMPIT/STEM + DESIGNATION COMPIT/STEM + COM/UNIT + COM/UNIT charging cable Overview of the COM/UNIT DESIGNATION + COM/UNIT + COM/UNIT charging cable... -
Page 14: Mounting Options
Description Mounting options for the COMPIT COMPIT 35 mm Requirements You can mount the COMPIT on a bicycle if your bike meets the following requirements: max. 80 mm 22,2 mm 25,4 mm Ø 31,8 mm... - Page 15 Docking station for mounting the smartphone with a cover or the + COM/UNIT 1x Side panels for the docking station and clamping arms for the COMPIT without an adapter or clamping arms for the COMPIT with an adapter (Bosch Intuvia) (2x each) ALWAYS Self-locking nuts M4, 2x...
-
Page 16: Assembly
Description O-rings for the docking station Screws for the docking station Allen key, 3 mm SKS GERMANY 2 Nm... -
Page 17: Compit & Compit
Description Mounting the COMPIT Proceed as follows to mount the COMPIT/E on the handlebar of your bike: ➤ Choose the rubber adapters that are suitable for the handlebar of your bike. ➤ Insert the appropriate rubber adapters (1) into the clamping arms in the direction of the arrows as... - Page 18 Description ➤ Mount the COMPIT with the clamping arms on the handlebar of the bike.
- Page 19 W hen mounting the COMPIT, tighten the screws evenly, alternating between them. ➤ M ount the COMPIT on the handlebar of the bike with a torque wrench. Tighten the screws evenly (alternating between them) using the torque (2 Nm) indicated on the clamping arms.
-
Page 20: Compit 35Mm
Mounting the COMPIT + COMPIT + The COMPIT + is mounted in the same way as the COMPIT. The COM/UNIT is mounted with a twist here between the smartphone and the bayonet mount. -
Page 21: Compit Widening
Mounting the COMPIT spacers Required: PVC spacers, 4x Screws for the COMPIT spacers for the docking station; (4x25), 2x For on-board computers and ahead stems with a maximum width of 80 mm. Pre-mounting of the side panels on the handlebar... - Page 22 Mounting the COMPIT Mounting the COMPIT spacers OPTIONAL OPTIONAL 2 Nm SKS GERMANY 2 Nm SKS GERMANY 2 Nm ➤ Also compatible with COMPIT 35 mm clamp.
-
Page 23: Compit Stem
Mounting the COMPIT/STEM COMPIT/STEM Required: Requirement Headset ø 1 inches For ahead stems ➤ Remove the headset cap ➤ If necessary, replace a spacer with the COMPIT STEM ➤ Screw the headset cap back in place. Observe the specified torque valves. -
Page 24: Compit Stem
Mounting the COMPIT/STEM + COMPIT/STEM + Required: The COMPIT STEM + is mounted in the same way as the COMPIT STEM. The + COM/UNIT is mounted with a twist here between the smartphone and the bayonet mount. -
Page 25: Accessories
Mounting the COMPIT COVER + COMPIT ADAPTER COMPIT COVER INSTALLATION REMOVAL ➊ ➊ ➋ ➋ ➌ ➍ COMPIT UNIVERSAL COVER INSTALLATION SILICONE, TPU COVER ➌ ➍ ➊ ➋... -
Page 26: Task And Function
Task and function COMPIT The COMPIT is used for mounting a smartphone on the handlebar of a bike. To do this, the mobile phone must be equipped with a special COMPIT COVER. The docking station allows the smartphone to be mounted horizontally and vertically with a single twist. The tilt adjustment allows the mobile phone to be moved to the desired position. -
Page 27: Technical Data Com/Unit
DC 5 V/1 A Battery type Lithium polymer battery Battery capacity 5000 mAh NFC chip NTAG 216, 924 bytes Protection rating IP54 Operating temperature -15 ~ 60 °C Charging temperature 0 ~ 45 °C * Only in combination with the COMPIT/E... -
Page 28: Led Status Display
Description LED status display + COM/UNIT STATUS DISPLAY Battery display 4 LEDs flash orange +COM/UNIT is one after the other charged 1 LED lights up 0%-25% battery capacity 2 LEDs light up 25%-50% battery capacity 3 LEDs light up 50%-75% battery capacity 4 LEDs light up 75%-100% battery... -
Page 29: Attaching And Removing Compit To Bike Handlebars
➤ Insert your smartphone into the corresponding cover according to the relevant instructions. ➤ P lace your smartphone on the COMPIT (as shown in 1 or 2) and turn it (about 45°) either to the right or left above the docking station until you hear it click into place. - Page 30 The safety lever (5) is locked. Proceed as follows to remove your smartphone from the COMPIT: ➤ Push the safety lever (5) downwards. ➤ R emove your smartphone from the COMPIT by turning it (about 45°) away from the docking station.
-
Page 31: Adjusting The Inclination
Adjusting the tilt Adjusting the tilt You can move your smartphone to the desired position by adjusting the tilt on the COMPIT. Proceed as follows to adjust the tilt: ➤ P ress the smartphone (1) on the COMPIT downwards or upwards until you have reached the desired position. -
Page 32: Maintaining The Product
Product maintenance/accessories Product maintenance Proceed as follows to maintain the product: ➤ If necessary, clean the exterior of the product with a damp cloth. Accessories Designation Order number Cover for the iPhone 6/7/8 11538 Cover for the iPhone 6+/7+/8+ 11539 Cover for the iPhone X/ XS 11540 Cover for the iPhone XR/11 11633... -
Page 33: Disposing Of The Product
Accessories/Disposal of the product Designation Order number Cover for the SAMSUNG S21+ 5G 11642 Cover for the SAMSUNG S21 ultra 5G 11643 Cover for the HUAWEI P20 PRO+ 11579 Designation Order number Cover adapter 11541 Dimensions: 60 x 60 x 4 mm Designation Order number COM/SMARTBAG... -
Page 34: Warranty Statement
(proof of purchase) for all parts included in the scope of delivery in accordance with the statutory regulations. This excludes wear parts – in particular the +COM/UNIT battery unit. SKS GERMANY provides a 6-month warranty for these parts. Improper handling or incorrect use are excluded from the liability for defects. -
Page 35: Returning The Product To Customer Service
Product returns to customer services Product returns to customer services Proceed as follows as soon as you notice damage to the product: ➤ S end the product in its original packaging and with a precise description of the damage to the following address for repair: SKS metaplast Scheffer-Klute GmbH Zur Huberstushalle 4... - Page 36 SKS-GERMANY.COM...
