COMPIT · COMPIT + /POWER · COMPIT/STEM
+ COM/CHARGER · COM/PAD
Instruction Manual - Version 11.2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMPIT and is the answer not in the manual?

Questions and answers

Related Manuals for SKS Germany COMPIT

Summary of Contents for SKS Germany COMPIT

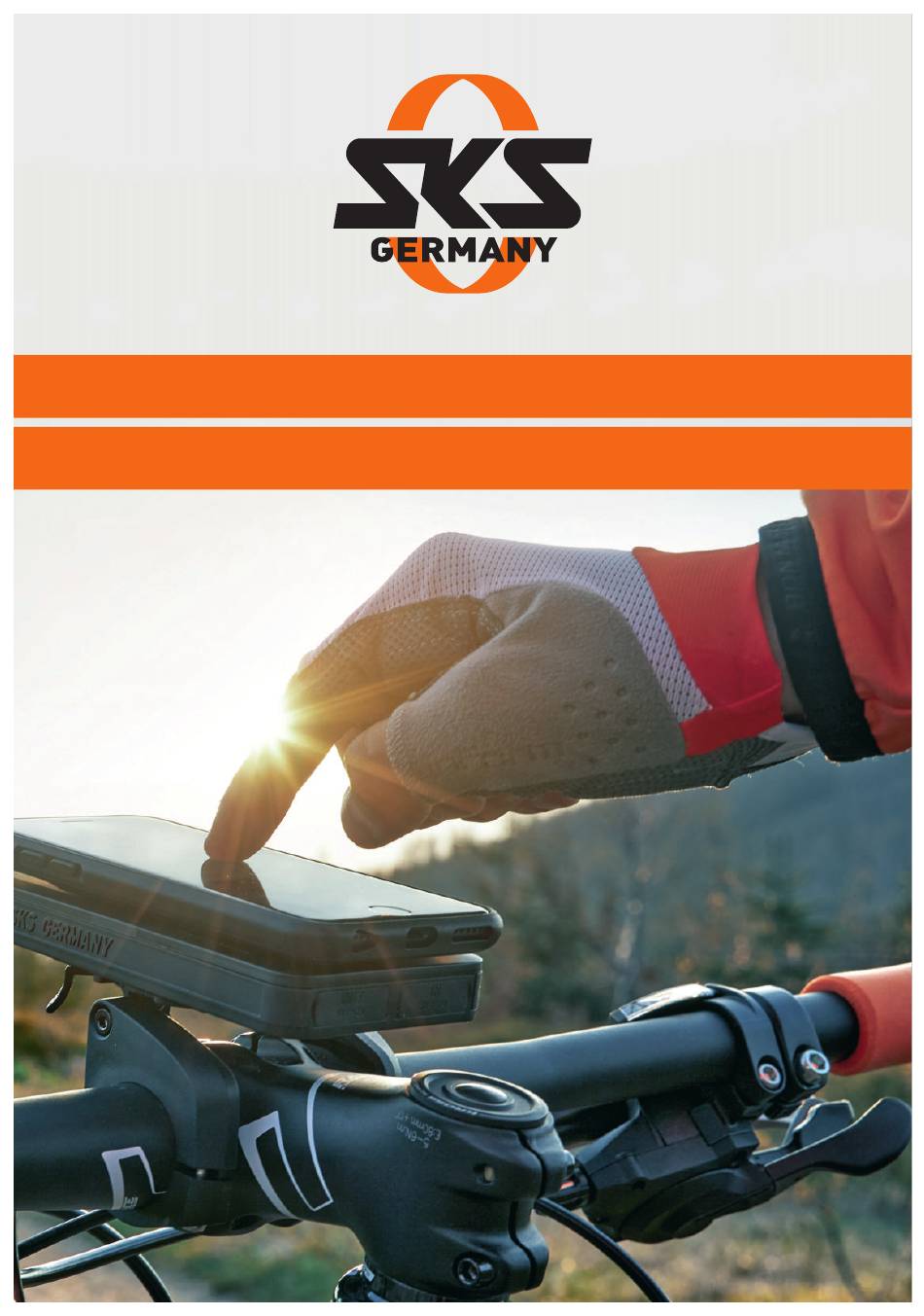

  • Page 1 COMPIT · COMPIT + /POWER · COMPIT/STEM + COM/CHARGER · COM/PAD Instruction Manual - Version 11.2022...

  • Page 3: Table Of Contents

    COMPIT+ & +COM/CHARGER COMPIT STEM COMPIT SPACER Technical data +COM/CHARGER LED status display Unpacking and checking the scope of delivery Attaching and removing COMPIT to bike handlebars Attaching and removing smartphone to COMPIT Adjusting the inclination COM/PAD Maintaining the product Accessories...
  • Page 4 Information about the manual and the manufacturer This manual will help you to safely use the COMPIT and COMPIT + /POWER as well as the COMPIT STEM and COMPIT STEM + product family. The COMPIT is a smartphone holder for smartphones. The COMPIT + /POWER consists of a COMPIT and +COM/CHARGER.

  • Page 5: Copyright

    Information about the manual and the manufacturer Copyright This manual contains information that is subject to copyright. This manual may not be copied, printed, filmed, processed, reproduced or distributed in any form, in whole or in part, without the prior written consent of SKS metaplast Scheffer-Klute GmbH.

  • Page 6: Compit

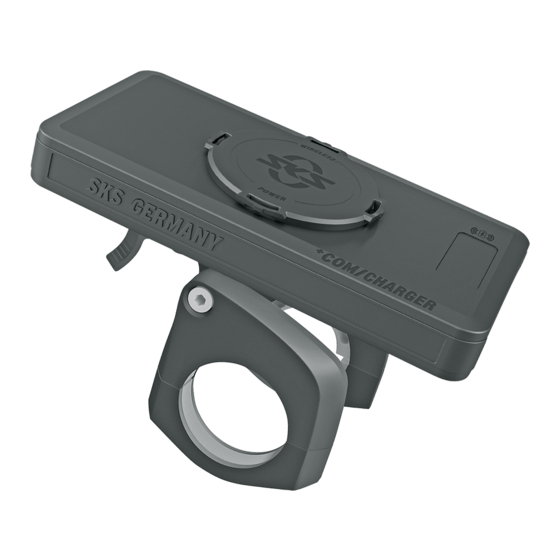

    The + COM/CHARGER is intended for charging a smartphone and can be mounted on the COMPIT. The smartphone can only be used on the COMPIT and the + COM/CHARGER with a COVER, COVER ADAPTER or special bag not included in the scope of delivery. Please refer to the Accessories section, page 32.
  • Page 7 ➤ Only use authorised power adapters. Do not use the power adapter, COMPIT or + COM/CHARGER if they are damaged. ➤ Never open the housing of the + COM/CHARGER. Always have repair work carried ➤...
  • Page 8 Safety Warnings CAUTION Warning with the word CAUTION warn of a situation that may result in minor or moderate injuries. Property damage ATTENTION This information warns of a situation that will result in property damage and reduced functionality. Tips Tips contain additional information.
  • Page 9 Side panels for the docking station 2x Clamping arms for the COMPIT without an adapter 2x Clamping arms for the COMPIT with an adapter for the Bosch Intuvia (R: right, L: left) 2x Screws for mounting the COMPIT with clamping arms on the handlebar...
  • Page 10 Rubber adapters for a handlebar with a diameter of 25.4 mm, 4x PVC spacers, 4x Screws for the COMPIT spacers for the docking station; (4x25), 2x Screws for the COMPIT spacers for the COM/LIGHT; (5x25), 2x Self locking nuts M4, 2x for the COMPIT adapter O-rings for the docking station, 2x Screws for the docking station;...
  • Page 11 Side panels for the docking station 2x Clamping arms for the COMPIT without an adapter 2x Clamping arms for the COMPIT with an adapter for the Bosch Intuvia (R: right, L: left) 2x Screws for mounting the COMPIT with clamping arms on the handlebar...

  • Page 12: Com/Charger

    Rubber adapters for a handlebar with a diameter of 25.4 mm, 4x PVC spacers, 4x Screws for the COMPIT spacers for the docking station; (4x25), 2x Screws for the COMPIT spacers for the COM/LIGHT; (5x25), 2x Self locking nuts M4, 2x for the COMPIT adapter O-rings for the docking station, 2x Screws for the docking station;...
  • Page 13 Description Overview of the COMPIT/STEM DESIGNATION COMPIT/STEM Overview of the COM/CHARGER DESIGNATION + COM/CHARGER + COM/CHARGER charging cable...

  • Page 14: Mounting Options

    Description Mounting options for the COMPIT and COMPIT + /POWER COMPIT 35 mm Requirements You can mount the COMPIT on a bicycle if your bike meets the following requirements: max. 80 mm 22,2 mm 25,4 mm Ø 31,8 mm...
  • Page 15 Docking station for mounting the smartphone with a cover or the + COM/CHARGER 1x Side panels for the docking station and clamping arms for the COMPIT without an adapter or clamping arms for the COMPIT with an adapter (Bosch Intuvia) (2x each) ALWAYS Self-locking nuts M4, 2x...
  • Page 16 Description O-rings for the docking station Screws for the docking station Allen key, 3 mm SKS GERMANY 2 Nm...
  • Page 17 Description Mounting the COMPIT Proceed as follows to mount the COMPIT on the handlebar of your bike: ➤ Choose the rubber adapters that are suitable for the handlebar of your bike. ➤ Insert the appropriate rubber adapters (1) into the clamping arms in the direction...
  • Page 18 Description ➤ Mount the COMPIT with the clamping arms on the handlebar of the bike.
  • Page 19 W hen mounting the COMPIT, tighten the screws evenly, alternating between them. ➤ M ount the COMPIT on the handlebar of the bike with a torque wrench. Tighten the screws evenly (alternating between them) using the torque (2 Nm) indicated on the clamping arms.
  • Page 20 Mounting the COMPIT COMPIT 35 mm Mounting Pre-assembly Mounting options COMPIT 35 mm...
  • Page 21 Mounting the COMPIT spacers Required: PVC spacers, 4x Screws for the COMPIT spacers for the docking station; (4x25), 2x For on-board computers and ahead stems with a maximum width of 80 mm. Pre-mounting of the side panels on the handlebar...
  • Page 22 Mounting the COMPIT Mounting the COMPIT spacers OPTIONAL OPTIONAL 2 Nm SKS GERMANY 2 Nm SKS GERMANY 2 Nm ➤ Also compatible with COMPIT 35 mm clamp.

  • Page 23: Compit Stem

    Mounting the COMPIT/STEM COMPIT/STEM Required: Requirement Headset ø 1 inches For ahead stems ➤ Remove the headset cap ➤ If necessary, replace a spacer with the COMPIT/STEM ➤ Screw the headset cap back in place. Observe the specified torque valves.

  • Page 24: Compit Cover

    COMPIT COVER COMPIT COVER INSTALLATION ➊ ➋ ➌ ➍ REMOVAL ➊ ➋...

  • Page 25: Compit Adapter

    COMPIT ADAPTER COMPIT UNIVERSAL COVER INSTALLATION ➌ ➊ ➋ SILICONE, TPU COVER ➍...

  • Page 26: Task And Function

    Task and function COMPIT The COMPIT is used for mounting a smartphone on the handlebar of a bike. To do this, the mobile phone must be equipped with a special COMPIT COVER. The docking station allows the smartphone to be mounted horizontally and vertically with a single twist. The tilt adjustment allows the mobile phone to be moved to the desired position.
  • Page 27 + COM/CHARGER Technical data + COM/CHARGER Dimensions 140 x 72 x 23 mm Operating temperature -10 ~ 60°C Charging temperature 0~45°C USB C input DC 5V-3,1A / 9V-2A / 12V-1,5A USB C output DC 5V-3,1A / 9V-2A / 12V-1,7A Output power USB A DC 5V-4,5A / 9V-2A / 12V-1,5A Wireless efficiency >70%...

  • Page 28: Led Status Display

    Description LED status display + COM/CHARGER STATUS DISPLAY Battery display Percentage display +COM/CHARGER flashes is charged 0%-100% Batteriekapazität Indicator for Blue Standby or charging wireless charging process complete Blue, flashing (~1Hz) Charging process Charging error ➤ Aufladen von 3 Geräten gleichzeitig (induktiv und mit Kabel) Unpacking and checking the scope of delivery ➤...
  • Page 29 ➤ Insert your smartphone into the corresponding cover according to the relevant instructions. ➤ P lace your smartphone on the COMPIT (as shown in 1 or 2) and turn it (about 45°) either to the right or left above the docking station until you hear it click into place.
  • Page 30 The safety lever (5) is locked. Proceed as follows to remove your smartphone from the COMPIT: ➤ Push the safety lever (5) downwards. ➤ R emove your smartphone from the COMPIT by turning it (about 45°) away from the docking station.
  • Page 31 Adjusting the tilt Adjusting the tilt You can move your smartphone to the desired position by adjusting the tilt on the COMPIT. Proceed as follows to adjust the tilt: ➤ P ress the smartphone (1) on the COMPIT downwards or upwards until you have reached the desired position.

  • Page 32: Com/Pad

    2. Connect the COMPIT to the e-bike For e-bikes with a 12 V-36 V lighting system or power supply Route the COMPIT connection cable to the motor, ensuring that the cable is routed cleanly along the cable routing specific to the bicycle model.
  • Page 33 OPTIONAL! Screw in the anti-theft lock screw as far as it will go. Place the COM/PAD on the COMPIT and turn it (about 45°) either to the right or left above the docking station until you hear it click into place.
  • Page 34 Mounting the COM/PAD 4. Activate the COM/PAD ON/OFF Switch on the e-bike Touch 2 sec. USB C-PD ON USB C-PD OFF 5. Charge the mobile device wirelessly 1. Switch on the COM/PAD. LED indicator lights up blue 2. Attach the mobile device and lock it by turning it 3.
  • Page 35 Mounting the COM/PAD 5. Charge the mobile device with cable 1. Switch on the COM/PAD USB C PD output. LED indicator is off! 2. Connect the cable (not supplied) to the COM/PAD. 3. Attach the mobile device and lock it by turning it 4.

  • Page 36: Accessories

    Product maintenance/accessories Product maintenance Proceed as follows to maintain the product: ➤ If necessary, clean the exterior of the product with a damp cloth. Accessories Designation Order number Cover iPhone 6/7 /8 11538 Cover iPhone 6+/7+/8+ 11539 Cover iPhone X/ XS 11540 Cover iPhone XR/11 11633...

  • Page 37: Disposing Of The Product

    Accessories/Disposal of the product Designation Order number Cover adapter 11541 Dimensions: 60 x 60 x 4 mm Designation Order number COM/SMARTBAG 11671 Designation Order number COM/CAM adapter 11545 COM/CAGE VELO 11608 COM/LIGHT 11582 COM/ADD bottle holder 11555 Disposal of the product In Germany ➤ Dispose of the packaging according to its type.
  • Page 38 (proof of purchase) for all parts included in the scope of delivery in accordance with the statutory regulations. This excludes wear parts – in particular the +COM/CHARGER battery unit. SKS GERMANY provides a 6-month warranty for these parts. Improper handling or incorrect use are excluded from the liability for defects.
  • Page 39 Product returns to customer services Product returns to customer services Proceed as follows as soon as you notice damage to the product: ➤ S end the product in its original packaging and with a precise description of the damage to the following address for repair: SKS metaplast Scheffer-Klute GmbH Zur Huberstushalle 4 59846 Sundern / Germany...
  • Page 40 SKS-GERMANY.COM...
