Exsys EX-62021 Manual

CONNECTORS & LEDs
RJ45 Port:
RJ45 Port
Pin Signal Pin Signal
1 BI_DA+ 4 BI_DC+
2 BI_DA- 5 BI_DC-
87654321
3 BI_DB+ 6 BI_DB-
Status LEDs:
LED Name Color LED Function
Steady on: Powered
PWR Yellow
Blinking: Power supply error
Link / Activity Steady on: Linked
Green
(L/A) Blinking: Data Transmission
5V USB-C Port:
Power supply from any approved USB power source,
e.g. USB charger, Computer USB port, USB hub... (min. 5W)
5
HARDWARE INSTALLATION
Please read the following installation instructions.
1. Place the EX-62021 in the desired location, e.g. with the DIN rail kit on a mounting rail.
Pin Signal
7 BI_DD+
8 BI_DD-
2. Connect your network devices to the switch using a network cable.
3. Connect the USB cable to the USB-C port of the switch and to the USB power supply of
your choice and switch it on.
4. After switching on, the PWR indicator lights up. If the indicator does not light up, check the
correct connection to the power supply.
5. If all cables are connected correctly, the indicators light up according to the port status of
the LEDs (page 5)
CLEANING
To clean the device, please use only a dry, non-fibrous cloth and remove the dirt with light
pressure. In the area of the connections, please make sure that no fibers of the cloth are left in
the socket. Attention! Never use a moist or wet cloth for cleaning!
Germany: Switzerland:
EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH
Industriestrasse 8 Dübendorfstrasse 17
61449 Steinbach 8602 Wangen
www.exsys.ch
www.exsys.de
The DIN-Rail Kit is fixed with
two screws on the side
Italy:
EXSYS Italia Srl
Via Belvedere, 45/B
I-22100 Como
www.exsys.it
6
Anleitung Anleitung
Vers. 1.0 / 13.01.25

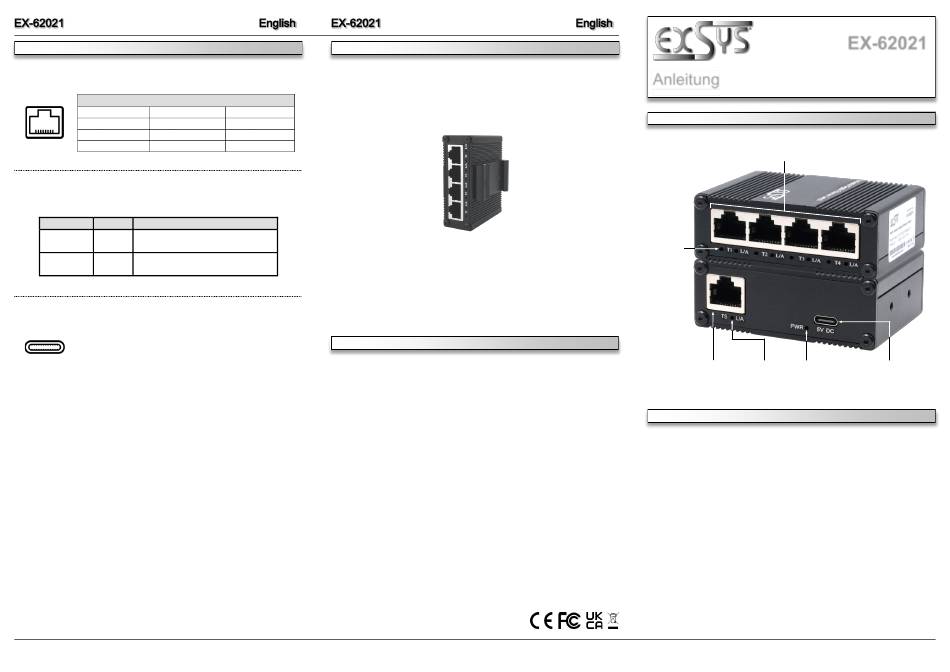

AUFBAU
4x RJ45
10/100/1000Base-T
Status LED
Status LED 1x RJ45 Status LED Power LED
10/100/1000Base-T
BESCHREIBUNG & TECHNISCHE DATEN
Der winzige industrietaugliche 5-Port Gigabit Switch EX-62021 bietet trotz seiner geringen
Aussenmaße volle Gigabit Leistung an allen Ports. Das robuste Metallgehäuse und der
erweiterte Betriebstemperaturbereich von -40°C bis 80°C ermöglichen den Einsatz auch in
rauen Umgebungen. Entgegen herkömmlichen Ethernet Switches erfolgt die Stromversorgung
über einen USB-C Port wodurch er äusserst universell eingesetzt werden kann.
Kompatibilität: Gigabit Ethernet 10/100/1000Base-T
Betriebssysteme: Alle Betriebssysteme
Anschlüsse: 5x RJ45-Buchse, 1x USB-C 5VDC
Lieferumfang: EX-62021, DIN-Rail Kit, USB-A zu USB-C Kabel, Anleitung
1
EX-62021
5V USB-C zur
Stromversorgung
