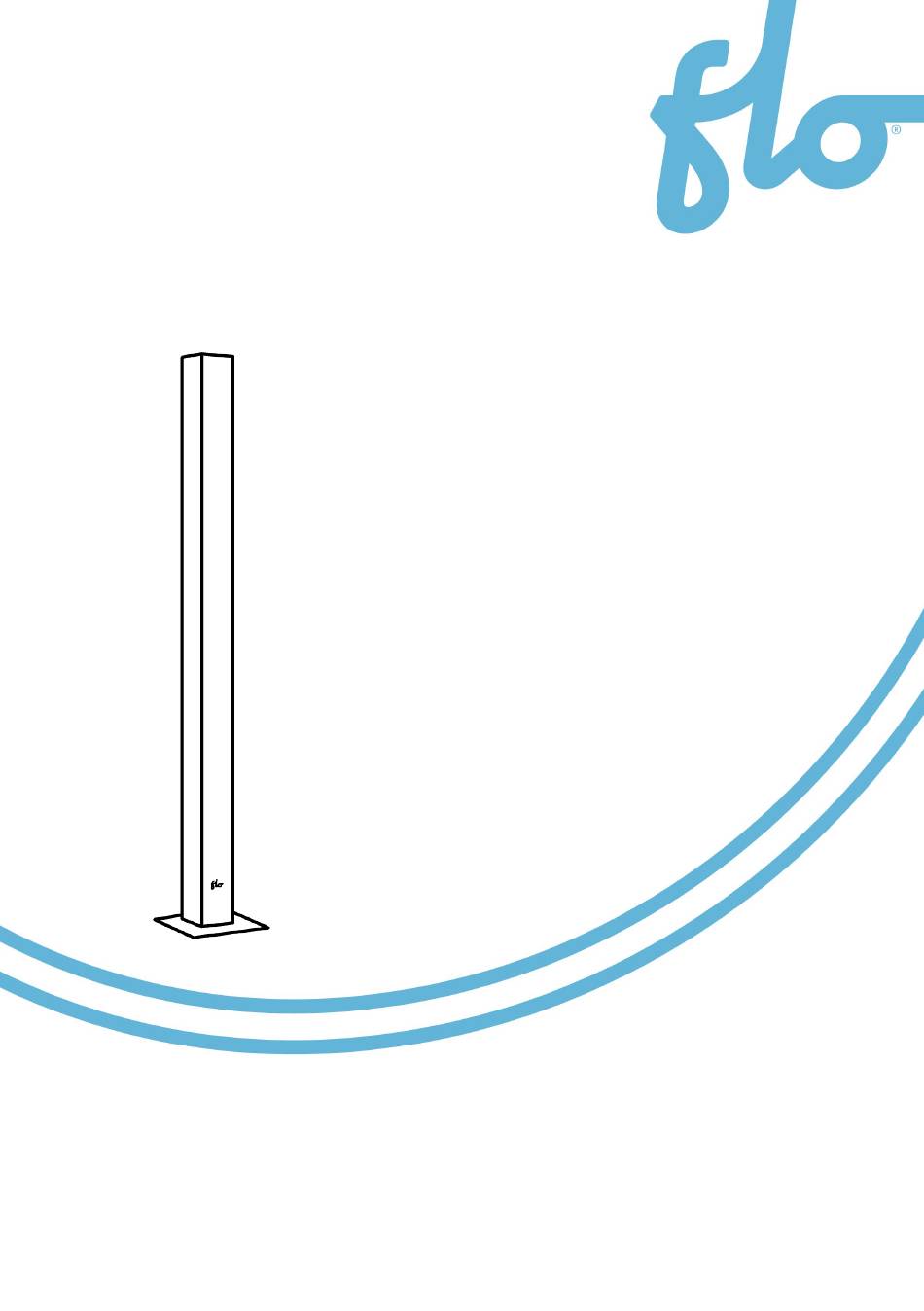

- Page 1 Basic Pedestal ® Installation Guide...
-
Page 2: Table Of Contents
Table of Contents 1. Important Safety Instructions ..........3 1.1 General Safety Instructions ............... 3 2. About the Pedestal ..............5 3. Getting Started ..............6 3.1 Moving, Storing and Lifting the pedestal ........6 3.2 Box Content ..................6 3.3 Specifications ..................7 3.4 Recommended Tools and Material .......... -
Page 3: Important Safety Instructions
FLO web site (flo.com). This document provides instructions to install the FLO Basic Pedestal and should not be used for any other product. CAUTION: This symbol is used to provide awareness... - Page 4 If, for any reason, it is not possible to install the pedestal according to the procedures provided in this guide, the installer should contact the FLO team. FLO cannot be held responsible for any damage that may occur resulting from custom installations not described in this document.
-
Page 5: About The Pedestal
2. About the Pedestal The FLO Basic Pedestal is a robust solution designed for durability and versatility. Constructed from aluminium, this pedestal boasts an IK10 rating, ensuring exceptional impact resistance. Its corrosion- resistant properties make it suitable for all installation contexts. The... -
Page 6: Getting Started
3. Getting Started 3.1 Moving, Storing and Lifting the pedestal The pedestal must be moved and stored according to the following instructions: Carefully manipulate the Pedestal to ensure safety. • During storage, the cable retractor should be kept in its •... -
Page 7: Specifications
3.3 Specifications Specification Details Material Aluminium Finish Powder coat paint Dimensions (H x W x D) 54” x 4” x 4” Body only (excluding base) (1371.6 x 101.6 x 101.6 mm) Dimensions (H x W x D) 54” x 9.8” x 9.8” Body with base (1371.6 x 250 x 250 mm) Weight... -
Page 8: Recommended Tools And Material
3.4 Recommended Tools and Material Part Image Details Ratchet Use for anchoring Use appropriate socket size to tighten Socket the nuts to the anchor bolts and the screws for the mounting plate. Use to lock in place a Wrench nut in case the base needs leveling. - Page 9 Part Image Details Use to cut hole to Hole saw install flexible conduit (optional) inside the pedestal Edge Use to protect from protector for sharp edges (ex. 1/8 in. (3 mm) electrical wire running thick wall inside the pedestal) (optional) Grommet for Use to protect from 1/8 in.
-
Page 10: Installation Instructions
NOTE: If replacing a CoRe+ pedestal from FLO, no modification is required as the anchor bolt pattern is compatible. -
Page 11: Preparation And Positioning
4.2 Preparation and Positioning Determine the location at which the pedestal is to be installed. The chosen location must be in in accordance with all local codes and ordinances. The pedestal should not obstruct the passage of, for instance, cars and pedestrians. Furthermore, the following criteria must be taken into consideration to determine the optimal location of the pedestal and the charging station (or charging stations): The location where the EV is normally parked... -
Page 12: Installation
2x 1½” (38 mm) PVC conduits. 4.3 Installation 1. Use the wall mounting plate delivered with the FLO Home charging station as a template to drill holes that will be used to fasten the mounting plate to the pedestal. - Page 13 Ensure that the conduit doesn’t interfere with the pedestal. 7. Once the base is leveled, secure the pedestal in place using nuts. 8. To complete the charging station installation, please refer to the installation guide of the FLO Home charging station.
-
Page 14: Service And Support
1-855-543-8356 service@flo.com 6. Limited Warranty for Specific Complementary Products Terms of the warranty can be found in a separate document available Products FLO Home’ on the FLO.com website, under ‘ ’ and ‘... -
Page 15: Copyright And Liability
Name: FLO_Basic Pedestal_Installation Guide_ V.1.0.1_2025-03-28_CA_US_EN Document ID: PRFM0142 FLO CA: © 2025 Services FLO Inc. All rights reserved. FLO, the FLO logo, and FLO HOME are trademarks of Services FLO Inc. FLO US: © 2025 FLO Services USA Inc. dba FLO Charging Solutions USA Inc.
