Electro-Voice ASP-58 Quick Start Manual

Electro-Voice | ASP-58 Adjustable subwoofer stand

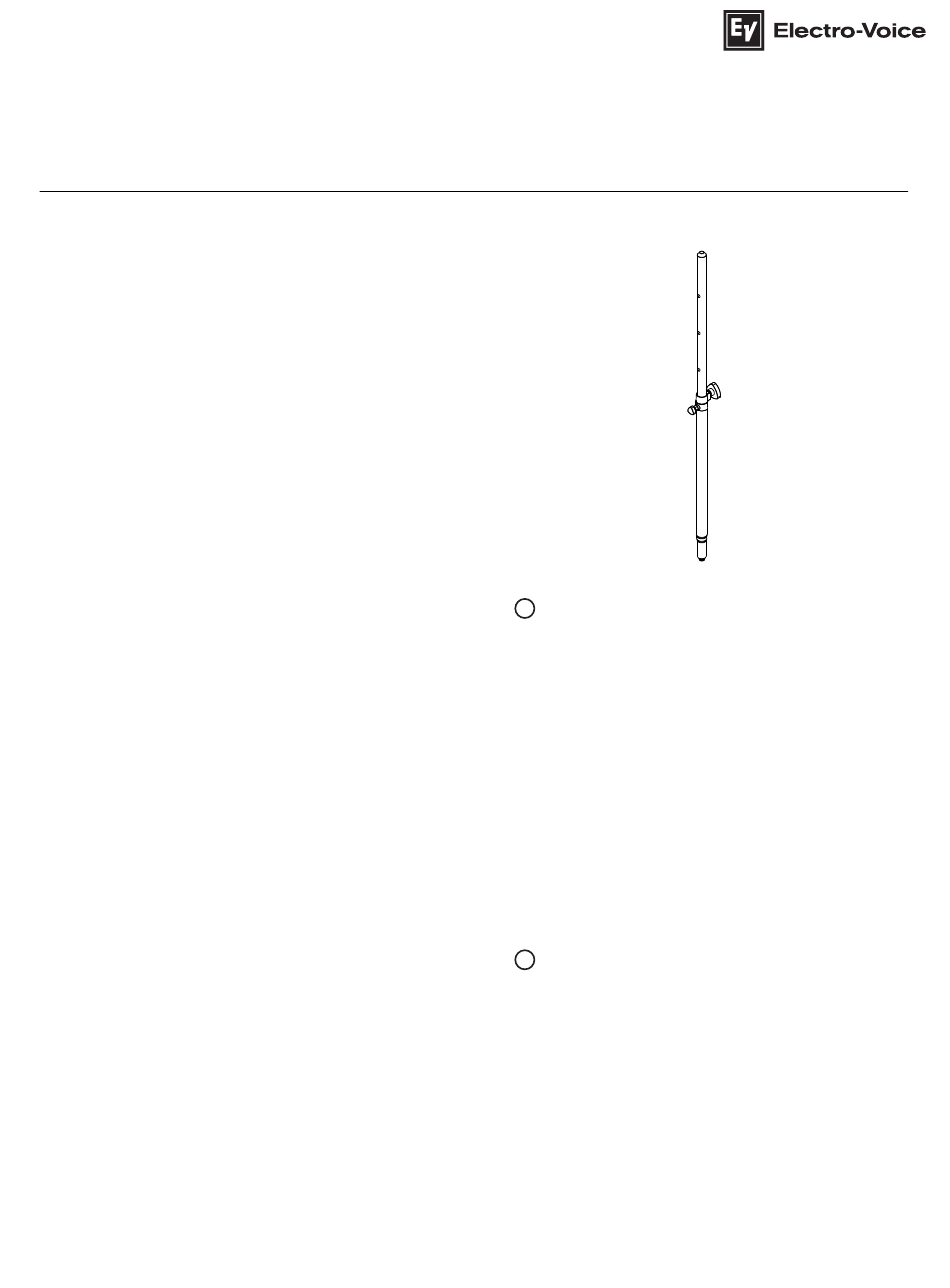

ASP-58
Adjustable subwoofer stand
General accessory
▪ Adjustable steel pole with powder coat
▪ Maximum weight up to 45.4 kg (100 lb)
▪ M20 thread on bottom to connect with
subwoofer pole cup and 35 mm (1-3/8 in) on
top to connect with a full-range loudspeaker
pole cup
▪ Maximum height adjustment up to 1460 mm
(57.5 in)
▪ Spring-loaded bolt with a locking screw to
secure the height of the pole
The ASP-58 pole is a manual height adjustable steel
subwoofer stand: from 935 mm to 1460 mm (36.8 inch
to 57.5 inch) in increments of 175 mm (6-7/8 in).
The pole is constructed with powder-coated steel to
withstand real world applications. To maximize the
stability, the bottom is designed for use with M20
threaded pole cups to securely attach to the
subwoofer. The top of the pole is designed with
industry standard 35 mm (1-3/8 in) diameter pole. The
pole is equipped with a spring-loaded bolt with a
locking screw to secure the height of the pole.
System overview
The ASP-58 is compatible with most subwoofers
featuring an M20 threaded mount, including the
following Electro-Voice subwoofer models:
• ELX200-12SP and ELX200-12S
• ELX200-18SP and ELX200-18S
• EKX-15SP and EKX-15S
• EKX-18SP and EKX-18S
• ETX-15SP
• ETX-18SP
• TX1181
• SbA750 and SbA760
• Gladiator G118
• Plasma P2
Mounting a loudspeaker on a pole
Notice
i
We recommend that two or more persons lift
and place heavier loudspeakers. Single person
lift and placement of heavier loudspeakers
could cause injury.
1. Place the subwoofer on a level stable surface.
2. Insert the M20 threaded pole into the combo
pole cup on the top of the subwoofer.
3. Turn the M20 threaded pole clockwise to secure
the pole to the subwoofer.
4. Adjust the ASP-58 pole to the desired height.
5. Using two (2) hands lift the loudspeaker.
6. Set the pole cup located on the bottom of the
loudspeaker onto the pole.
Notice
i
ASP-58 pole supports up to 45.4 kg (100 lb)
maximum weight. Always place the subwoofer
on a flat stable surface. The system stability
while mounted on the ASP-58 pole is depend-
ent on the pole height setting and the size and
weight combination of the full-range speaker
and subwoofer. It is the responsibility of the
user to ensure the assembled system is secure
and stable. Misuse could lead to injury or
equipment damage.
