COMPOSED

INSTALLATION INSTRUCTIONS

73085T-B9

Deck-Mount Diverter And Handshower

BEFORE YOU BEGIN

All information is based on the latest product information available at the time of publication. Kohler Co. reserves

the right to make changes in product characteristics, packaging, or availability at any time without notice.

Please leave these instructions for the consumer. They contain important information.

NOTES:

1. Shut off the main water supply.

2. Carefully read entire instructions before beginning installation.

3. Observe local plumbing codes.

4. This faucet has switching function only. It must work with a bath faucet (purchased separately) that has both

on/off and hot/cold mixing control.

5. The highest working pressure for handshower is 0.5MPa(5bar). If it exceeds 0.5MPa(5bar), a pressure reducer

is needed. The highest water and environment temperature is 60°C. Please the keep handshower, showerhead

and shower arm away from heater, or it may become damaged and cause injury to the user.

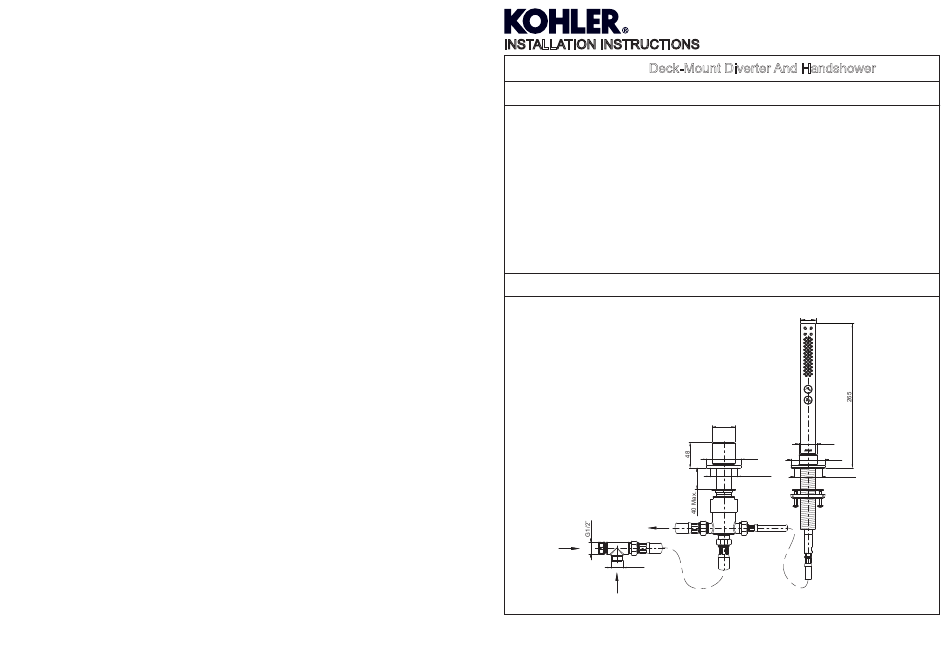

ROUGH-IN DIMENSIONS

Ø28

Ø42

Ø34

Ø64

Ø30~Ø40

G1/2˝

73085T-B9

1338424-2A-C

Need help?

Do you have a question about the 73085T-B9 and is the answer not in the manual?

Page 1 Deck-Mount Diverter And Handshower BEFORE YOU BEGIN All information is based on the latest product information available at the time of publication. Kohler Co. reserves the right to make changes in product characteristics, packaging, or availability at any time without notice.
Page 2 INSTALLATION How to Install the Tee Put the washer(2) into the nut(3) of the tee(4). Then connect the tee to one side body(1) of the deck-mount bath faucet as the figure shown. ① How to Install Diverter Body Remove the parts from the diverter body(10) according to the following order: ratchet ring(5), escutcheon(6) and washer(7).
Page 3 ④ Put the fiber washer(27) into the plug(28), Tighten the plug to one of the ports of the center tee(29) for the spout. Connect one side body(30) and the tee(4) on another side body with washers and one of the hoses provided with the deck-mount faucet (Remove another hose and put it away).
Page 4 Many cleaners may contain chemicals, such as ammonia, chlorine, toilet cleaner etc. which could adversely affect the finish and are not recommended for cleaning. 871527 3002771 Do not use abrasive cleaners or solvents on Kohler faucets and fittings. **Color code must be specified when ordering. 1338424-2A-C 1338424-2A-C...
