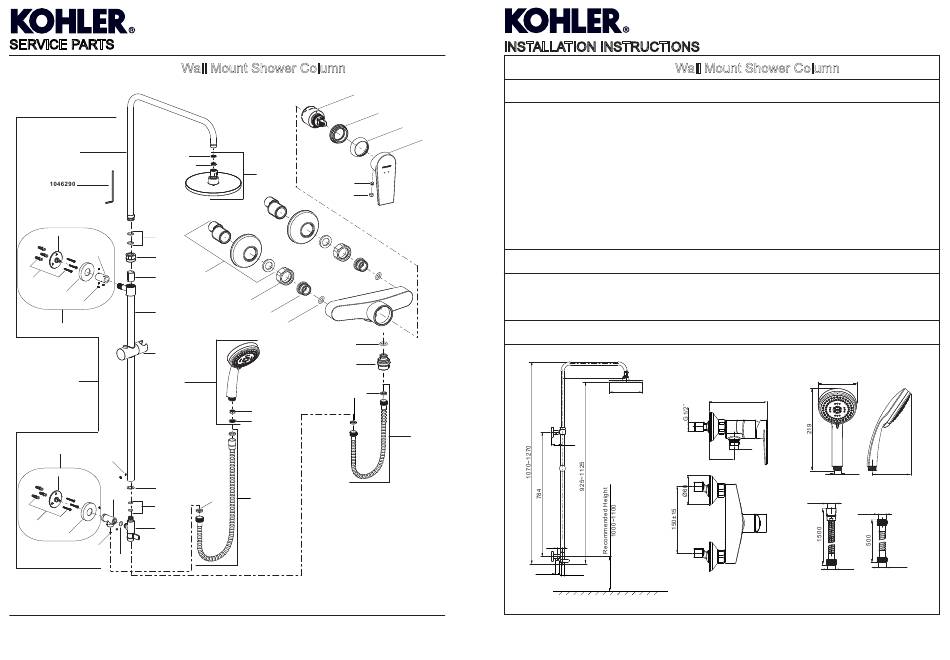

SERVICE PARTS
73194T-4
Wall Mount Shower Column
1121294**
77420
1030624
1196610
870992
1196622**
1196609**
1121285
1061576
1196621**
832751
1268608**
1256397**
1109471**
1196627**
1183428**
1256401**
832751
1196610
1196628
1196607**
870921
1061576
1183267**
1196621**
832751
870921
**Color code must be specified when ordering.
NOTE: For all Asia pacific regions (excluding China) add SP (SPxxxxxxx**) in front of the part number when ordering.
1287817-2A-B
1292054
1209777
1260904**
3013706
3008523
1219595**
864104**
1213567
3016381
3016381
1213561
880010
1030624
77420
880010
831727**
TAUT
INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
1209778**
1242786**
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. Inspect the supply tubing for damage. Replace as necessary. Shut off the water supplies to the fitting.
3. Observe local plumbing codes.
4. The minimum inlet water pressure for diverter is 0.05MPa(0.5bar).
5. Recommended minimum working pressures is 0.1MPa (1bar).
6. The highest working pressure for showerhead & handshower is 0.5 MPa(5 bar). If it exceeds 0.5MPa(5 bar), a
pressure reducer is needed. The highest water and environment temperature is 60°C. Please keep handshower,
showerhead and the shower arm away from heater, or it may become damaged and cause injury to the user.
OPERATION INSTRUCTIONS
Lift the handle gently. Turn clockwise for hot water, turn counter-clockwise for cold water.
Turn the diverter handle counter-clockwise for handspray; Turn clockwise for showerhead.
ROUGH-IN DIMENSIONS
1111667**
68
34
G1/2˝
G1/2˝
4
1287817-2A-B
73194T-4
Wall Mount Shower Column
400
Ø203
130
G1/2˝
56
Finished Floor
TAUT
Ø102
G1/2˝
102
G1/2˝
G1/2˝
G1/2˝
G1/2˝
73194T-4
1
