INSTALLATION INSTRUCTIONS
73078T-4

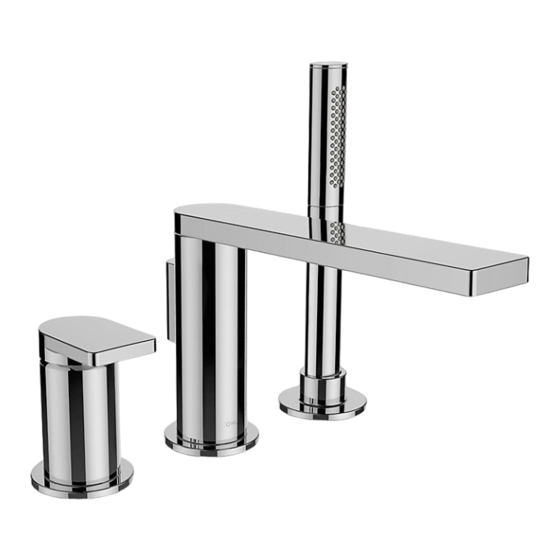

3 Hole Deck Mount Bath Faucet With Handshower
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. Inspect the supply tubing for damage and leakage. Replace and maintain as necessary.
3. Observe local plumbing codes.
4. If possible, install the faucet before installing the tub.
5. The highest working pressure for handshower is 0.5MPa(5bar). If it exceeds 0.5MPa(5bar), a pressure
reducer is needed. The highest water and environment temperature is 60ºC. Please keep handshower,
showerhead and shower arm away from heater, or it may become damaged and cause injury to the user.
HANDLE OPERATION
Lift the handle gently. Turn clockwise for hot water, turn counter-colckwise for cold water. Lift the diverter knob
behind the faucet for handshower.

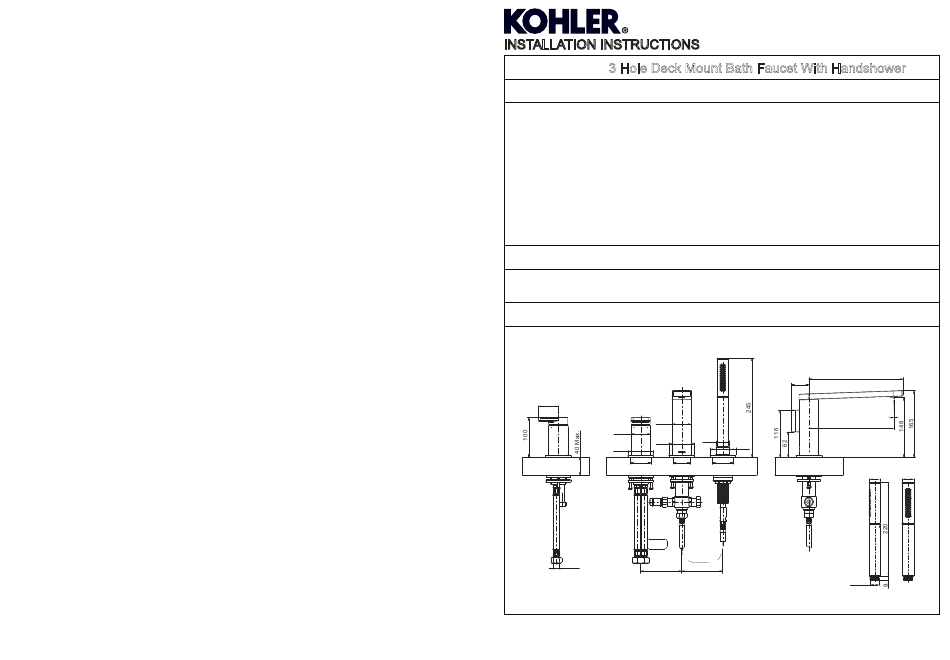

ROUGH-IN DIMENSIONS
50
Ø48
Ø48
Ø64
Ø64
Ø39-Ø42
Ø34-Ø40
G1/2˝
Min. 146
1242390-2A-C
COMPOSED
233
43
210
Ø34
Ø64
Ø30-Ø40
Min. 146
G1/2˝
2°
24
28
73078T-4
1
Advertisement
Related Manuals for Kohler 73078T-4
Summary of Contents for Kohler 73078T-4
- Page 1 3 Hole Deck Mount Bath Faucet With Handshower BEFORE YOU BEGIN All information is based on the latest product information available at the time of publication. Kohler Co. reserves the right to make changes in product characteristics, packaging, or availability at any time without notice.
- Page 2 INSTALLATION How to Install the Valve Kit Remove the nut(3), washer(2) and washer(1) from the valve kit. Note: Don’t separate the escutcheon(6) from the valve. Put the washer(5) into the bottom groove of escutcheon. Put the washer(1) into the groove of washer(2).
- Page 3 COMPOSED SERVICE PARTS Slide the o-ring(17) into the bottom groove of the 73078T-4 3 Hole Deck Mount Bath Faucet With Handshower escutcheon(16). Tighten the escutcheon with the o-ring onto the diverter kit(15), and keep it 833730 against the bath tub. Position the...
- Page 4 Many cleaners may contain chemicals, such as ammonia, chlorine, toilet cleaner etc, which could adversely affect the finish and are not recommended for cleaning. Do not use abrasive cleaners or solvents on Kohler faucets and fittings. Put the washer(33) into the nut of the hose(32).
