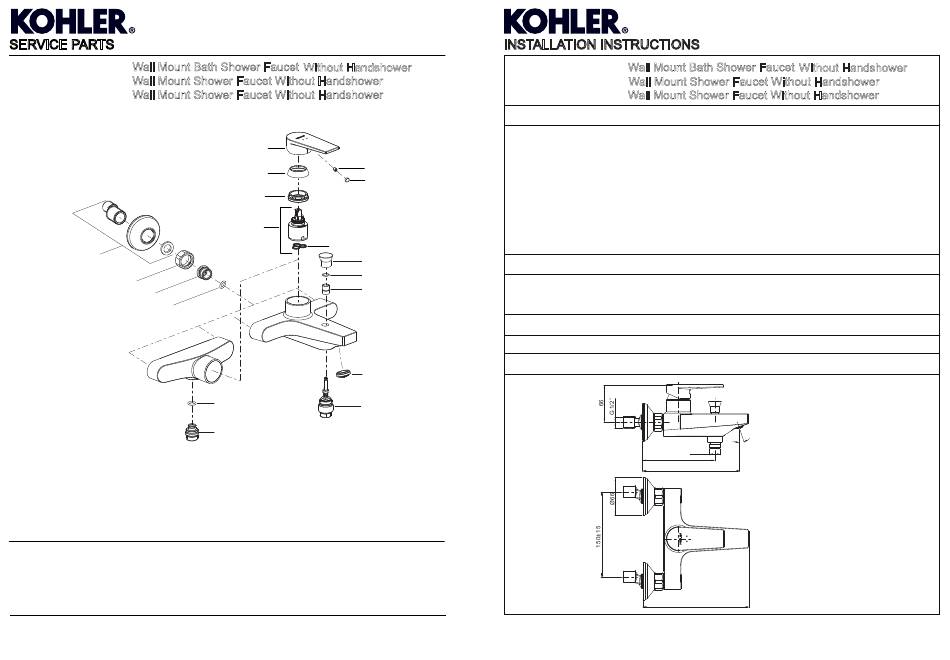

SERVICE PARTS
74036ME-4
Wall Mount Bath Shower Faucet
74035ME-4
Wall Mount Shower Faucet Without Handshower
73195ME-4
Wall Mount Shower Faucet Without Handshower
1219595**
864104**
1213567
3016381
**Color code must be specified when ordering.
NOTE: For all Asia pacific regions (excluding China) add SP (SPxxxxxxx**) in front of the part number when ordering.
ADDRESS
Kohler Middle East Trading FZE
CONTACT.MIDDLEEAST@KOHLER.COM
WWW.ME.KOHLER.COM
+97143642650
1433143-2A-A
TAUT
Without Handshower
1242786**
833438
1209778**
3008523
1209777
1292054
1292068
74036ME:1284457**
74036ME:1242725
74036ME:1223033**
74036ME:3020067
74035ME/73195ME:3016381
74036ME:1223039
74035ME/73195ME:1213561
:
INSTALLATION INSTRUCTIONS
74036ME-4
74035ME-4
73195ME-4
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. Inspect the supply tubing for damage and leakage. Replace and maintain as necessary.
3. Observe local plumbing codes.
4. The minimum inlet water pressure for the diverter is 0.05MPa(0.5bar).
5. The highest working pressure for handspray is 0.5MPa(5 bar). If it exceeds 0.5MPa(5 bar), a pressure reducer is
needed. The highest water and environment temperature is 60°C. Please keep handspray, showerhead and the
shower arm away from heater, or it may become damaged and cause injury to the user.
HANDLE OPERATION
Lift handle gently. Turn clockwise for hot water, turn counter-clockwise for cold water. Water flows out from spout
when faucet diverter is in the normal position; lift the diverter gently, turn clockwise for handspray; shut off the
faucet, turn counter-clockwise until it stops.
STANDARD APPLICABLE
Special model meets or exceeds the following at date of manufacture: TIS
ROUGH-IN DIMENSIONS
4
1433143-2A-A
Wall Mount Bath Shower Faucet
Without Handshower
Wall Mount Shower Faucet Without Handshower
Wall Mount Shower Faucet Without Handshower
74035T-4/73195T-4: Wall Mount Shower Faucet
18º
For 74035T-4, remove the handshower(10).
G1/2˝
129
Run hot and cold water through the faucet for about
172
one minute to remove any debris. Check for leaks.
Shut off the faucet. For 74035T-4, reinstall the
handshower.
189
TAUT
74036ME-4
1
