Kohler 73087T-4 Installation Instructions

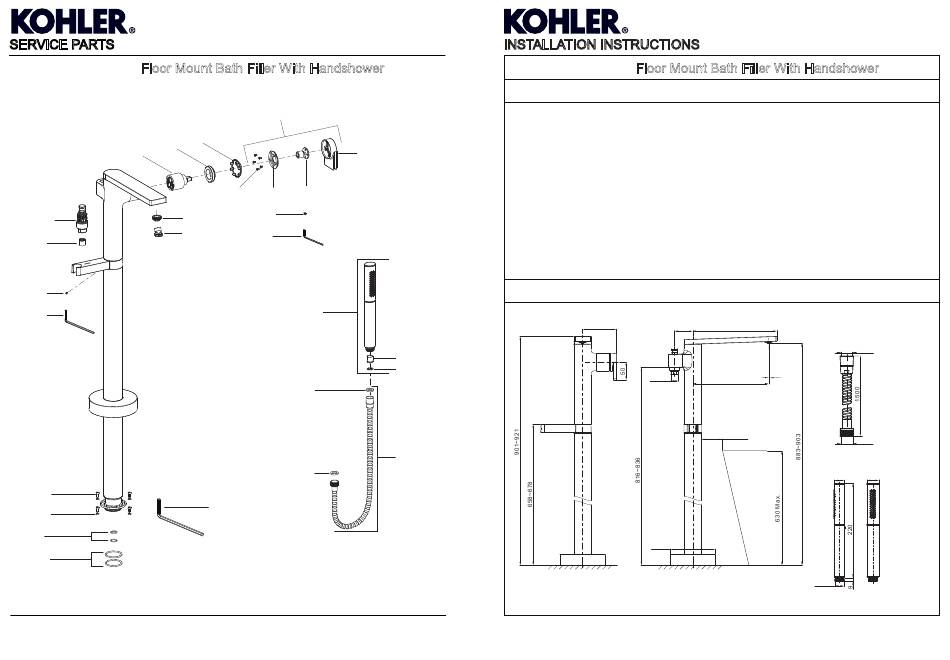

SERVICE PARTS
73087T-4 Floor Mount Bath Filler With Handshower
3023748
1229992
1258088
3023925**
3006148
831752
834404
834638
1082901
1084120
77955
1010167
**Color code must be specified when ordering.
1249328-2A-A
COMPOSED
3023796**
3022132**
3022141**
3023611 3023609** 3023751
1249005
833730
1199166**
880010
880010
835598
INSTALLATION INSTRUCTIONS
73087T-4
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. Inspect the supply tubing for damage. Replace as necessary.
3. Observe local plumbing codes.
4. The minimum inlet water pressure for the diverter is 0.05MPa(0.5bar).
5. Check for leaks before covering the pipes, repairs as needed.
6. The highest working pressure for handshpwer is 0.5MPa(5 bar). If it exceeds 0.5MPa(5 bar), a pressure
reducer is needed. The highest water and environment temperature is 60ºC. Please keep handshower and
shower arm away from heater, or it may become damaged and cause injury to the user.
7. Please purchase the matched mounting base 97905T when install the faucet.
ROUGH-IN DIMENSIONS
79680
85549
831727**
* Please purchase the appropriate bathtub according to the dimension.
4 1249328-2A-A
Floor Mount Bath Filler With Handshower
94
50 233
G1/2˝
*210
*70 Min.
Bathtub
Ø124
COMPOSED
Hose
G1/2˝
2º
G1/2˝
Handshower
24 28
G1/2"
73087T-4
1
