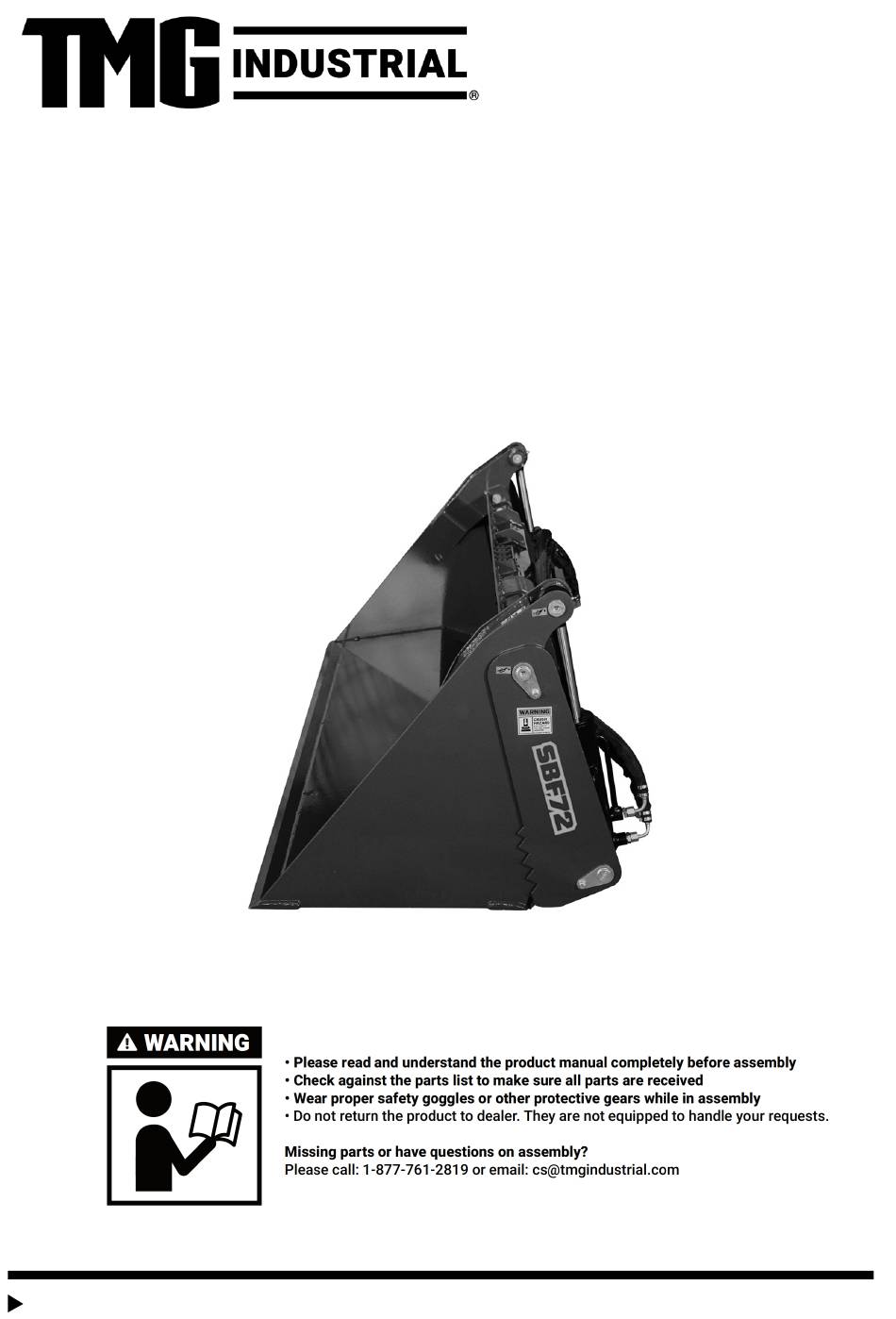

- Page 1 TMG-SBF72 PRODUCT MANUAL v.2024.06.30 72” SKID STEER 4 IN 1 BUCKET www.tmgindustrial.com TOLL FREE: 1-877-761-2819...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INFORMATION ............................3 ..................................... 3 AFETY ..................................3 ENERAL AFETY ..............................4 QUIPMENT AFETY UIDELINES ..................................5 AFETY RAINING .................................... 5 AFETY IGNS ..................................6 AFETY ECALS ..................................... 6 REPARATION ................................6 AINTENANCE AFETY ..................................7 YDRAULIC AFETY ................................... -
Page 3: Important Safety Information
Your Safety YOU are responsible for the SAFE operation and maintenance of your TMG Skid Steer 4 in 1 bucket. YOU must ensure that you and anyone else who is going to use, maintain or work around the Skid Steer 4 in 1 bucket be familiar with the using and maintenance procedures and related SAFETY information contained in this manual. -
Page 4: Equipment Safety Guidelines
- Wet weather gear - Hearing Protection 6. Install and secure all guards before starting. 7. Wear suitable ear protection for prolonged exposure to excessive noise. 8. Turn machine off, stop and disable engine, remove ignition key and place in your pocket, set park brake and wait for all moving parts to stop before servicing, adjusting, repairing, or unplugging. -
Page 5: Safety Training
10. In addition to the design and configuration of this implement, including Safety Signs and Safety Equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of personnel involved in the operation, transport, maintenance, and storage of the machine. Refer also to Safety Messages and operation instruction in each of the appropriate sections of the skid steer and machine manuals. -
Page 6: Safety Decals
Safety Decals Preparation Never use the machine until you have read and completely understand this manual, the skid steer tractor Operator's Manual and each of the Safety Messages found on the safety signs on the skid steer tractor and machine. Personal protection equipment including hard hat, safety glasses, safety shoes, and gloves are recommended during assembly, installation, operation, adjustment, maintaining, repairing, removal, cleaning, or moving the unit. -
Page 7: Hydraulic Safety
Where replacement parts are necessary for periodic maintenance and servicing, genuine factory replacement parts must be used to restore your equipment to original specifications. The manufacturer will not be responsible for injuries or damages caused by use of unapproved parts and/or accessories. A fire extinguisher and first aid kit should be kept readily accessible while performing maintenance on this equipment. -
Page 8: Operation
Many features incorporated into this machine are the result of suggestions made by customers like you. Read this manual carefully to learn how to use the chipper safely and how to set it to provide maximum field efficiency. By following the using instructions in conjunction with a good maintenance program, your Skid Steer 4 in 1 bucket will provide many years of trouble- free service. -
Page 9: Maintenance
A Crushing Hazard exists when hooking-up equipment. Do not allow anyone to stand between the skid steer or tractor and attachment while hooking-up to the attachment. Do not operate hydraulics while someone is near the skid steer/ tractor or attachment. CAUTION：... -
Page 10: Specification
The tables shown below give correct torque values for various bolts and cap screws. Tighten all bolts to the torques specified in chart unless otherwise noted. Check tightness of bolts periodically, using bolt torque chart as a guide. Replace hardware with the same strength bolt. -
Page 11: Parts List
PARTS LIST Skid Steer 4 in 1 bucket Assembly Part No. Ref. Part Description CFB72.2 Bucket CFB72.1 Hanging Plate Weldment W-06-SF-2-3025 Bush SF-2-34*30*25 CFB72.4 Stopper Plate Weldment 01 B-J07940A-6A Greaser M6 B-G057830-8*16 Bolt M8*16 CFB72.5 Stopper Plate Weldment 02 CFB72.6 Cylinder，Bucket CFB72.7 B-G00889A-8...
