Summary of Contents for TMG TMG-TBH84

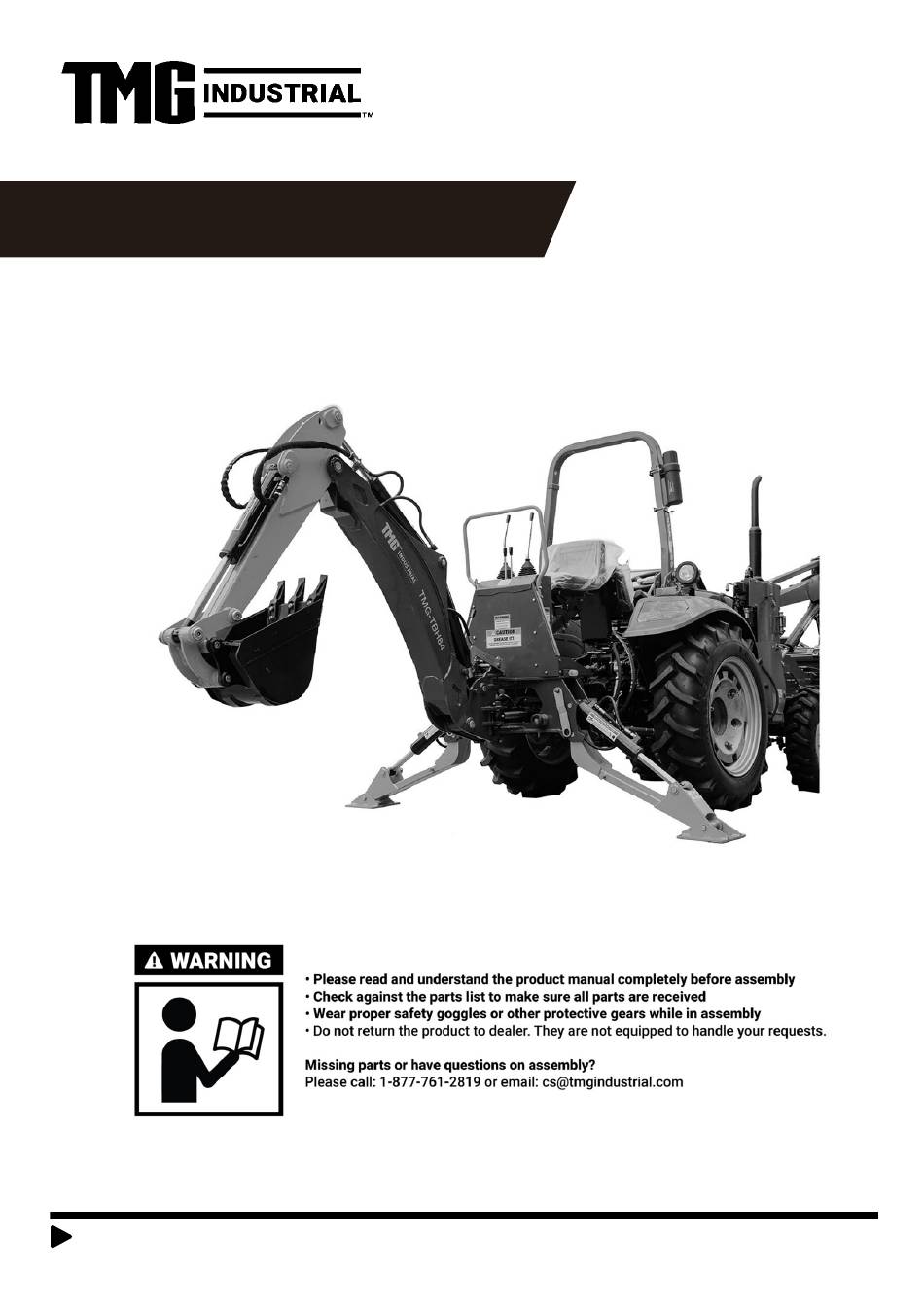

- Page 1 PRODUCT MANUAL v.2022.03.31 MODEL TMG-TBH84 3-Point Swing Backhoe Attachment WWW.TMGINDUSTRIAL.COM Toll Free:1-877-761-2819...
-
Page 2: Table Of Contents
Important Safety Information ..........2 Safety at All Times . -
Page 3: Important Safety Information
Important Safety Information Safety at All Times Careful operation is your best assurance against an accident. All operators, no matter how much experience they may have, should carefully read this manual and other related manuals, or have the manuals read to them, before operating the power machine and this implement. - Page 4 Disconnect battery ground cable (-) before servicing or adjusting electrical systems or before welding on implement. s Inspect all parts. Make certain parts are in good condition & installed properly. Replace parts on this implement with genuine TMG parts only. Do not alter this implement in a way which will adversely WWW.TMGINDUSTRIAL.COM...
- Page 5 Use Seat Belt and ROPS TMG recommends the use of a CAB or roll-over-protective-structures (ROPS) and seat belt in almost all power machines. Combination of a CAB or ROPS and seat belt will reduce the risk of serious injury or death if the power machine should be upset.
-
Page 6: Safety Labels
3. Some new equipment installed during repair requires safety labels to be affixed to the replaced component as specified by TMG. When ordering new components make sure the correct safety labels are included in the request. 4. Refer to this section for proper label placement. To install new labels: a. - Page 7 Warning: To prevent bodily injury Warning: Prevent injuries caused by instability Warning: Adjust tractor speed accordingly to maintain precision of control Warning: Crush Hazard Caution: Grease all the points before operating WWW.TMGINDUSTRIAL.COM Toll Free:1-877-761-2819 6 / 33...
- Page 8 Stabilizers controls Crowd and swing controls Boom and bucket controls Boom Lock: Swing Lock and Boom Lock When transporting or dismounting backhoe, you must lock the backhoe's swing and boom. Position boom straight back and drop pin through holes in swing frame and boom. When not in use, store pin in hole provided on swing frame and boom. BE SURE remove the lock pin before you start operating the backhoe! WWW.TMGINDUSTRIAL.COM Toll Free:1-877-761-2819...
-
Page 9: Introduction
Introduction We congratulate you on choosing this high quality hydraulic backhoe! The purpose of this instruction manual is to help you maintain and use your backhoe. Read the instruction manual carefully. It contains information and guidance that will help you achieve years of reliable service and performance. The backhoe has been designed to require only little maintenance (cleaning and lubricating). -
Page 10: Assembly And Hook-Up
Assembly and Hook-UP Backhoe Assembly Remove all loose parts or packaging from the crate, check goods without damaged and omission. Check the packing list as below, Part No. Ref. No. Parts Description BK215.01 Frame and Boom Assembly BK215.02 Dipperstick and Bucket Assembly GB/T5872-2000 Bolt-M12x115 BKN215.013... -
Page 11: Tractor Preparation
Tractor Preparation Tractor Requirements Tractor horsepower should be within the range noted below. Tractors outside the horsepower range must not be used. Hitch Category----------------3-Point Cat. I & II Power Take-Off Speed-----------------540 rpm Horsepower Requirements-----------40-100 hp Rear Counterweight Do not exceed the manufacturer’s rating for maximum gross vehicle weight. Refer to operator’s manual or ROPS serial plate provided with tractor. - Page 12 Escaping fluid under pressure can have sufficient force to penetrate the skin causing serious personal injury. Fluid escaping from a very small hole can be almost invisible. Use a piece of cardboard or wood, rather than hands to search for suspected leaks.
-
Page 13: Attaching Backhoe To Tractor Hydraulics
Do not attempt to modify the mounting in any way. Incorrect mounting or modifying of the backhoe 3-point mounting could allow the backhoe to raise up during use, resulting in injury or death. DO NOT attempt to raise the backhoe with the 3-point hitch. The backhoe center links along with the hitch lock out arms make the backhoe a solid mount that is immovable. -
Page 14: Backhoe Operation
Backhoe Operation Levers The backhoe is equipped with two hydraulic stabilizers that keep the backhoe in place and stabilize digging especially while dumping to the side. Digging is more effective with stabilizers and should be used during digging. Stabilizers extend wider than tractors rear wheels giving balance to digging. -
Page 15: Excavation
Excavation When operating the backhoe, smoothness of technique should be strived for at all times. Smoothness will come with experience and practice at feathering the controls. Establish a flowing digging cycle to increase operator efficiency and save unnecessary wear on the machine. Observe the following points to obtain the best results and to fully utilize the digging force of the backhoe. - Page 16 sides of the bucket to scrape off any high spots. Dislodge any exposed rocks if they seem loose. When finishing walls, finish the far wall by curling the bucket out, crowding the dipperstick out, and forcing the bucket down. To finish the closest wall, lift the bucket up and curl it in. Once the sides are cleaned up, finish grading the bottom of the excavation.
-
Page 17: Special Applications
Special Applications Trenching Between a Building and an Open Excavation Start the trench at the building and trench toward the open excavation. Dig toward the open excavation until there is just enough room to move the unit out from between the trench and open excavation. Position the unit so the backhoe swing is over the centerline of the trench connection. -
Page 18: Specifications
Refer to your tractor operator's manual for recommendations. Specifications Backhoe Model TMG-TBH84 Digging Depth (two foot flat bottom) 2150mm 84” Reach from center line of Swing Pivot 3200mm 126”... -
Page 19: Maintenance And Lubrication
Maintenance and Lubrication Proper servicing and adjustments are key to the long life of any implement. With careful inspection and routine maintenance, you can avoid costly downtime and repair. Check all hardware after several hours of operation and regularly thereafter to ensure they are tight and secured. Replace worn, damaged, or illegible safety labels by obtaining new labels. - Page 20 Lower the backhoe to the ground and relieve pressure in backhoe hydraulic lines prior to performing any service or maintenance operations on the tractor or backhoe. CAUTION Escaping fluid under pressure can have sufficient force to penetrate the skin , causing serious injury . Before disconnecting lines, be sure to relieve all pressure.
-
Page 21: Troubleshooting
Troubleshooting This Trouble Shooting Chart is provided for reference to possible backhoe operational problems. Determine the problem that best describes the operational problem being experienced and eliminate the possible causes as listed by following the correction procedures. PROBLEM POSSIBLE CAUSE CORRECTION Low hydraulic fluid level. - Page 22 Low hydraulic fluid level. Check and replenish hydraulic fluid Allow hydraulic system to warm up to operating Cold hydraulic fluid temperature Hydraulic Oil viscosity too heavy or Check oil number and viscosity, Refill correct Incorrect oil hydraulic oil Engine R.P.M. too slow (hydraulic Increase engine speed to obtain satisfactory pump R.P.M.
- Page 23 Allow hydraulic fluid to warm up to Cold Hydraulic Fluid operating temperature Hydraulic Oil viscosity too heavy Check oil number and viscosity, Refill or Incorrect oil correct hydraulic oil. Excessive load in bucket. Loading exceeds specified Reduce load System relief valve backhoe capacity squeals.
-
Page 24: Hydraulic System Schematic
Hydraulic System Schematic HYDRAULIC SYSTEM SCHEMATIC AUXILIARY HYDRAULIC VALVE PACKAGE Sl m { Ypno{ Z~pun Kpw w l yz{pj r Z{hi psp。 l y Z{hi psp。 l y I |j rl { I vvt J 、 spukl y J 、 spukl y J 、... -
Page 25: Appendix
Appendix TORQUE TIGHTENING CHART 1 TORQUE TIGHTENING CHART 2 WWW.TMGINDUSTRIAL.COM Toll Free:1-877-761-2819 24 / 33... -
Page 26: Parts Illustrations
Part Illustrations General Information Illustrations The individual parts in their normal relationship to each other. Reference numbers are used in the illustrations. These numbers correspond to those in the "Number" column and are followed by the quantity required and description. Directional Reference "Right hand"... - Page 27 Section B. Seat, Control Assembly Part No. Ref. No. Parts Description BK215.033 Seat GB5782-M12x115 Bolt-M12x115 GB97.1-12 Washer-Plain 12 BK215.016 Seat Plate GB97.1-8 Washer-Plain 8 GB93-8 Washer-Spring 8 GB5782-M8x20 Bolt-M8x20 GB889.1-M12 Nut Lock -M12 BK215.015 Link Assembly BL25.10.110 R-Pin, φ3.2 BK215.106 Pin,φ12 GB5782-M12x40 Bolt-M12x40...
- Page 28 Section C. Main Frame Assembly Part No. Ref. No. Parts Description GB5782-M16x60 Bolt-M16x60 GB97.1-16 Washer-Plain 16 GB889.1-M16 Nut Lock-M16 BK215.026 Cross Bar GB6172.1-M8 Nut-M8 BK215.402 U-bolt BK215.011 Main Frame Assembly BK215.128 Rubber Stop BK215.127 Pin, φ24.5x173 BK215.126 Pin, φ24.5x154 BK215.031 Stabilizer Assembly-LH BK215.029 Foot Plate...
- Page 29 Section D. Swing Frame Assembly Part No. Ref. No. Parts Description GB889.1-M10 Nut Lock-M10 GB97.1-10 Washer-Plain 10 BK215.118 Lock Plate GB5782-M10x35 Bolt-M10x35 BK215.101 Pin, φ39.5x115 GB5782-M8x70 Bolt-M8x70 GB889.1-M8 Nut Lock-M8 BK215.120 Pin, φ24.5x117 GB5782-M8x55 Bolt-M8x55 BK215.012 Swing Frame Assembly BK215.112 Pin, φ29.5x161 GB5782-M8x60 Bolt-M8x60...
- Page 30 Section E. Boom Assembly Part No. Ref. No. Parts Description E101 GB5782-M8x70 Bolt-M8x70 E102 BK215.115 Pin, φ39.5x193 E103 GB889.1-M8 Nut Lock-M8 E104 GB5782-M8x60 Bolt-M8x60 E105 BK215.113 Pin, φ29.5x180 E106 BK215.017 Boom Assembly E107 BK215.116 Bushing, φ40 WWW.TMGINDUSTRIAL.COM Toll Free:1-877-761-2819 29 / 33...
- Page 31 Section F. Bucket, Dipperstick Assembly Part No. Ref. No. Parts Description F114 GB5782-M8x60 Bolt-M8x60 F115 BK215.112 Pin, φ29.5x161 F116 GB889.1-M8 Nut Lock-M8 F117 BK215.116 Bushing, φ40 F118 BK215.021 Dipperstick Assembly F119 BK215.019 Link-LH F120 BK215.111 Bushing, φ30 F121 BK215.018 Link-RH F122 BK215.110 Pin, φ29.5x198...
- Page 32 Section G. Hose Fitting Assembly 注：A5, A6, B5, B6使用 小孔接头M 14( 锥）- G3/8。 WWW.TMGINDUSTRIAL.COM Toll Free:1-877-761-2819 31 / 33...
- Page 33 Part No. Ref. No. Parts Description G145 JB/T982-14 Combination Washer 14 G146 BK215.044 Stabilizer Cylinder-LH G147 BK215.045 Swing Cylinder G148 BK215.416 Hose, Swing To Swing G149 BK215.043 Stabilizer Cylinder-RH G150 BK215.406 Long Adapter, M14Z-M14Z G151 BK215.041 Boom Cylinder G152 GB5782-M8x100 Bolt- M8x100 G153 GB97.1-8...
- Page 34 Section H. Hydraulic System Assembly Part No. Ref. No. Parts Description BK215.410 Hose, Valve To In Out BK215.411 Hose，Valve To Boom BK215.412 Hose，Valve To Adapter BK215.413 Hose，Adapter To Bucket BK215.414 Hose，Valve To Stabilizer BK215.415 Hose, Valve To Swing BK215.416 Hose, Swing To Swing BK215.417 Hose, Valve To Dipperstick WWW.TMGINDUSTRIAL.COM...
