Summary of Contents for TMG TMG-TBH72

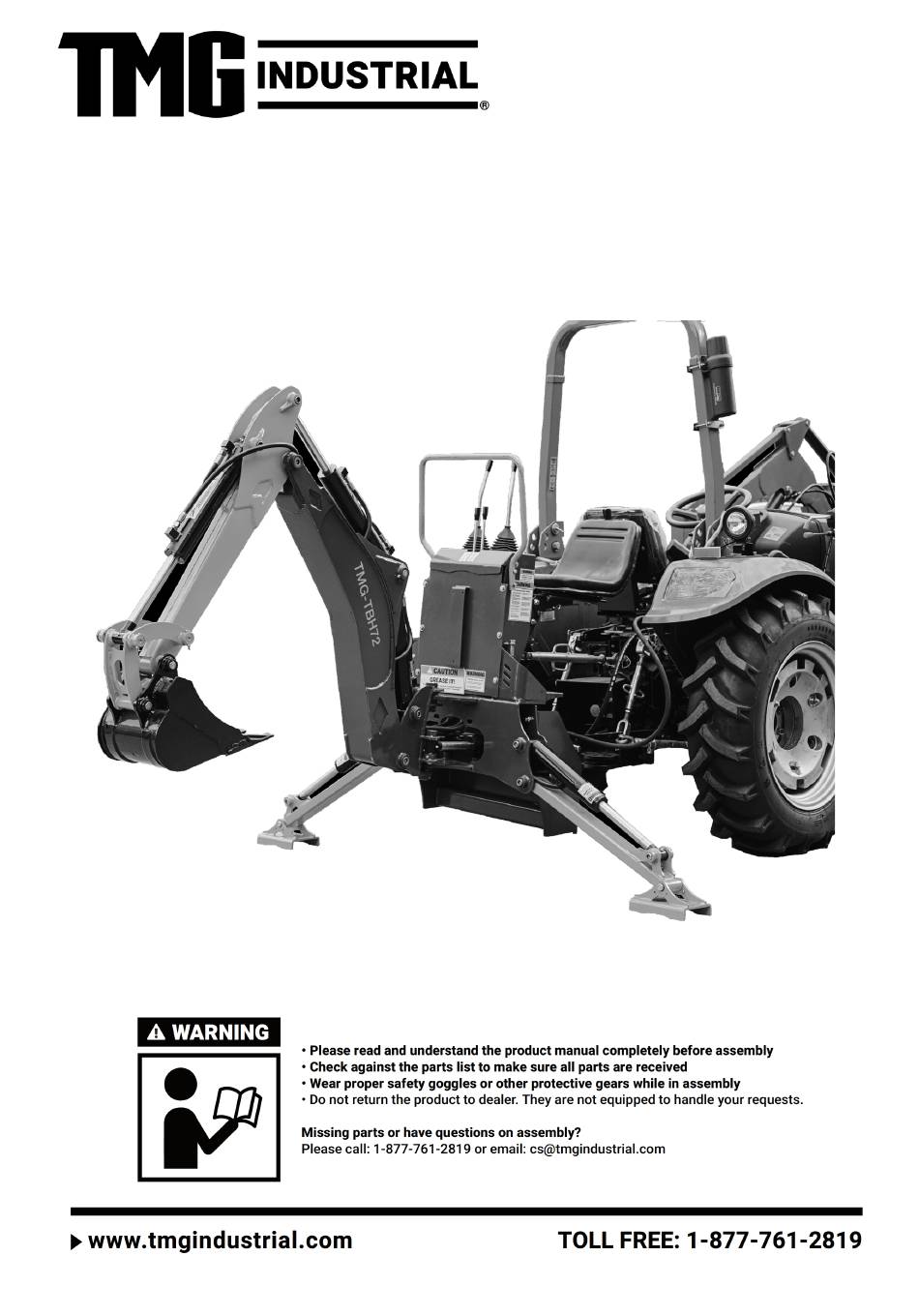

- Page 1 TMG-TBH72 PRODUCT MANUAL tttttTFM6 v.2023.01.17 0/TFM68/T FM72TFM60 TRACTOR BACKHOE /TFM68/TF...
-
Page 2: Table Of Contents
Warranty ................................... 21 Bolt Torque ................................21 PART BREAKDOWN LIST ......................23 TMG-TBH72 SEAT，CONTROL ASSEMBLY (A) ....................... 23 TMG-TBH72 LEG SUPPORT ASSEMBLY (B) ......................25 TMG-TBH72 BUCET,DIPPERSTICK ASSEMBLY (C) ....................26 TMG-TBH72 HOSE FITTING ASSEMBLY (D) ......................27 www.tmgindustrial.com 2 / 28... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION Safety always Thoroughly read and understand the instructions given in this manual before operation. Refer to the “Safety Decal”, read all instructions noted on them. Do not allow anyone to operate this equipment who has not fully read and comprehended this manual and who has not been properly trained in the safe operation of the equipment. -
Page 4: Transport Machinery Safely
Transport machinery safely Comply with state and local laws. Maximum transport speed for implement is 20 mph. Do not exceed. Never travel at a speed which does not allow adequate control of steering and stopping. Some rough terrain require a slower speed. Sudden braking can cause a towed load to swerve and upset. - Page 5 Replace all damaged or missing labels. To order new labels go to your nearest TMG dealer or visit our dealer locator at TMG.com. Some new equipment installed during repair requires safety labels to be affixed to the replaced component as specified by TMG.
-
Page 6: Introduction
INTRODUCTION TMG welcomes you to the growing family of new product owners. This implement has been designed with care and built by skilled workers using quality materials. Proper assembly, maintenance, and safe operating practices will help you get years of satisfactory use from the machine. -
Page 7: Section 1: Assembly And Set-Up
SECTION 1: ASSEMBLY AND SET-UP Tractor Requirements The purpose of this manual is to assist in setting up, operating, and maintaining your backhoe. Read it carefully. It furnishes information and instructions that will help you achieve years of dependable performance. The illustrations and data used in the manual were current (according to the information available to us) at the time of printing, however, we reserve the right to redesign and change the backhoes as may be necessary without notification. -
Page 8: Mounting Instructions
CAUTION The tractor/backhoe must only be operated with all safety equipment properly installed. Tire Pressure Tractor tires should be maintained at maximum recommended inflation to maintain normal tire profile with added weight of backhoe/material. Unequal rear tire inflation can result in bucket not level to the ground. Backhoe mounting The following instructions will help you mount the backhoe to the tractor 3-point hitch. -
Page 9: Seat Adjustment
WARNING Until the backhoe is securely mounted onto the tractor, keep all people clear of your work area and make sure that no portion of the operator's body is beneath any part of the backhoe. 11. Raise the backhoe using the stabilizer and boom control levers until the swing is approximately 20 cm above ground level. Make sure the backhoe is vertical (perpendicular to the ground). -
Page 10: Section 2: Operating Instructions
models of tractors have standard category hitches and backhoes have standard category attaching points, it is possible to mount tractor/backhoe combinations that are not compatible. Dealers and/or owners must determine that compatibility between the tractor and backhoe exists. Compatibility includes but is not limited to items such as operator clearance, hitch component strength, tractor case strength and hydraulics. - Page 11 Starting operation When operating the backhoe, smoothness of technique should be strived for at all times. Smoothness will come with experience and practice at feathering the controls. Establish a flowing digging cycle to increase operator efficiency and save unnecessary wear on the machine.
- Page 12 swing the unit back to the excavation, positioning the bucket and dipperstick for the next cut in the process. The whole digging process should be one smooth cycle that is repeated unt 仆 the excavation is completed. When the excavation has been dug to within 15 cm of the finished bottom, clear and touch up the sides of the excavation.
-
Page 13: Special Applications
When digging a pipe leak, always dig along the line of pipe and never across it. Excavate around the leak to give ample room for the repair to be made. When trenching on a slope, always start at the top and work down. When working across a slope make full use of the stabilizers on the backhoe to level the machine. -
Page 14: Detaching Backhoe
under stabilizers could collapse. Make all movements slowly and gradually when practicing operation. Operate from backhoe operators' seat only. Pay attention; be ready to stop immediately in case of an emergency. To help prevent roll-over, adjust the rear wheels to their widest setting to maximize stability. Refer to your tractor operator's manual for recommendations. Detaching backhoe Move backhoe to a flat, firm and wide enough place to remove the equipment. -
Page 15: Maintenance Chart
grease nipple is missing replace it immediately. Clean all joints before using grease gun. Avoid excessive greasing. Dirt collects on exposed grease and greatly increases wear. After greasing, wipe off excessive grease from fittings. When servicing your backhoe, remember to use only manufacturer replacement parts. Substitute parts may not meet the standards required for safe, dependable operation. -
Page 16: Lubrication
Do not perform service or maintenance operations with backhoe raised off the ground. For additional access to tractor components; remove backhoe. Escaping fluid under pressure can have sufficient force to penetrate the skin, causing serious injury. Before disconnecting lines, be sure to relieve all pressure. -
Page 17: Section 4: Specifications & Capacities
SECTION 4: SPECIFICATIONS & CAPACITIES www.tmgindustrial.com 17 / 28 TOLL FREE: 1-877-761-2819... -
Page 18: Section 5: Troubleshooting
Digging depth (60 cm flat bottom) 2200 mm Reach from the center line of swing pivot 3200 mm Loading height (bucket 60°) 1850 mm Maximum levelling angle 10° Swing arc 180° Transporting height (Max.) 2120 mm Transport overhang 1230 mm Bucket rotation 180°... - Page 19 Slow oil supply Fill oil tank to measure Check for twisted or clamped hydraulic Restriction in hydraulic hose hoses. Restriction in the inlet hose Check for damaged hose Low hydraulic fluid level. Check and replenish hydraulic fluid. Check and correct hydraulic hose Hydraulic hoses connected improperly connections Hydraulic hoses to/from control valve blocked...
- Page 20 Check and reset relief valve. Setting as Relief valve erratic or set below specifications needed. Control valve leaking internally.(bypassing fluid Replace control valve and recheck operation. within valve). Engine R.P.M. too slow. Increase engine R.P.M Excessive load. Material loading exceeds Reduce load specified backhoe capacity Check and reset relief valve setting as...
-
Page 21: Section 6: Appendix
This warranty does not apply to any part or product which in TMG’s judgment shall have been misused or damaged by accident or lack of normal maintenance or care, or which has been repaired or altered in a way which adversely affects its performance or reliability, or which has been used for a purpose for which the product not designed. - Page 22 ENGLISH TORQUE SPECIFICATIONS Bolt Torque Bolt Diameter SAE 2 SAE 5 SAE 8 lb-ft lb-ft lb-ft 1/4” 5/16” 3/8” 7/16” 1/2” 9/16” 5/8” 3/4” 7/8” METRIC TORQUE SPECIFICATIONS Bolt Torque Bolt Diameter 10.9 lb-ft lb-ft 1050 1495 1103 2100 1550 2600 1917 3675...
-
Page 23: Part Breakdown List
PART BREAKDOWN LIST TMG-TBH72 SEAT ， CONTROL ASSEMBLY (A) www.tmgindustrial.com 23 / 28 TOLL FREE: 1-877-761-2819... - Page 24 TMG-TBH72 SEAT，CONTROL ASSEMBLY BREAKDOWN LIST(A) PART NO. REF. NO. PART DESCRIPTION QTY. BK215.033 Seat GB/T5782-2000 Bolt-M8x20 GB/T93-2002 Spring Washer 8 GB/T97.1-2002 Plain Washer 8 BK175.1000.900 Seat Plate Weldment BK175.1000.006 Pin- Seat Adjust GB/T5782-2000 Bolt-M12x110 GB/T889.1-2000 Nut Lock -M12 BK175.1000.1500 Seat Frame Weldment BK175.1000.800...
-
Page 25: Tmg-Tbh72 Leg Support Assembly (B)
TMG-TBH72 LEG SUPPORT ASSEMBLY (B) TMG-TBH72 LEG SUPPORT ASSEMBLY BREAKDOWN LIST(B) PART NO. REF. NO. PART DESCRIPTION QTY. BK175.1000.001 Copper Sleeve(28x25) GB/T5782-2000 Bolt-M12x50 GB/T97.1-2002 Plain Washer 12 GB/T889.1-2000 Nut Lock-M12 BK175.1000.700 Swing Cylinder Base BK175.1000.013 Pin-Swing Cylinder GB/T5782-2000 Bolt-M6x50 BK175.1000.002 Pin-Leg Support 1 BK175.1000.500... -
Page 26: Tmg-Tbh72 Bucet,Dipperstick Assembly (C)
TMG-TBH72 BUCET,DIPPERSTICK ASSEMBLY (C) www.tmgindustrial.com 26 / 28 TOLL FREE: 1-877-761-2819... -
Page 27: Tmg-Tbh72 Hose Fitting Assembly (D)
TMG-TBH72 BUCKET, DIPPERSTICK ASSEMBLY BREAKDOWN LIST(C) PART NO. REF. NO. PART DESCRIPTION QTY. BK175.1000.010 Pin-Dippperstick 1 BK175.1000.009 Pin-Dippperstick 2 BK175.1000.015 Copper Sleeve(36x32) BK175.1000.1300 Inner Link Weldment BK175.1000.1100 Bucket Weldment BK175.1000.011 Pin-Bucket 2 GB/T889.1-2000 Nut Lock -M12 BK6N.01.105 Bucket Teeth GB/T5782-2000 Bolt-M12x45 BK175.1000.1200... - Page 28 TMG-TBH72 HOSE FITTING ASSEMBLY BREAKDOWN LIST(D) PART NO. REF. NO. PART DESCRIPTION QTY. JB/T7271.1-2000 Plastic Ball-M10x32 GB/T6172.1-2000 Nut-M10 BK215.040 Hand Lever HC-TR55/6 Control Valve JB/T7271.5-2000 Plastic Ball-M10x50 BK215.401 Lever stick GB/T6172.1-2000 Nut-M8 GB/T8606-2000 Quick Coupler-G1/2-M BL25.40.102 Adapter, M18-R1/2 GB/T3452.1-2000 O-Ring, 13x2.4 BK175.2000.100...
