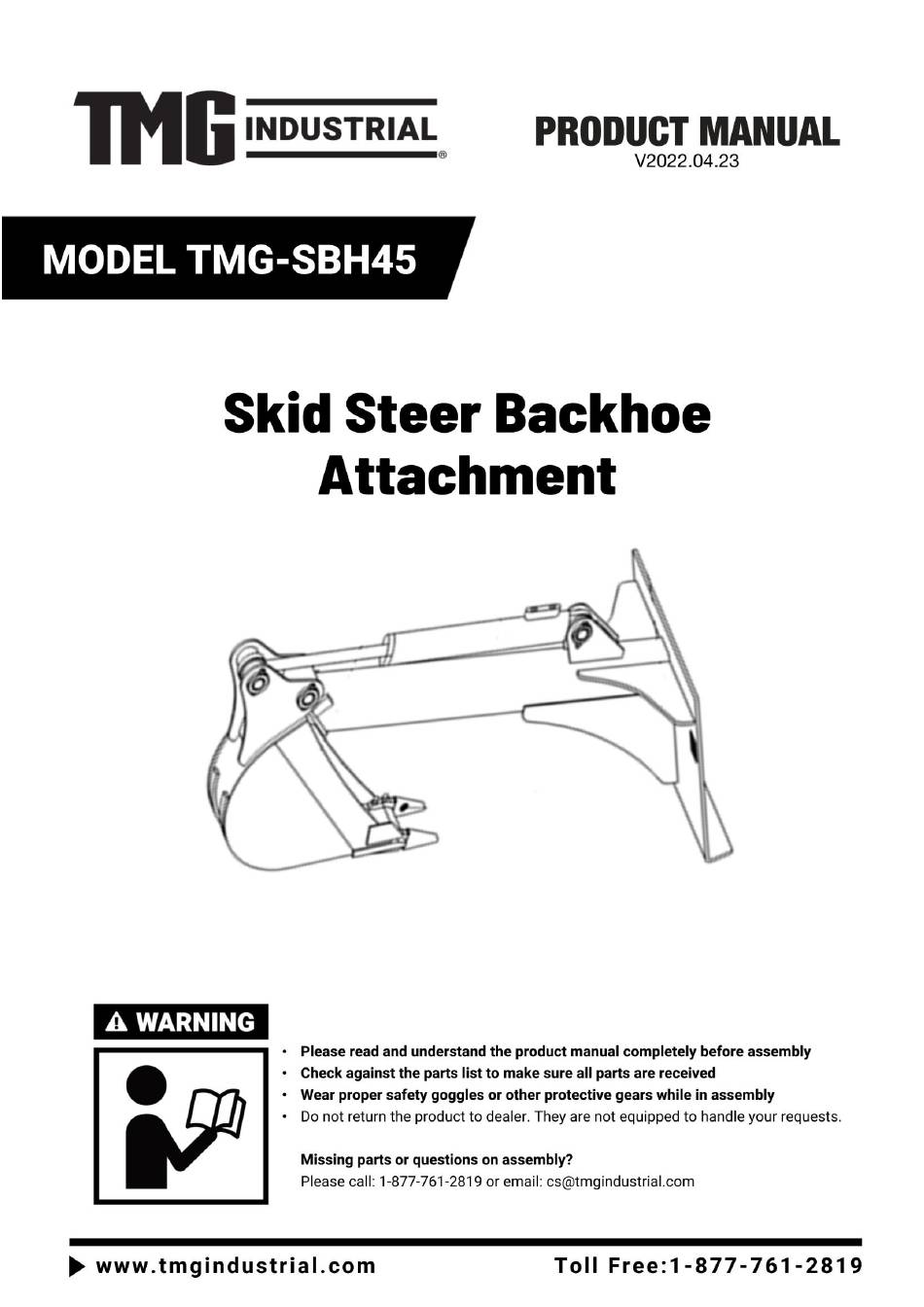

Summary of Contents for TMG TMG-SBH45
-
Page 2: Table Of Contents
TABLE OF CONTENTS TO THE OWNER..........................2/12 SAFETY PRECAUTIONS.........................3/12 SKID STEER BACKHOE ATTACHMENT ASSEMBLY................7/12 OPERATION INSTRUCTIONS......................9/12 MAINTENANCE INSTRUCTIONS....................10/12 STORAGE INSTRUCTIONS......................11/12 SPECIFICATIONS........................12/12 ► www.tmgindustrial.com P1 / 12 Toll Free: 1-877-761-2819... -
Page 3: To The Owner
TO THE OWNER GENERAL COMMENTS Congratulations for having this skid steer backhoe attachment! Your skid steer backhoe attachment was carefully designed and manufactured to give you years of dependable service. It will require some minor maintenance(such as cleaning and lubricating) to keep it in top working condition. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS BEFORE OPERATION 1.The operator must read the operation manual carefully before installation, operation or maintenance. Improper operation will cause the machine damage or harm to the operator. 2.Read all the safe signs and safe declarations. Follow all the safey rules, local laws or the professional directions. - Page 5 SAFETY PRECAUTIONS These are common practices that may or may not be applicable to the products described in this manual. ► www.tmgindustrial.com P4 / 12 Toll Free: 1-877-761-2819...
- Page 6 SAFETY PRECAUTIONS ► www.tmgindustrial.com P5 / 12 Toll Free: 1-877-761-2819...
- Page 7 SAFETY PRECAUTIONS ► www.tmgindustrial.com P6 / 12 Toll Free: 1-877-761-2819...
-
Page 8: Skid Steer Backhoe Attachment Assembly
SKID STEER BACKHOE ATTACHMENT ASSEMBLY ► www.tmgindustrial.com P7 / 12 Toll Free: 1-877-761-2819... - Page 9 SKID STEER BACKHOE ATTACHMENT ASSEMBLY PART NO. S/N. NUMBER PART DESCRIPTION QTYS NOTE 030803.01 030803-01 Pin A GB/T 5783-2000 Bolt M8X70 GB/T 6170-2000 GB/T 93-1987 Spring Washer GB/T97.1-1985 Flat Washer 030803-04 Gasket IE10LM18*1.5 End Straight Joint Length:2.2m,fitting F381CACF101005-2200SG Hydraulic Hose size:G1/2 030803.02 Cylinder...
-
Page 10: Operation Instructions
OPERATION INSTRUCTIONS The backhoe attachment can dig the tunnels, trenches or other objects with Max. 1500mm depth. (1)If hard objects are encountered when digging, please stop the operation to avoid damaging the hydraulic cylinder. (2)With the skid steer in idle, attach the backhoe attachment to the toolbar or quick attach mechanism of your skid steer . -
Page 11: Maintenance Instructions
MAINTENANCE INSTRUCTIONS 1. Always use clean hydraulic oil, keep the hose joints clean, if the hydraulic oil is mixed with dirt, it will possibly cause the system to operate abnormally. 2. Daily check all hydraulic lines, make sure the connection of the hydraulic lines are good, without distortion, wear, cracking, no loose joints to leak. -
Page 12: Storage Instructions
STORAGE INSTRUCTIONS 1. Clean all the debris, all mud, dirt and grease. 2. Inspect the unit for bent, loose, cracked, damaged or missing parts, order any parts required, make the necessary repairs to avoid delays when starting next season. 3. Tighten all loose nuts, bolts, screws and hydraulic connections. 4. -
Page 13: Specifications
SPECIFICATIONS MODEL TMG-SBH45 TOTAL WIDTH (MM) 1200 TOTAL LENGTH(MM) 1810 TOTAL HEIGHT (MM) WORKING WIDTH (MM) DIGGING DEPTH(MM) 1500 BUCKET ROTATION ANGLE(°) WEIGHT (KG) CAPACITY(m3) 0.03 MAX. PRESSURE (MPA) 12-21 ► www.tmgindustrial.com P12 / 12 Toll Free: 1-877-761-2819...
