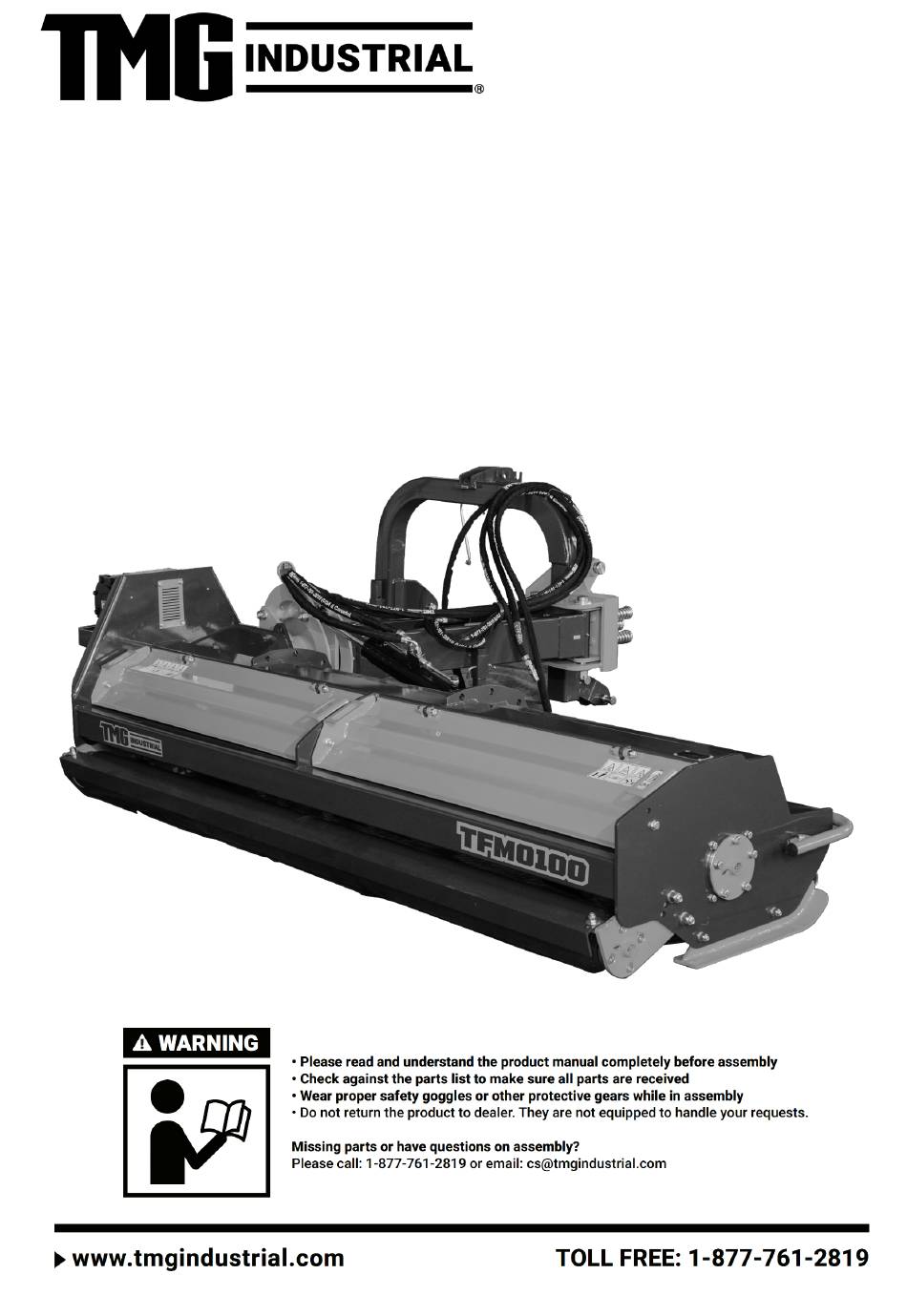

- Page 1 TMG-TFMO100 PRODUCT MANUAL tttttTFM60/T v.2024.07.10 FM68/TFM72TF VERGE FLAIL MOWER M60/TFM68/TF CMR GEARBOX, HAMMER,PTO SHAFT...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INFORMATION ........................3 Safety always ..................................3 Transport machinery safely ............................... 4 Safety Labels ..................................4 INTRODUCTION ................................5 Using This Manual ................................5 Terminology ..................................5 Owner Assistance ................................5 SECTION 1: ASSEMBLY AND SET-UP ........................6 Tractor Requirements ................................ 6 Packing Description ................................ -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION Safety always Thoroughly read and understand the instructions given in this manual before operation. Refer to the “Safety Decal”, read all instructions noted on them. Do not allow anyone to operate this equipment who has not fully read and comprehended this manual and who has not been properly trained in the safe operation of the equipment. -
Page 4: Transport Machinery Safely
Your Flail Mower comes equipped with all safety labels in place. They were designed to help you safely operate your implement. Read and follow their directions. Keep all safety labels clean and legible. Replace all damaged or missing labels. To order new labels go to your nearest TMG dealer or visit our dealer locator at TMG.com. www.tmgindustrial.com... -
Page 5: Introduction
INTRODUCTION TMG welcomes you to the growing family of new product owners. This implement has been designed with care and built by skilled workers using quality materials. Proper assembly, maintenance, and safe operating practices will help you get years of satisfactory use from the machine. -
Page 6: Section 1: Assembly And Set-Up
SECTION 1: ASSEMBLY AND SET-UP Tractor Requirements This mower is designed with a 3-Point category 2 hitch. Tractor horsepower rating should between 80-120 horsepower. Packing Description Remove and check Remove the packing, check goods without defect and omission. Figure 1-1: The Mower and Accessory in Package Packing List The detailed packing list of the mower and accessory as the following table. - Page 7 The detailed description of main body of the mower and fittings Figure 1-2: Main Body of The Mower and Fittings Item Description Qty. Main body of the mower Swing arm pin – longer Locknut M30x2 The detailed description of swing arms sub-assembly and fittings Figure 1-3: Swing Arms Sub-Assembly and Fittings Item Description...
- Page 8 The detailed description of hitch tube weldment and fittings Figure 1-4: Hitch Tube Weldment and Fittings Item Description Qty. Hitch tube weldment Hitch pin - Lower Safety lock pin Small hanging weldment PTO shaft hook Hitch pin - Upper The detailed description of Support Leg Assembly Figure 1-5: Support Leg Assembly Item Description...
-
Page 9: Installation Wizard
Installation Wizard The installation wizard will guide you to finish the final assembly of your new mower easily. Tool Required Air impact wrench with 46mm sleeve T type socket wrench 13mm T type socket wrench 18mm Torque Application Refer to bolt torque in Section 7 Appendix. Assembly Step1: Installing Swing Arms Sub-Assembly Remove the packaging of swing arms sub-assembly and fittings. - Page 10 Step2: Installing Hitch Tube Weldment and Fittings Remove the packaging of hitch tube weldment and fittings. Fix hitch tube weldment to swing arms sub-assembly with 1pcs of swing arm pin-shorter, 1pcs of locknut M30x2. Tighten locknuts completely. Figure 1-7: Installing Hitch Tube Weldment and Fittings www.tmgindustrial.com 10 / 23 TOLL FREE: 1-877-761-2819...
- Page 11 Step3: Installing Raker Sub-Assembly Remove the packaging of raker sub-assembly. Insert raker weldment-longer into the tube on swing arm weldment-L as well as raker pin and insert R pin into the hole on raker pin. Insert raker weldment-shorter into the tube on hitch tube weldment as well as raker pin and insert R pin into the hole on raker pin.
-
Page 12: Tractor Hook-Up
Tractor Hook-Up Be certain that tractor draw bar will not interfere. Move draw bar ahead or remove if required. Draw bar should also be checked for clearance when unit is being raised for the first time. Align lower link arms of tractor to hitch clevises on mower. Insert lower hitch pins into lower ball swivels and attach link pins. -
Page 13: Section 2: Operating Instructions
SECTION 2: OPERATING INSTRUCTIONS Must add oil before first use. THE GEARBOX AND TRANSMISSION ARE SHIPPED WITHOUT OIL. ADD OIL BEFORE FIRST USE! Gear Oil SAE90 700ml Transporting NOTE: Always disengage PTO before raising mower to transport position. When raising the mower to transport position, be sure that driveline does not contact tractor or mower. Adjust and set the tractor’s 3-point hitch lift height so that the driveline does not contact mower deck in the fully raised position. -
Page 14: Section 3: Adjustments
SECTION 3: ADJUSTMENTS Leveling the Mower NOTE: Tractor and mower should be on level ground. Leveling can be adjusted at the tractor’s 3-point arms and center link. Cutting Height Adjustment The machines cutting height depends upon the position of the rear roller. Remove the bolts that fix the roller on both sides. -
Page 15: Section 4: Maintenance And Lubrication
SECTION 4: MAINTENANCE AND LUBRICATION Maintenance Proper servicing and adjustment is the key to the long life of any farm implement. With careful and systematic inspection, you can avoid costly maintenance, time and repair. CAUTION For safety reasons, each maintenance operation must be performed with tractor PTO disengaged, mower lowered completely to ground and tractor engine shut off with ignition key removed. -
Page 16: Section 5: Specifications & Capacities
Add oil until it flows from side plug hole. Do not overfill! IMPORTANT: Mower should be level when checking oil in gearbox! SECTION 5: SPECIFICATIONS & CAPACITIES MODEL TMG-TFM100 Net Weight 950kg Working Width 2500mm 1200g Hammer... -
Page 17: Section 6: Troubleshooting
This warranty does not apply to any part or product which in TMG’s judgment shall have been misused or damaged by accident or lack of normal maintenance or care, or which has been repaired or altered in a way which adversely affects its performance or reliability, or which has been used for a purpose for which the product not designed. -
Page 18: Bolt Torque
Claims under this warranty must be made to the dealer which originally sold the product and all warranty adjustments must be made through such dealer. TMG reserves the right to make changes in materials or design of the product at any time without notices. -
Page 19: Part Breakdown List
PART BREAKDOWN LIST TMG-TFMO100 Part Breakdown www.tmgindustrial.com 19 / 23 TOLL FREE: 1-877-761-2819... - Page 20 www.tmgindustrial.com 20 / 23 TOLL FREE: 1-877-761-2819...
- Page 21 TMG-TFMO100 Part List Part No. Ref. No. Part Description Qty. GB/T 70.3 Bolt M12*30 VBM220.48 Roller Mounting Plate -Right GB/T 5783 Bolt M16 * 50 EFGC175.25A Reverse Installation Of Bearing Ucu207 VBM250.44 Roller Welded Parts VBM250BL.43 Clean Shoe GB/T 889.1 Nut M12 GB/T 96.1...
- Page 22 VBM220.15 Positioning Pin 01 VBM220.16 Positioning Pin 02 200.56.011 Lock Pin Welded Parts GB/T 5783 Bolt M12 * 45 B-J07940A-10*1A Grease M10 GB/T 93 Washers 12 VBM220.33 Blind Cover Weldment GB/T 893.1 Elastic Retaining Ring 80 GB 13871-94 Oil Seal 55x80x8 GB/T 894.1 Retaining Ring 40 GB/T 281-94...
- Page 23 GB/T 97.1 Flat Washer 30 B-G00889B-30*2 Nut M30 * 2 GB/T 889.1 Nut M24 GB/T 97.1 Flat Pad 24 GB/T5782 Bolt M24*110 VBM220.10 Pin Shaft 01 GB/T 96 Washers 30 GB/T 9459 Nut M30 * 2 GB/T 91 Split Pin 8 * 80 VBM220.11 Pin Shaft 01 Gasket W-08-F40...
