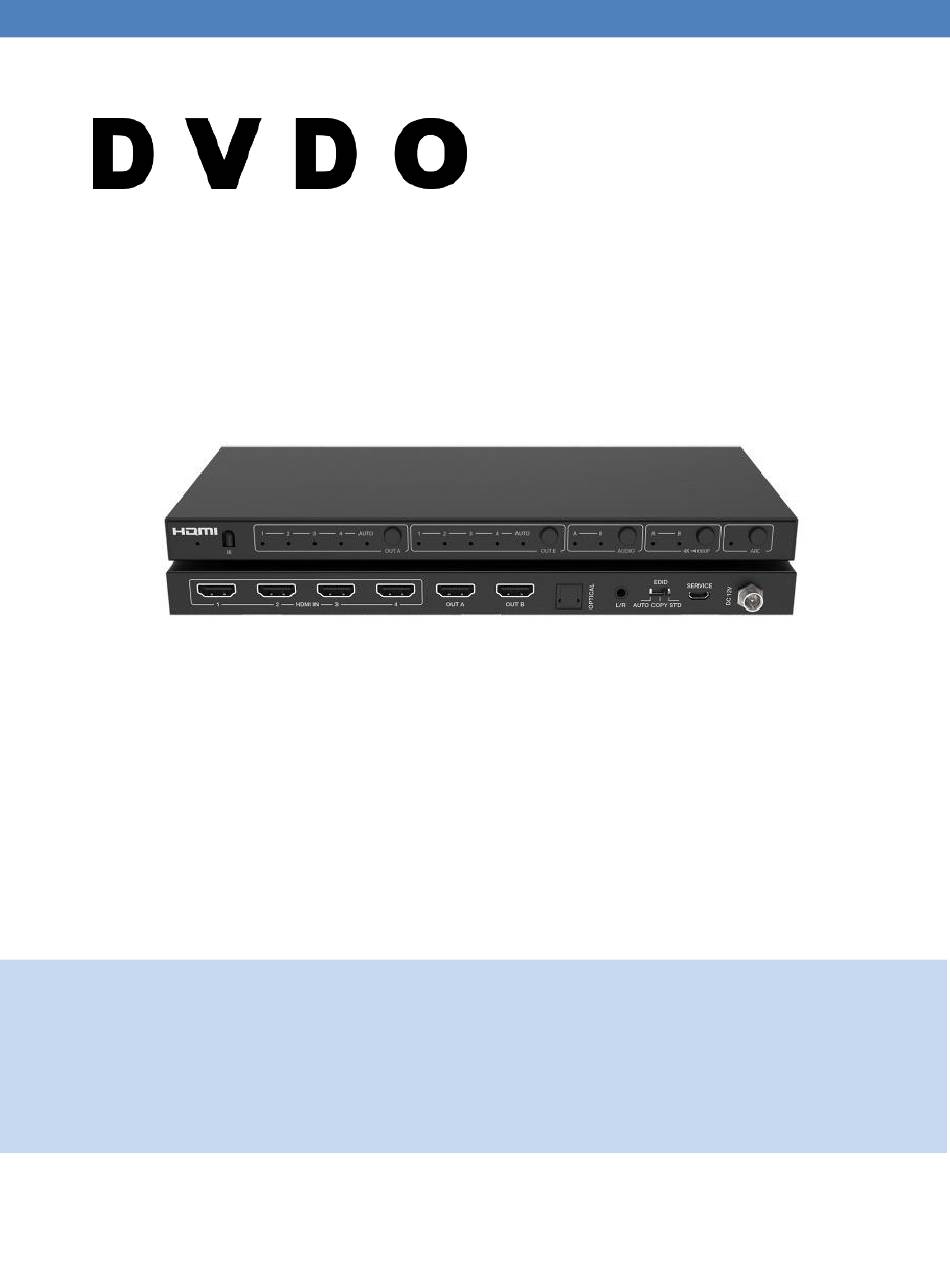

- Page 1 DVDO-Matrix-42b 4K 4x2 HDMI Matrix Switcher with Audio Outputs, HDR & ARC User Manual Version v1.0 DVDO │ +1.408.213.6680 │ support@dvdo.com │ www.dvdo.com...
-
Page 2: Table Of Contents
Thank you for purchasing DVDO-Matrix-42b For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction DVDO-Matrix-42b is a high performance HDMI matrix switcher that can route up to four HDMI sources to two HDMI displays. It supports resolutions up to 4K2K@60Hz YCbCr 4:4:4 and HDCP 2.2. It can extract HDMI source device audio to optical and analog L/R output. It supports 4K→1080p downscale function if source is 4K but TV only supports up to 1080p. -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18 Gbps Up to 4K2K@50/60Hz(YCbCr 4:4:4),4K2K@30Hz.All HDMI Video Resolution 3D TV format, etc. Color Space RGB, YCbCr4:4:4,YCbCr4:2:2, YCbCr 4:2:0 8-bit, 10-bit, 12-bit [1080p, 4K30Hz, 4K60Hz (YCbCr 4:2:0)] Color Depth 8-bit [4K60Hz (YCbCr4:4:4)] PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD,... -
Page 5: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Front Panel Number Name Function description The blue LED will illuminate when the product is connected Power LED power supply. IR receiver window. It only receives IR remote signal from this product. OUT A button Press the OUT A button to select an input source to OUT and LED A output, the corresponding blue LED will illuminate. -
Page 6: Rear Panel
Number Name Function description Press the button to select OUT A or OUT B 4k→1080p downscale function, the corresponding blue LED will 4k→1080p illuminate. For example, if source is 4K but TV only button supports 1080p, at this time the input resolution with 4K will downscale to 1080p to TV output. -
Page 7: Ir Remote
6. IR Remote Power on the product or set it to standby mode. Output A (Output B) Select input source signal to Out A port output, 1/2/3/4 the corresponding blue LED on the front panel will illuminate. Select the last or next input source signal to OUT A port output, the corresponding blue LED on the front panel will illuminate. -
Page 8: Application Example
7. Application Example 8. FAQ 1. Q: Does this product require an HDMI line length for the connection interface? A: According to HDMI line length test, HDMI input / output with 4K60Hz YCbCr 4:4:4 is the longest line length up to 8m / 3m. The use of “Premium High Speed HDMI”... - Page 9 Follow us DVDO │ +1.408.213.6680 │ support@dvdo.com │ www.dvdo.com...
