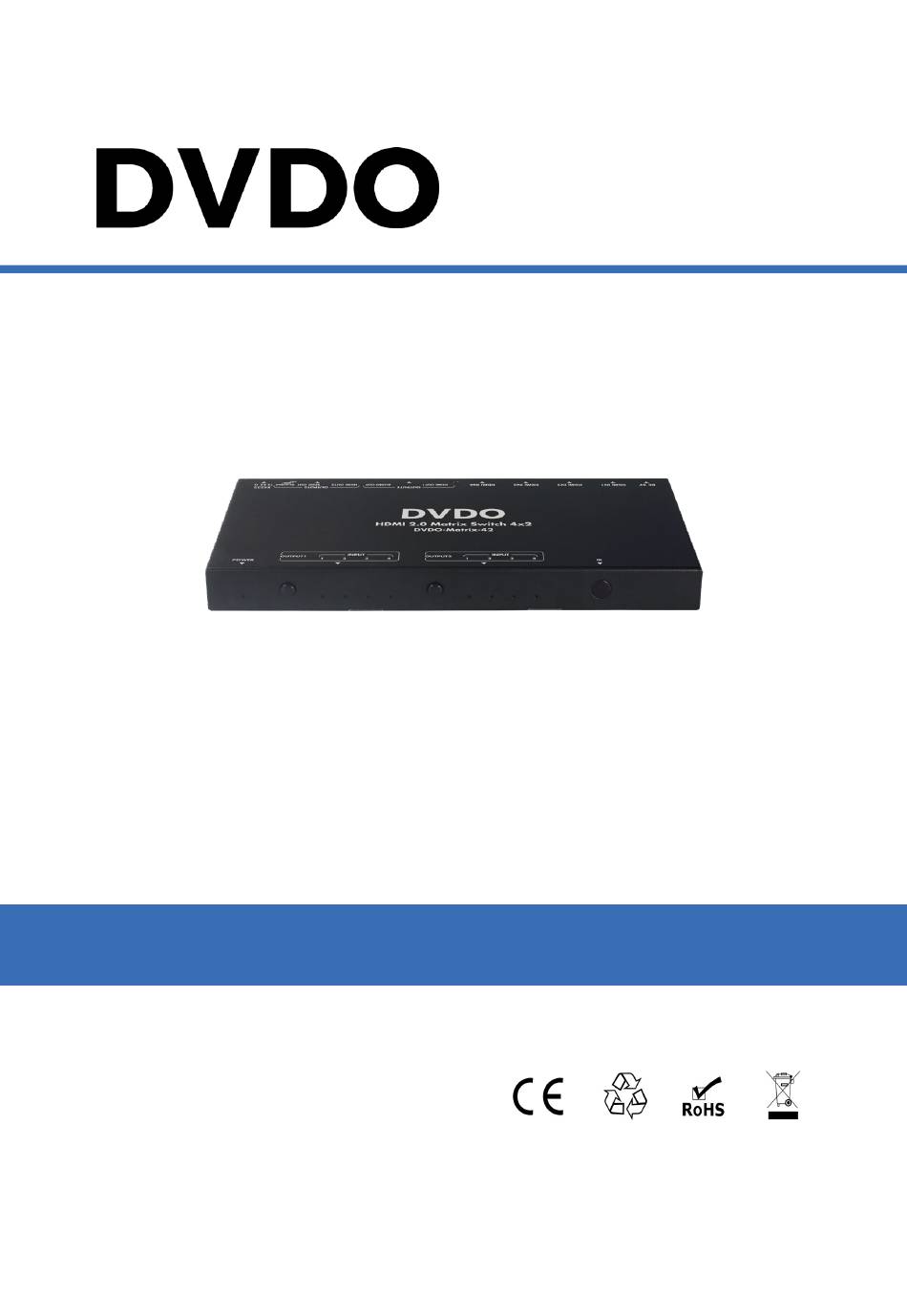

- Page 1 DVDO-Matrix-42 4 x 2 4K HDMI Matrix Switcher User Manual Version: V1.0.0...
- Page 2 DVDO DVDO-Matrix-42 4 x 2 4K HDMI Matrix Switcher User Manual Important Safety Instructions 1. Do not expose this apparatus 6. Clean this apparatus to rain, moisture, dripping or only with dry cloth. splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
-
Page 3: Table Of Contents
DVDO DVDO-Matrix-42 4 x 2 4K HDMI Matrix Switcher User Manual Table of Contents Introduction ...................... 4 Overview ....................4 Features ....................4 Package Contents ..................5 Specifications ................... 6 Panel Description ..................8 Installation and Wiring ................... 10 Installation ....................10 Wiring ..................... -
Page 4: Introduction

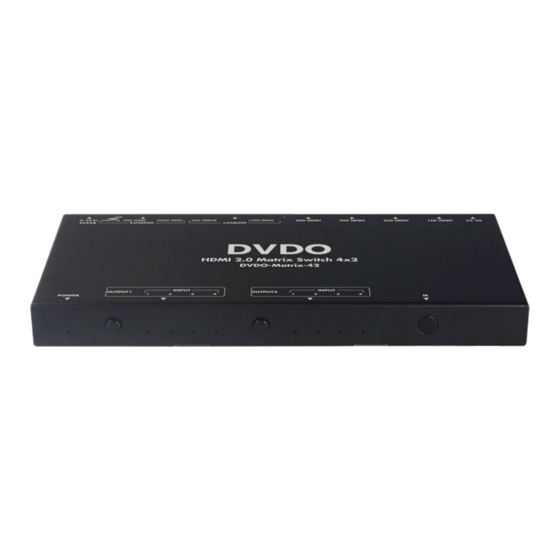

DVDO-Matrix-42 4 x 2 4K HDMI Matrix Switcher User Manual Introduction Overview DVDO-Matrix-42 is a 4x2 HDMI matrix switcher with HDCP 2.2 compatibility, it allows up to four Ultra HD 4K sources to be independently routed to two Ultra HD displays. -
Page 5: Package Contents
DVDO DVDO-Matrix-42 4 x 2 4K HDMI Matrix Switcher User Manual Package Contents Before you start the installation of the product, please check the package contents: DVDO-Matrix-42 x 1 DC 5V 1A Power Adapter (with US, UK, EU, AU Pins) x 1 ... -
Page 6: Specifications
DVDO DVDO-Matrix-42 4 x 2 4K HDMI Matrix Switcher User Manual Specifications Technical Input 4 x HDMI IN (Type-A female connector) Output 2 x HDMI OUT (Type-A female connector) HDMI with 4K@60 4:4:4, HDR 10, HLG & Video Signal Type Dolby Vision, HDCP 2.2... - Page 7 DVDO DVDO-Matrix-42 4 x 2 4K HDMI Matrix Switcher User Manual General Operating Temperature 0°C to 45°C (32°F to 113°F) Storage Temperature -20°C to 70°C (-4°F to 158°F) Humidity 10% to 90%, non-condensing Human-body Model: ESD Protection ±8kV (Air-gap discharge)/ ±4kV (Contact discharge)
-
Page 8: Panel Description
DVDO DVDO-Matrix-42 4 x 2 4K HDMI Matrix Switcher User Manual Panel Description Front Panel Name Description On: The device is powered on. POWER LED Off: The device is powered off. OUTPUT1 Switch Click to select input source for OUTPUT1. - Page 9 DVDO DVDO-Matrix-42 4 x 2 4K HDMI Matrix Switcher User Manual Name Description Connect to audio device such as Amplifier for AUDIO OUT analog de-embedded audio output from HDMI OUT1. Connect to audio devices such as AV system for digital de-embedded audio output from HDMI...
-
Page 10: Installation And Wiring
DVDO DVDO-Matrix-42 4 x 2 4K HDMI Matrix Switcher User Manual Installation and Wiring Installation Note: Before installation, please ensure the device is disconnected from the power source. Steps to install the device in a suitable location: Attach the installation bracket to the enclosure using the screws provided in the package separately. - Page 11 DVDO DVDO-Matrix-42 4 x 2 4K HDMI Matrix Switcher User Manual Laptop Laptop Blu-ray Player 4K Media Player HDMI IN HDMI IN HDMI IN RS232 HDMI IN AUDIO OUT HDMI ARC OUT SPDIF OUT AV Receive r AV Receive r...
-
Page 12: Ir Remote Control
DVDO DVDO-Matrix-42 4 x 2 4K HDMI Matrix Switcher User Manual IR Remote Control The included remote-control handset can be used to turn on and off a CEC-enabled display device and to switch the HDMI source for each display device. -
Page 13: Rs232 Control
DVDO DVDO-Matrix-42 4 x 2 4K HDMI Matrix Switcher User Manual RS232 Control Advanced users may need to control the matrix through RS232 serial communication. Connect a control PC or control system to the RS232 port of the switcher. A professional RS232 serial interface software (e.g. Serial Assist) may be needed as well. -
Page 14: Warranty Terms And Conditions
DVDO DVDO-Matrix-42 4 x 2 4K HDMI Matrix Switcher User Manual Warranty Terms and Conditions For the following cases we shall charge for the service(s) claimed for the products if the product is still remediable and the warranty card becomes unenforceable or inapplicable.
