DVDO Matrix6 User Manual

6x2 4k ultra hd hdmi matrix switcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

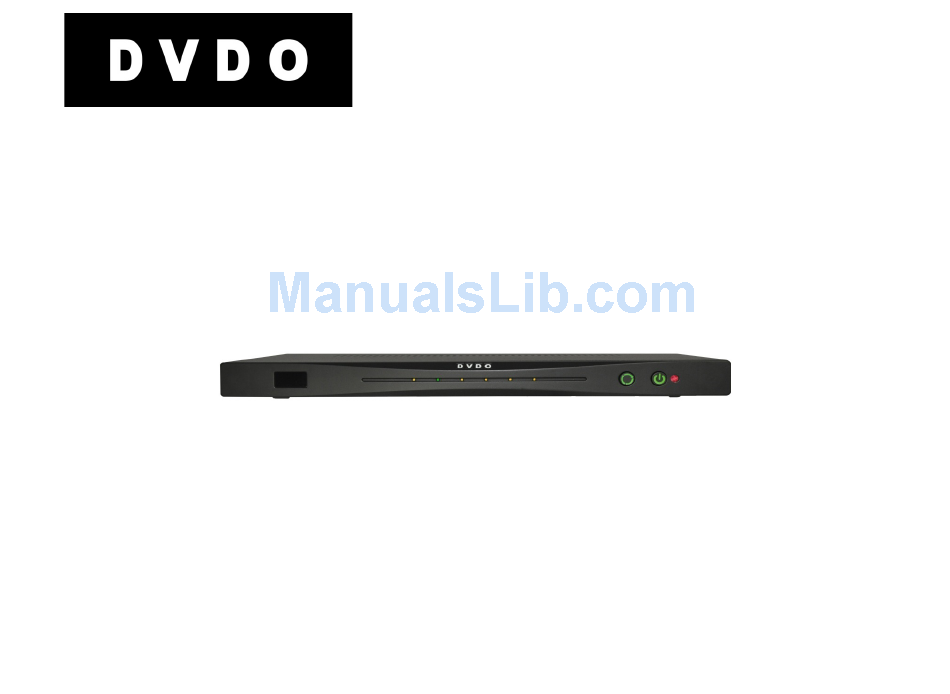

6
DVDO Matrix
TM
6x2 4K Ultra HD HDMI Matrix Switcher
User's Guide
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Matrix6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DVDO Matrix6

Summary of Contents for DVDO Matrix6

  • Page 1 DVDO Matrix 6x2 4K Ultra HD HDMI Matrix Switcher User’s Guide Version 1.0...
  • Page 2 • Do not use near heat sources such as room heaters, hot A/V equipment • Read all warnings • Use only accessories approved by DVDO including mounting brackets • Unplug the device during lightning storms or when unused for long periods of time •...

  • Page 3: Table Of Contents

    DVDO Matrix 6x2 4K Ultra HD HDMI Matrix Switcher Contents Overview ......................... 4 Key features ......................... 4 In the Box ........................4 Input/Output ........................5 Front Panel ........................5 Back Panel ........................5 Connections ........................6 Matrix Modes........................7 Compatibility mode: ...................... 8 Performance mode: ......................

  • Page 4: Overview

    6x2 4K Ultra HD HDMI Matrix Switcher Overview Matrix is DVDO’s latest HDMI Matrix switcher for home entertainment and theater applications. It is ideal ™ for installations requiring a single set of sources that drive two displays independently. Typical applications include: adding a TV to an adjacent room, adding a projector to a home theater, adding a second TV for sports viewing, adding a TV to a kitchen or patio.

  • Page 5: Input/Output

    DVDO Matrix 6x2 4K Ultra HD HDMI Matrix Switcher Input/Output Front Panel 1. IR window – remote control receiver 2. Input indicators (Off = no connection, Amber = HDMI connected, Green = active Zone 1 input, Yellow = active Zone 2 input) 3.

  • Page 6: Connections

    DVDO Matrix 6x2 4K Ultra HD HDMI Matrix Switcher Connections DVDO Matrix A.04...

  • Page 7: Matrix Modes

    DVDO Matrix 6x2 4K Ultra HD HDMI Matrix Switcher Matrix Modes Sharing a Blu-ray player with two TVs can be complicated. Normally, a TV reports its capability back to the source (like a Blu-ray) using a packet of information called an EDID and asks for a resolution from the source that it can handle.

  • Page 8: Compatibility Mode

    DVDO Matrix 6x2 4K Ultra HD HDMI Matrix Switcher Compatibility Mode Resolution: Compatibility mode: Use this when you have two TVs of different resolutions and always want a picture on both TVs. In this mode, Matrix takes a snapshot of each display device and determines what resolution BOTH TVs can handle.

  • Page 9: Performance Mode

    DVDO Matrix 6x2 4K Ultra HD HDMI Matrix Switcher Performance Mode Resolution Performance mode: Use this when you have two TVs of basically the same resolution capability and want the fastest and least flashing possible. In this mode, Matrix uses the capability of only the main TV and sends that capability (EDID) to all the inputs.

  • Page 10: Preset Mode(S)

    DVDO Matrix 6x2 4K Ultra HD HDMI Matrix Switcher Preset Mode Resolution Preset Mode(s): Use these modes for troubleshooting or if your TVs are not reporting the right capabilities to the switch In this mode, Matrix allows the user to choose from multiple preset audio and video resolutions. Note that if you choose a resolution that your TV is not capable of, you might lose picture altogether.

  • Page 11: Controlling The Aux Tv From Another Room

    DVDO Matrix 6x2 4K Ultra HD HDMI Matrix Switcher Controlling the Aux TV from another room The Aux TV input is controlled using either: • The same remote control supplied with the system pointed directly at Matrix • Another Matrix remote control in the room with the Aux TV using an IR repeater system •...
  • Page 12 DVDO Matrix 6x2 4K Ultra HD HDMI Matrix Switcher Audio Return Channel DVDO Matrix A.04...
  • Page 13 DVDO Matrix 6x2 4K Ultra HD HDMI Matrix Switcher Matrix has a special control mechanism to allow the user to easily switch ARC on and off; to use ARC with a Matrix system: 1. Insure that your TV is capable of ARC and that the correct TV HDMI input (usually marked ARC) is connected to the Matrix MAIN HDMI output.

  • Page 14: Remote Control

    DVDO Matrix 6x2 4K Ultra HD HDMI Matrix Switcher Remote Control Power and Standby/Off buttons are discrete functions and can be learned into any universal remote. ZONE1 INPUT(s): Directly switches the input for the main TV ZONE2 INPUT(s): Directly switches the input for the aux TV...

  • Page 15: On-Screen Display Menu System

    DVDO Matrix 6x2 4K Ultra HD HDMI Matrix Switcher On-Screen Display Menu System Pressing MENU on the remote control brings up the main menu, shown below. Asterisks (*) in the descriptions indicate the factory default settings. Main menu provides access to system settings.
  • Page 16 DVDO Matrix 6x2 4K Ultra HD HDMI Matrix Switcher Matrix Mode: Sets switching performance based on TV capabilities *Compatibility Mode: Use for maximum compatibility when the TVs do not have the same capabilities. Performance Mode: Use to minimize flashing and improve performance if both TVs have the same capabilities.
  • Page 17 DVDO Matrix 6x2 4K Ultra HD HDMI Matrix Switcher The Information screen displays critical switch settings as well as audio and video information about the current active input. CEC Enable: If checked, Matrix will respond to CEC commands i.e. power on/off.

  • Page 18: Updating Firmware

    • Firmware version 0101 (filename M6FW0101.BIN) displays as 01.01 on the information screen Two files are required to update the Matrix firmware (both available from DVDO.com as new firmware is released), a .BIN file which contains the actual firmware binary and an .OSD file which contains the fonts, text, and graphics for the OSD.

  • Page 19: To Upgrade Firmware Using The Firmware Update Button

    DVDO Matrix 6x2 4K Ultra HD HDMI Matrix Switcher 6. If you choose to also reset settings to factory defaults, select Factory Settings and confirm by pressing ENTER again. Always allow 30 seconds for reset to complete and then power cycle...

  • Page 20: Serial Control

    DVDO Matrix 6x2 4K Ultra HD HDMI Matrix Switcher • If all front panel lights flash when powering up the unit, you have inadvertentaly loaded the incorrect firmware (for instance attempting to load Quick6 firmware) Serial Control The serial port allows an external home automation system to control Matrix .
  • Page 21 • When updating with the firmware Update button, unplug all HDMI connections from Matrix6. Remove power from Matrix . Hold firmware update button and apply power., Matrix...
  • Page 22 DVDO Matrix 6x2 4K Ultra HD HDMI Matrix Switcher resetting to defaults, 2. Press ENTER again to confirm and start the reset Defaults not saved 3. Wait 30 seconds properly 4. Power Matrix down and then back up Audio Return...
  • Page 23 When updating with the firmware Update button, unplug all HDMI connections from power up properly, Matrix6. Remove power from Matrix . Hold firmware update button and apply power., or will not upgrade MatrixOn first use, unplug all HDMI connections from Matrix...

  • Page 24: Specifications

    DVDO Matrix 6x2 4K Ultra HD HDMI Matrix Switcher Specifications Six 300 MHz (4K Ultra HD) HDMI inputs and two HDMI/MHL combo inputs S/PDIF coax and optical outputs Two 300MHz (4K Ultra HD) HDMI outputs HDMI certification including CEC and ARC...

  • Page 25: Fcc Interference And Compliance Statement

    DVDO Matrix 6x2 4K Ultra HD HDMI Matrix Switcher FCC Interference and Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2.

  • Page 26: Warranty

    General Warranty Terms DVDO, Inc., (DVDO), offers a limited warranty for its DVDO products. Any product first sold to you is guaranteed to be free from defects in both components and workmanship under regular uses. The warranty period commences on the date the item ships.
  • Page 27 DVDO; (d) If DVDO determines that any returned Product is not defective, or if DVDO determines that the defect is not covered by the warranty, DVDO will return the Product to the Owner at Owner’s expense, freight collect, and Owner agrees to pay DVDO’s reasonable cost of handling and testing;...

  • Page 28: Getting Help

    IMPLIED WARRANTY OF MERCHANTABILITY, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND OF ALL OTHER OBLIGATIONS OR LIABILITIES ON DVDO’S PART, AND IT NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PARTY TO ASSUME FOR DVDO ANY OTHER LIABILITIES. THE FOREGOING CONSTITUTES THE BUYER’S SOLE AND...

  • Page 29: Legal Notices

    Legal notices ® DVDO and Matrix6™ Logos are trademarks or registered trademarks of Silicon Image, Inc. in the United States or other ® countries. HDMI and the HDMI logo with High-Definition Multimedia Interface are trademarks or registered trademarks of, and ®...
