Summary of Contents for DVDO DVDO-Matrix-44-Mini
- Page 1 DVDO-Matrix-44-Mini 4x4 HDMI Matrix with Audio Outputs User Manual Version: V1.0.0...
- Page 2 DVDO DVDO-Matrix-44-Mini 4x4 HDMI Matrix with Audio Outputs User Manual Important Safety Instructions 1. Do not expose this apparatus 6. Clean this apparatus to rain, moisture, dripping or only with dry cloth. splashing. Do not place objects filled with liquids, such as vases, on the apparatus.
-
Page 3: Table Of Contents
DVDO DVDO-Matrix-44-Mini 4x4 HDMI Matrix with Audio Outputs User Manual Table of Contents Introduction ...................... 4 Overview ....................4 Features ....................4 Package Contents ..................5 Specifications ................... 5 Panel Description ..................7 Installation and Wiring ..................9 Installation ..................9 Wiring .................... -
Page 4: Introduction

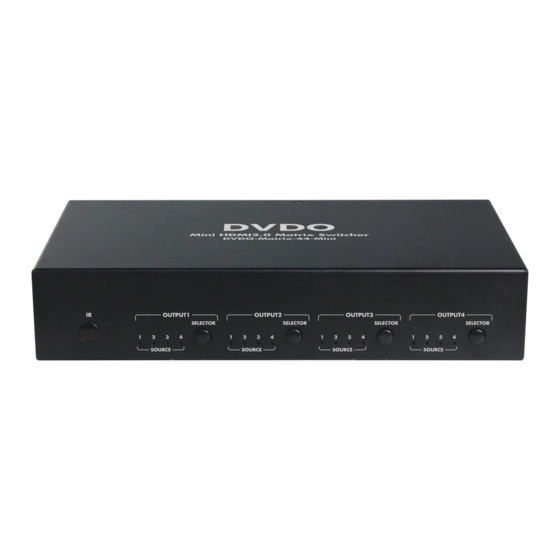

DVDO-Matrix-44-Mini 4x4 HDMI Matrix with Audio Outputs User Manual Introduction Overview The DVDO-Matrix-44-Mini is a 4x4 compact HDMI matrix switcher. In addition to basic functions such as cross-point switching and control (IR, RS-232, IP), it also features advanced functions like auto-downscaling for each HDMI output when it is connected to a 1080p display. -
Page 5: Package Contents
DVDO DVDO-Matrix-44-Mini 4x4 HDMI Matrix with Audio Outputs User Manual Package Contents Before you start the installation of the product, please check the package contents as below: DVDO-Matrix-44-Mini Matrix x 1 DC 12V 2A Power Adapter (with US, UK, EU, AU Pins) x 1 ... - Page 6 DVDO DVDO-Matrix-44-Mini 4x4 HDMI Matrix with Audio Outputs User Manual General Operating 0°C to 45°C (32°F to 113°F) Temperature Storage -20°C to 70°C (-4°F to 158°F) Temperature Humidity 10% to 90%, non-condensing Human-body Model: ESD Protection ±8kV (Air-gap discharge)/ ±4kV (Contact discharge)
-
Page 7: Panel Description
DVDO DVDO-Matrix-44-Mini 4x4 HDMI Matrix with Audio Outputs User Manual Panel Description Front Panel Name Description IR Window Receive IR signals. INPUT LED On: The current HDMI input is selected. (1-4) Off: The current HDMI input is not selected. OUTPUT Click to select input source for OUTPUT (1-4). - Page 8 DVDO DVDO-Matrix-44-Mini 4x4 HDMI Matrix with Audio Outputs User Manual Name Description For firmware upgrade. Connect to a control PC or control system for RS-232 RS232 serial control. Connect to local area network or a control system IP CONTROL for telnet or Web UI control.
-
Page 9: Installation And Wiring
DVDO DVDO-Matrix-44-Mini 4x4 HDMI Matrix with Audio Outputs User Manual Installation and Wiring Installation Note: Before installation, please ensure the device is disconnected from the power source. Steps to install the matrix on a suitable location: Attach the installation bracket to the enclosure using the screws provided in the package separately. - Page 10 DVDO DVDO-Matrix-44-Mini 4x4 HDMI Matrix with Audio Outputs User Manual Connect for additional control options: RS232 control: Connect a control PC or control system to RS232 port of the Matrix. IR control: The matrix can be controlled through IR signal by pointing the IR remote provided at front panel IR window directly.
-
Page 11: Ir Remote Control
DVDO DVDO-Matrix-44-Mini 4x4 HDMI Matrix with Audio Outputs User Manual IR Remote Control You can switch among multiple inputs for each output display by pointing the matrix IR remote directly at the IR window on the front panel or the IR receiver connected to the rear panel. - Page 12 DVDO DVDO-Matrix-44-Mini 4x4 HDMI Matrix with Audio Outputs User Manual Select previous input Select next input for Output 1 for Output 1 Output 1 Select specific input for Output 1 To cycle through multiple inputs for your target output, press the previous ) or next ( ) button.
-
Page 13: Access The Web Interface
DVDO DVDO-Matrix-44-Mini 4x4 HDMI Matrix with Audio Outputs User Manual Before executing the API command through RS232 serial connection, please ensure RS232 interface of the device and the control PC are configured correctly. Parameters Value Baud Rate 115200 bps Data Bits... -
Page 14: Web Interface Introduction
DVDO DVDO-Matrix-44-Mini 4x4 HDMI Matrix with Audio Outputs User Manual Web Interface Introduction The main screen includes General and Advanced Setting. General The General Page includes: Switch, EDID, EDID Read, CEC, Audio Mute, HDCP, Preset. (1) Switch The Switch section manages distribution of input sources to output displays. - Page 15 DVDO DVDO-Matrix-44-Mini 4x4 HDMI Matrix with Audio Outputs User Manual (2) EDID This section allows you to configure EDID settings of each input port. Select the item from the drop-down menu, then click “Apply” to take effect. Note: If EDID copy fails, the input EDID will be 4K@30Hz 2.0ch audio.
- Page 16 DVDO DVDO-Matrix-44-Mini 4x4 HDMI Matrix with Audio Outputs User Manual Select Port: Click from the drop-down menu to choose an Output port (1-4) for EDID setting. Read: Click to read the EDID of the Output port you choose. Write: Click to write the EDID of the Output port you choose to corresponding Input.
-
Page 17: Advanced
DVDO DVDO-Matrix-44-Mini 4x4 HDMI Matrix with Audio Outputs User Manual (5) Audio Mute This section allows you to set Audio output (1-4) mute/unmute. The default setting is unmute. Note: The SPDIF OUT 1-4 is following the audio output of HDMI OUT. - Page 18 DVDO DVDO-Matrix-44-Mini 4x4 HDMI Matrix with Audio Outputs User Manual Network Network is used to toggle between the dynamic and static IP addressing. DHCP: When enabled, the IP address of the Matrix is assigned automatically by the DHCP server connected.
- Page 19 DVDO DVDO-Matrix-44-Mini 4x4 HDMI Matrix with Audio Outputs User Manual Custom Web UI Logo Custom Web UI Logo allows you to create your own logo for the Web UI you are using. To create customized Web UI logo: Click “Browse” button to browse the LOGO file.
- Page 20 DVDO DVDO-Matrix-44-Mini 4x4 HDMI Matrix with Audio Outputs User Manual Note: Do not power off the device when upgrading. MCU Firmware Upgrade Click “Browse” for the update bin file. Click "Upgrade" to start the MCU Firmware upgrade. The matrix will upgrade and reboot automatically when upgrading MCU is completed.
- Page 21 DVDO DVDO-Matrix-44-Mini 4x4 HDMI Matrix with Audio Outputs User Manual Note: Please wait about 30 seconds to re-access Web UI by refreshing the browser. To reboot the device: Click the “Reboot” icon, the following window will be popped up, click “Ok” to reboot the device.
- Page 22 DVDO DVDO-Matrix-44-Mini 4x4 HDMI Matrix with Audio Outputs User Manual Firmware Version This section allows you to obtain information of the current firmware in use. DVDO-Matrix-44-Mini_V1.0.0...
-
Page 23: Warranty Terms And Conditions
DVDO DVDO-Matrix-44-Mini 4x4 HDMI Matrix with Audio Outputs User Manual Warranty Terms and Conditions For the following cases we shall charge for the service(s) claimed for the products if the product is still repairable and the warranty becomes unenforceable or inapplicable.
